Installing The Wireless Controller - Lutron Electronics AuroRa AR-ENT-2S3D Series Package Installation Manual

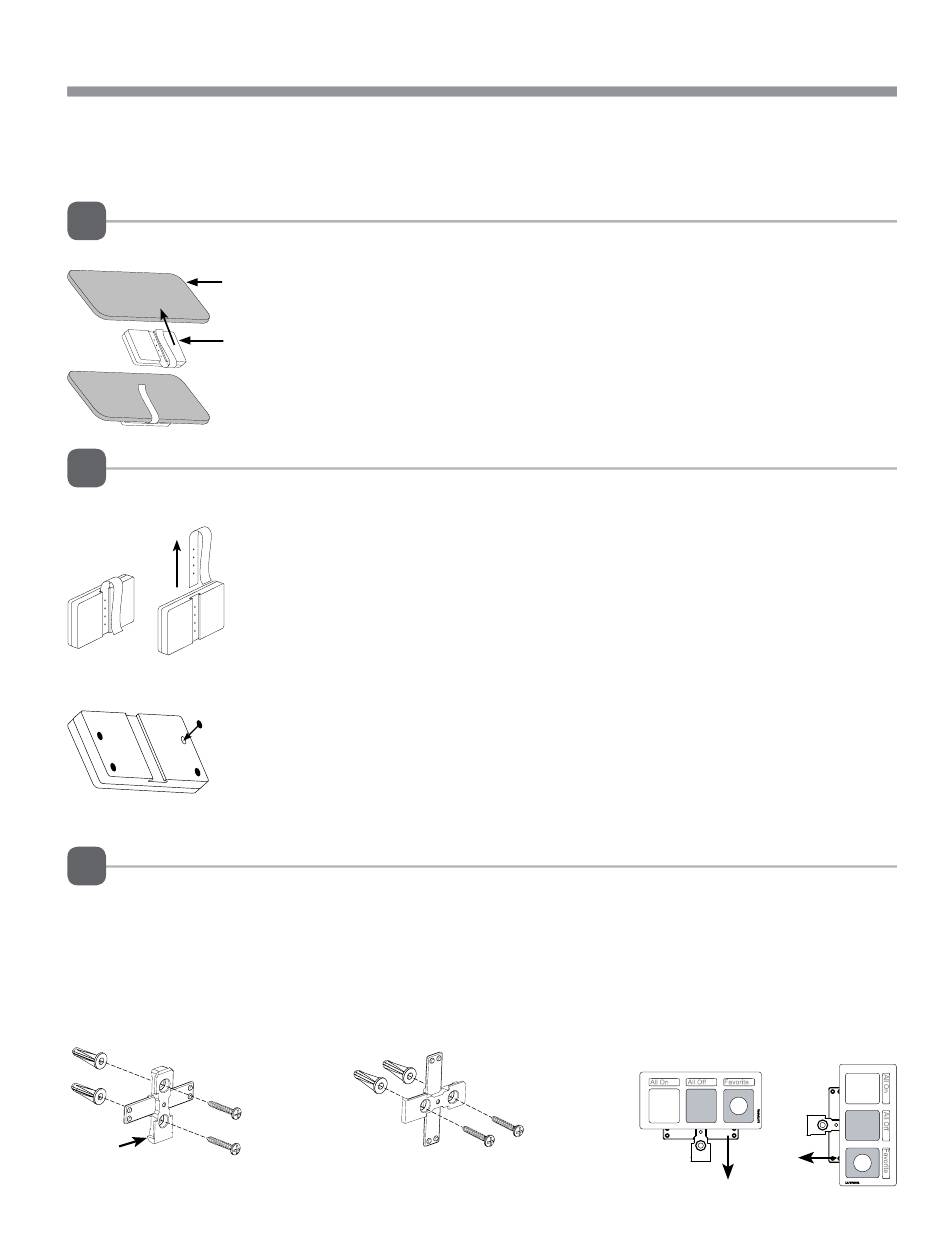

installing the wireless controller

The wireless controller
may be mounted in a variety
of ways:
1
Visor mount
Wireless
Controller
2
Preparation for tabletop use
Visor Clip
Wireless Controller
Wireless Controller (back side)
3
Preparation for wall mounting
A. Attach wall bracket to wall using the supplied screws and wall
anchors. When mounting the Wireless Controller horizontally,
make sure that the end stop is at the bottom. NOTE: Drill pilot
holes for the wall anchors using a 3/16" drill bit.
Horizontal mounting
End
stop
|
Lutron 16 Need help? Contact Lutron Technical Support 24/7: 800.523.9466
1. On a vehicle's visor using the supplied visor clip
2. Placed on a table using the rubber footpads
3. Mounted on a wall using the wall bracket
A. Mount wireless controller onto vehicle's visor. Visor
clip may need to be manually opened depending on
Visor
visor thickness.
A. Remove visor clip from wireless controller by sliding
visor clip out of the channel on the back of the unit.
B. Peel and stick footpads
For tabletop use, attach footpads to wireless controller.
Peel the footpads from the paper backing and place
in the four circular indentions on the back of the
wireless controller.
Vertical mounting
OR
B. Slide wireless controller onto
wall bracket. The clip on the wall
bracket slides into the channel on
the back of the wireless controller.
Horizontal
OR
mounting
Vertical
mounting
