Wiring Diagrams - Lutron Electronics AuroRa AR-ENT-2S3D Series Package Installation Manual

wiring diagrams

Dimmers
1.
WARNING
To avoid risk of fire or equipment dammage,
use dimmers with 120 V~ incandescent
lighting fixtures only. Do not use with
low-voltage transformers.
2.
CAUTION
To avoid overheating and possible burn, the
total wattage of all light bulbs controlled by each
dimmer must be between 50 and 600 W (450 VA).

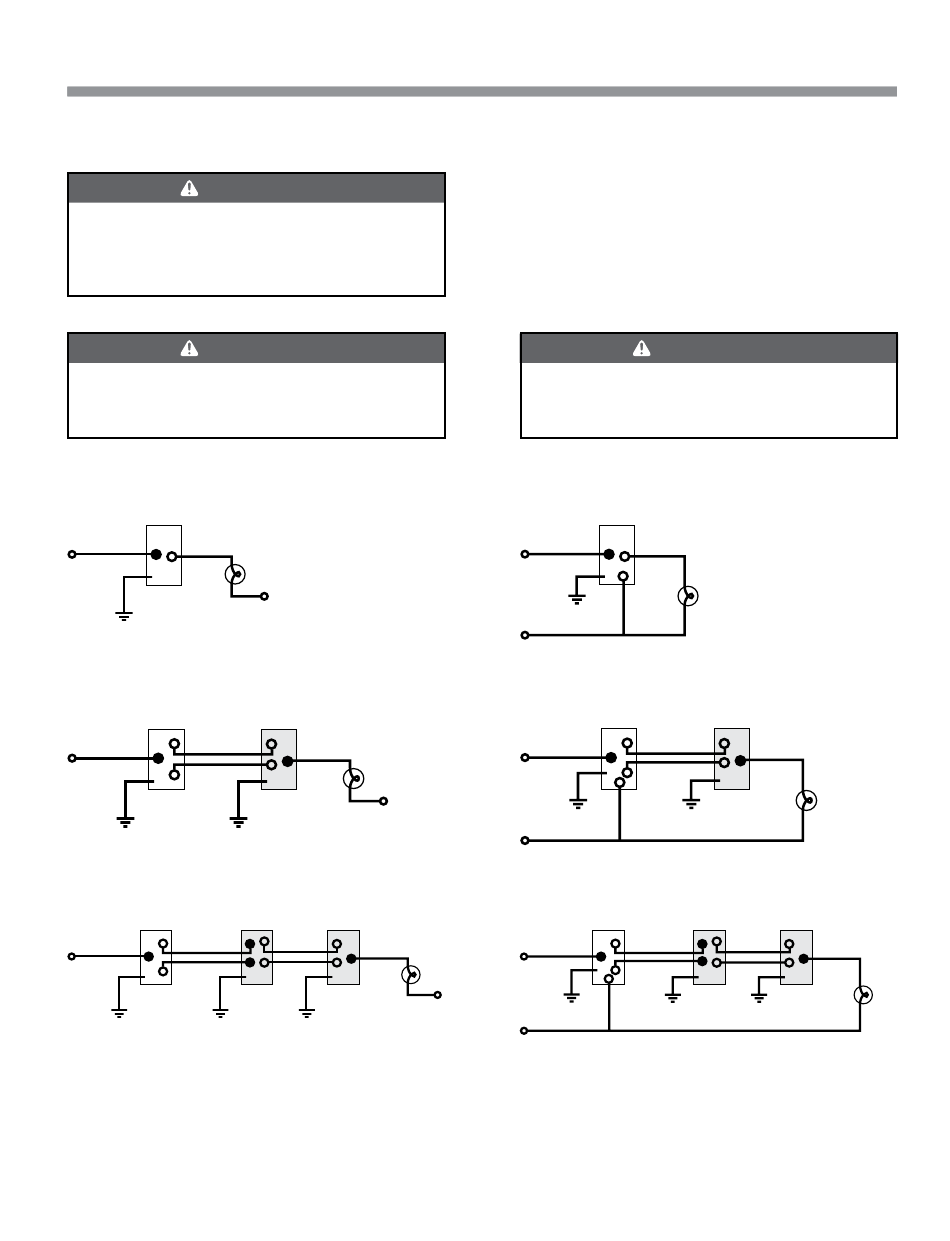

3A. Single-pole circuit
AuroRa
Dimmer
Hot
120 V~
Light
60Hz
Ground
3B. Three-way circuit
AuroRa
Dimmer
Hot
120 V~
60Hz
Ground Ground
3C. Four-way circuit
AuroRa
*
Dimmer
Hot
120 V~
60Hz
Ground Ground
* AuroRa Dimmers and Switches can be installed on line or load side only.
AuroRa Dimmers and Switches can not be installed in the middle (four-way) location.
Neutral
3-way
Switch
Light
Neutral
4-way 3-way
Switch Switch
Light
Ground
Need help? Contact Lutron Technical Support 24/7: 800.523.9466
Switches
1. Switches are UL listed for use with all incandescent,
halogen, magnetic low-voltage, electronic low-
voltage, magnetic fluorescent and electronic
fluorescent ballasts.
2.
To avoid overheating and possible burn,
the total load on an AuroRa
between 10 W (0.08 A) and 600 W (5 A).
3A. Single-pole circuit
Hot
120 V~
60Hz
Ground
Neutral
3B. Three-way circuit
Hot
120 V~
60Hz
Ground
Neutral
3C. Four-way circuit
Hot
120 V~
60Hz
Neutral
Ground
Neutral
CAUTION
switch should be
®
AuroRa
Switch
Light
AuroRa
3-way
Switch Switch
Light
Ground
AuroRa
4-way
*
Switch Switch
Ground Ground
3-way
Switch
Light
|
