setting up the central antenna

1

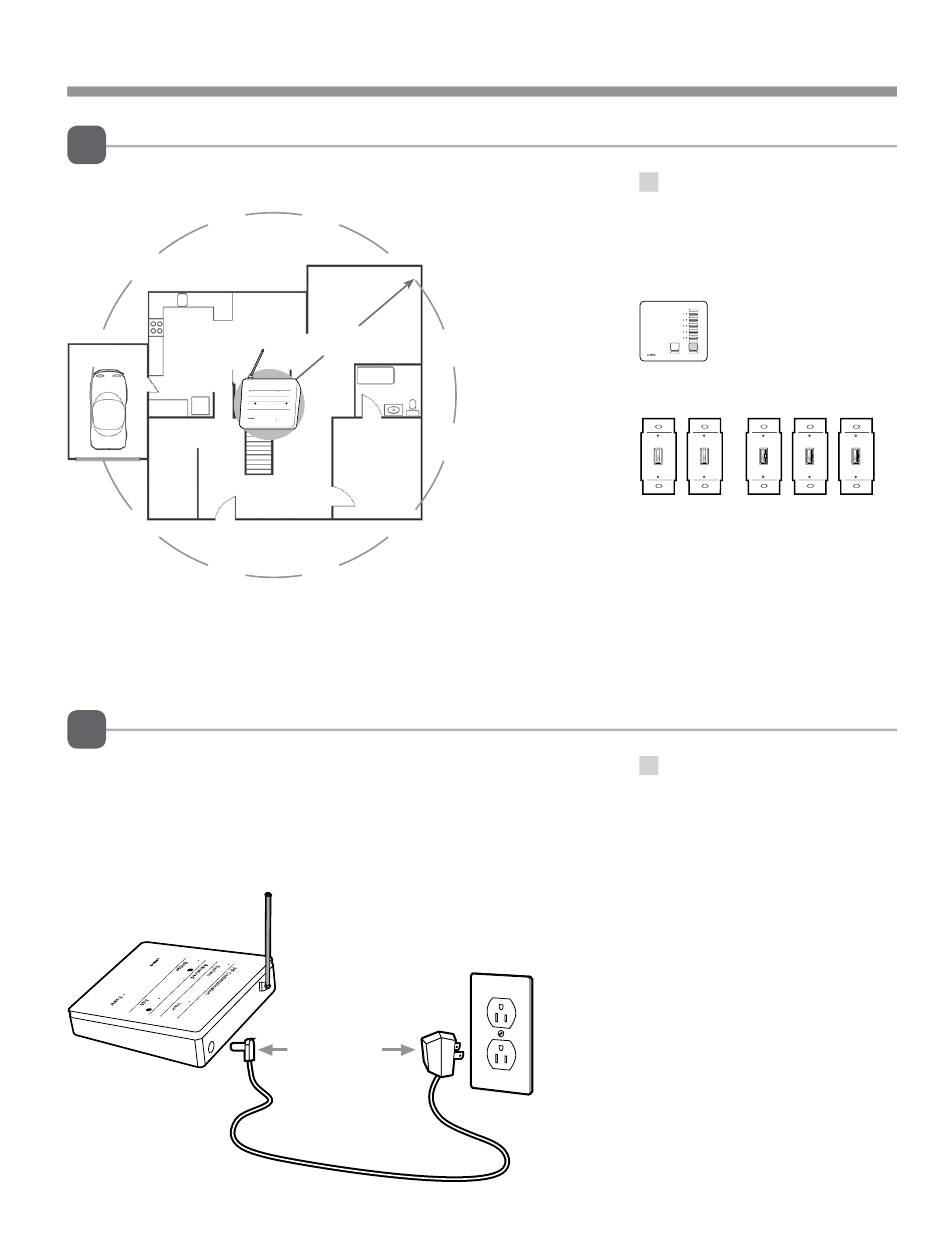

Find the approximate center of your system
Central Antenna
2
Plug in the central antenna
The central antenna plugs in to a standard wall outlet and
should be placed centrally in the home to ensure the best
Radio Frequency coverage.
Central Antenna
Need help? Contact Lutron Technical Support 24/7: 800.523.9466
(30 ft.)
RF Communication
System Visor
Advanced
Bridge Add
Power
✓ Helpful Hint:
The central antenna
works best within 30 ft.
of your master control
and dimmers/switches.
Rooms
Entry
Kitchen
Foyer
Grge Ext
Family
All On All Off
Master Control
1 2 3 4
Switches Dimmers
✓ Helpful Hint:
Don't place your central
antenna inside a metal
container. The metal container
will block radio signals and
keep the central antenna
from working properly.
The central antenna does
not need to be placed in the
open. We recommend placing
it in a discrete location that is
out of sight.
Suggested locations:
Under a sofa
•
Under a table
•
In a closet
•
In a cabinet above microwave
•
5
|
