General Information - Lutron Electronics AuroRa AR-ENT-2S3D Series Package Installation Manual

general information

Dimmers and switches
1.
CAUTION
See Important Safety Information (p. 2).
2. Install in accordance with all national and local
electrical codes.
3. When there is no ground wire or way to connect
the wallbox, to ground within the wallbox the NEC
2005, Article 404-9 allows a dimmer /switch without a
grounding connection to be installed as a replacement
(as long as a plastic, noncombustible wallplate is
used). For this type of installation, cap or remove the
green ground wire on the dimmer / switch, and use an
appropriate wallplate (such as Lutron's Fassada
series wallplates).
4. Do not paint dimmers / switches or wallplates.
5. Cleaning Instructions: Clean with a soft, damp
cloth only. Do not use any chemical cleaners.
6. Dimmers / switches may not work with dioded light
bulbs (Sylvania Designer 16
7. Operate system in temperatures between
0 °C (32 °F) and 40 °C (104 °F).
8. Dimmer / switch may feel warm to the touch
during operation. This is normal.
9. Recommended wallbox depth is 2 1/2" minimum.
10. When combining dimmers / switches in the same
wallbox (multi-ganged), the dimmer's / switch's load
capacity must be reduced.
|
Lutron 22
or Philips PAR-16
TM

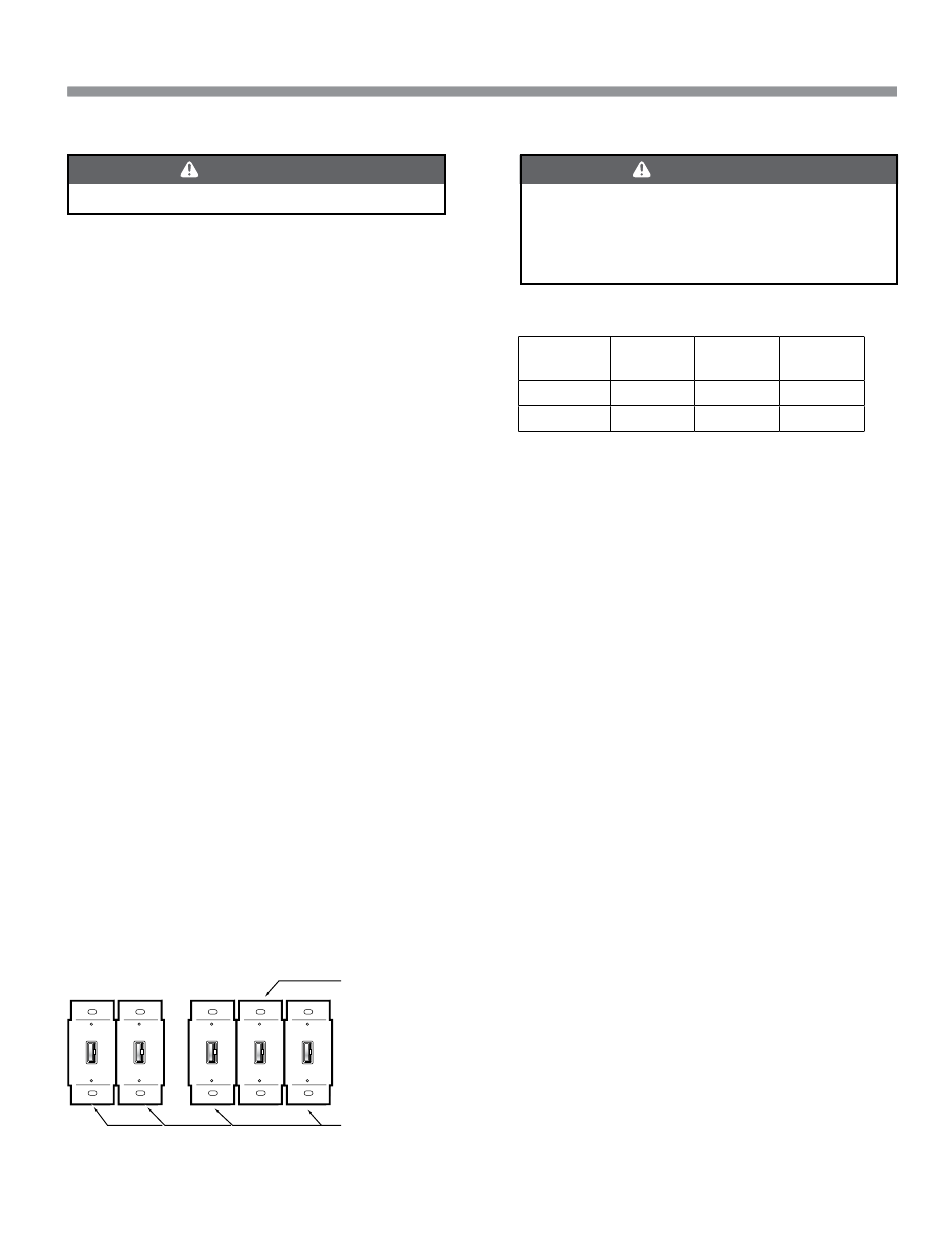

middle
of gang
end of gang
Need help? Contact Lutron Technical Support 24/7: 800.523.9466
To avoid overheating or possible damage to
dimmer / switch or other equipment follow the
load capacities in table below for multi-ganged
dimmers / switches.
Derating Chart
®
Model
AR-6D
AR-5ANS
®
11. Neutral Connections (AuroRa
only): In most but not all cases, the neutral wire
in the wallbox will be an insulated white wire.
The neutral connection is typically a bundle of
2 or more wires. The neutral wire(s) will not be
connected to the original switch. When you have
identified the neutral connection and the power is
turned off use the white wire included with your
AuroRa system to connect neutral to the silver
).
TM
screw on the AuroRa switch.
NOTE:
AuroRa dimmers do not require a
connection to neutral.
CAUTION
Not End Middle
Ganged of Gang of Gang
600 W 500 W 400 W
600 W 500 W 400 W
Switches
®
