5

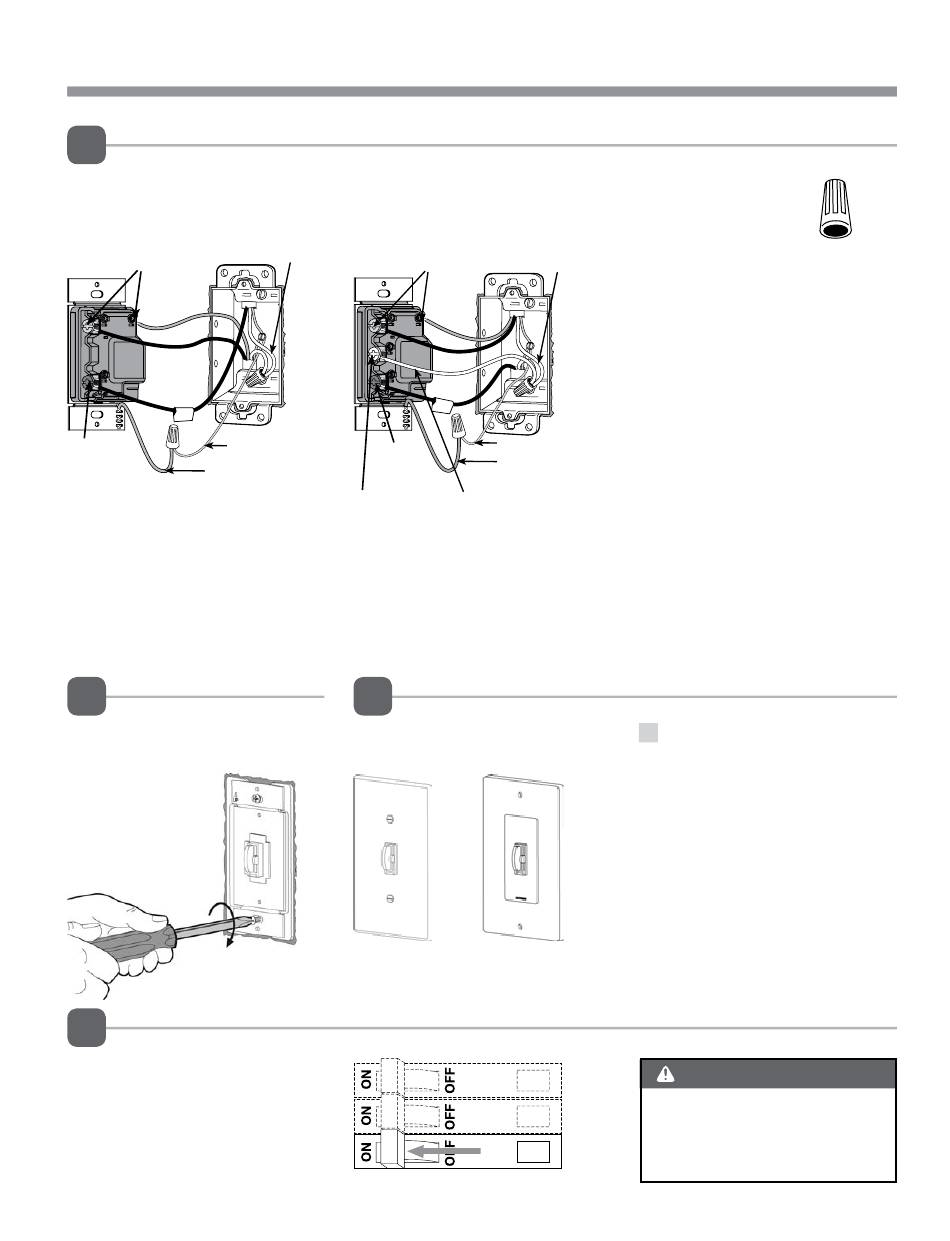

Install dimmer or switch
Dimmer
neutral wire
brass screws
ground wire
black
screw
green wire
6
Mount dimmer or switch
8
Turn power on at circuit
breaker or replace fuse
Need help? Contact Lutron Technical Support 24/7: 800.523.9466
Switch
brass screws neutral wire
ground wire
black
green wire
screw
white wire
silver screw
(provided
by Lutron)
7
Replace wallplate
OR
Traditional Designer
A. Connect the green
or bare wire (ground
wire) to the green wire
on the dimmer/switch
with a wire connector.
B. Connect the tagged wire to
the black colored screw on
the dimmer/switch.
C. Connect one of the remaining wires
to either of the gold
colored screws (brass) on
the dimmer/switch.
D. Connect the remaining wire to the
remaining gold colored screw (brass)
on the dimmer/switch.
E. For AuroRa switch connect the
®
neutral (usually white) wire to the
silver colored screw on the switch
using white wire provided by Lutron.
(see page 22 for additional info)
✓ Helpful Hint:
See page 6—installing
the designer insert if
using designer wallplate.
WARNING
To avoid fire, shock or death,
if breaker trips do not reset
breaker to "on" again until
fault has been corrected.
Wire
Connector
|
Lutron 11
