Monitoring the Device

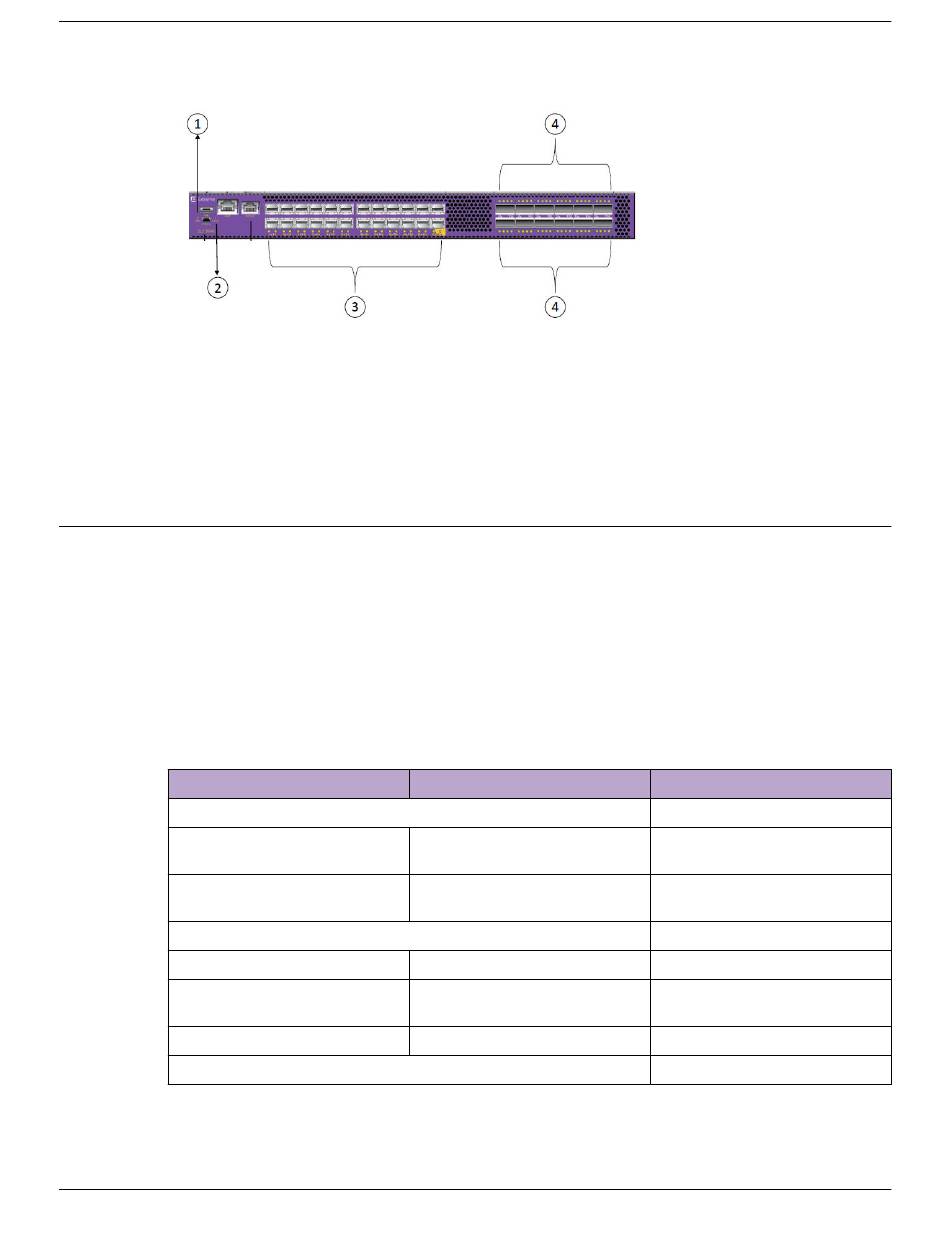

Figure 40: SLX 9640 switch router LEDs
1. Power LED
2. Status LED
3. Status Port LEDs SFP+ ports (1G/10G) ports
4. Status LEDs for QSFP ports

LED indicators

The SLX 9640 device LED indicators are as follows:
•
The Power/Status LEDs are visible to the front panel
•
The Ethernet LEDs are integrated with the RJ45 connector
•
The Power supply LEDs are integrated with the PSU
•
The 10G and 100G Port LEDs are surface mount types. They are visible to the front panel
The Table below shows the LEDs Indications on the SLX 9640 device.
Table 17: SLX 9640 device LED Indications
LED Function/state
Power
Off
Green
Status (bicolor)
Blinking Amber-Green
Amber
Green
1G Ethernet Status
Meaning
No power
Valid power. All monitored
voltages are nominal
Attention
Fault/ initial state
Board is operational
ExtremeRouting SLX 9640 Hardware Installation Guide
LED indicators
Possible cause
Some Power rails are dropping
below specification
TBD by SW
This LED shall be lit during the
reboot
