Installing the Universal Two-Post Rack Kit (XEN-
R000294)
1. Screws, 10-32 x 5/8-in., panhead Phillips
2. Retainer nuts, 10-32

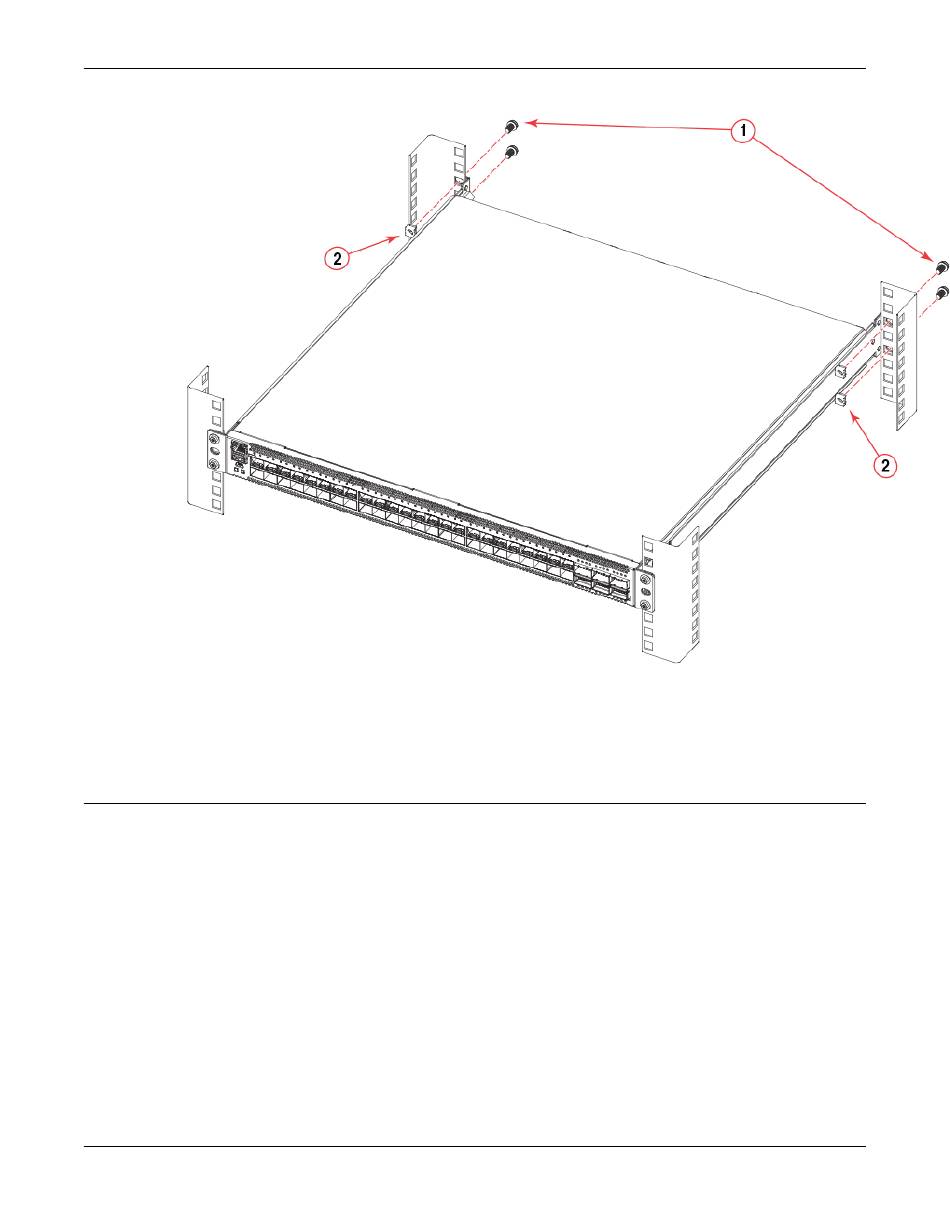

Figure 8: Attaching the rear brackets to the rack posts

Installing the Universal Two-Post Rack Kit (XEN-R000294)

Use the following instructions to install an Extreme Networks 1U or 2U device in a two-post
telecommunications (Telco) rack using the Universal Two-Post Rack Kit (XEN-R000294).
There are two ways you can mount the device in a two-post rack:
•
With the port side flush with the front posts
•
With the posts mounted to the mid-section of the device
Observe the following when mounting this device:
•
Two people are required to install the device in a rack. One person should hold the device, while the
other screws in the front and rear brackets
•
Before mounting your device, review any specific installation and facility requirements in the
Hardware Installation Guide for the device.
•
Hardware devices illustrated in these procedures are only for reference and may not depict the
device you are installing in the rack.
28 ExtremeRouting SLX 9640 Hardware Installation Guide
Mounting the Device
