Mounting the Device
5. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
a. Retainer nuts, 10-32
b. Rear brackets (right and left)
c. Screws, 10-32 x 5/8-in., panhead Phillips

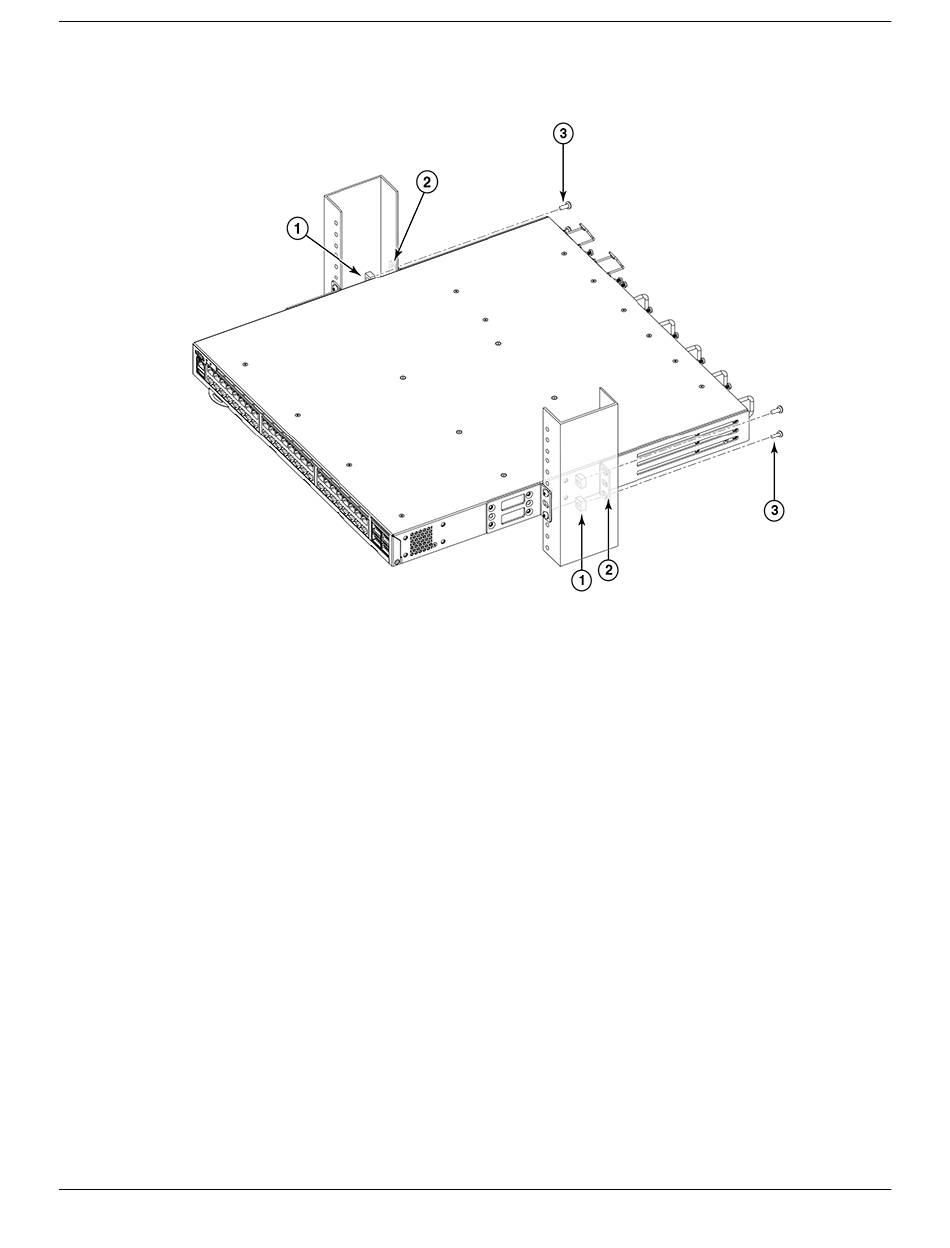

Figure 16: Attaching the rear brackets to a rack
Attaching the rear brackets to the device
Complete the following steps to attach the rear brackets to the device.
1. Align the right rear bracket to the right rear of the device and use four 8-32 x 5/16-in. panhead
screws to attach the bracket to the device, as shown in
through the upper and lower slots in the bracket.
2. Align the left rear bracket to the left rear of the device and use four 8-32 x 5/16-in. panhead screws
to attach the bracket to the device. Again, use the upper and lower slots in the bracket.
Figure
ExtremeRouting SLX 9640 Hardware Installation Guide
Mid-mounting
17. Be sure to insert the screws
