Flush-rear (recessed) mounting
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
a. Screws, 10-32 x 5/8-in., panhead Phillips
b. Retainer nuts, 10-32

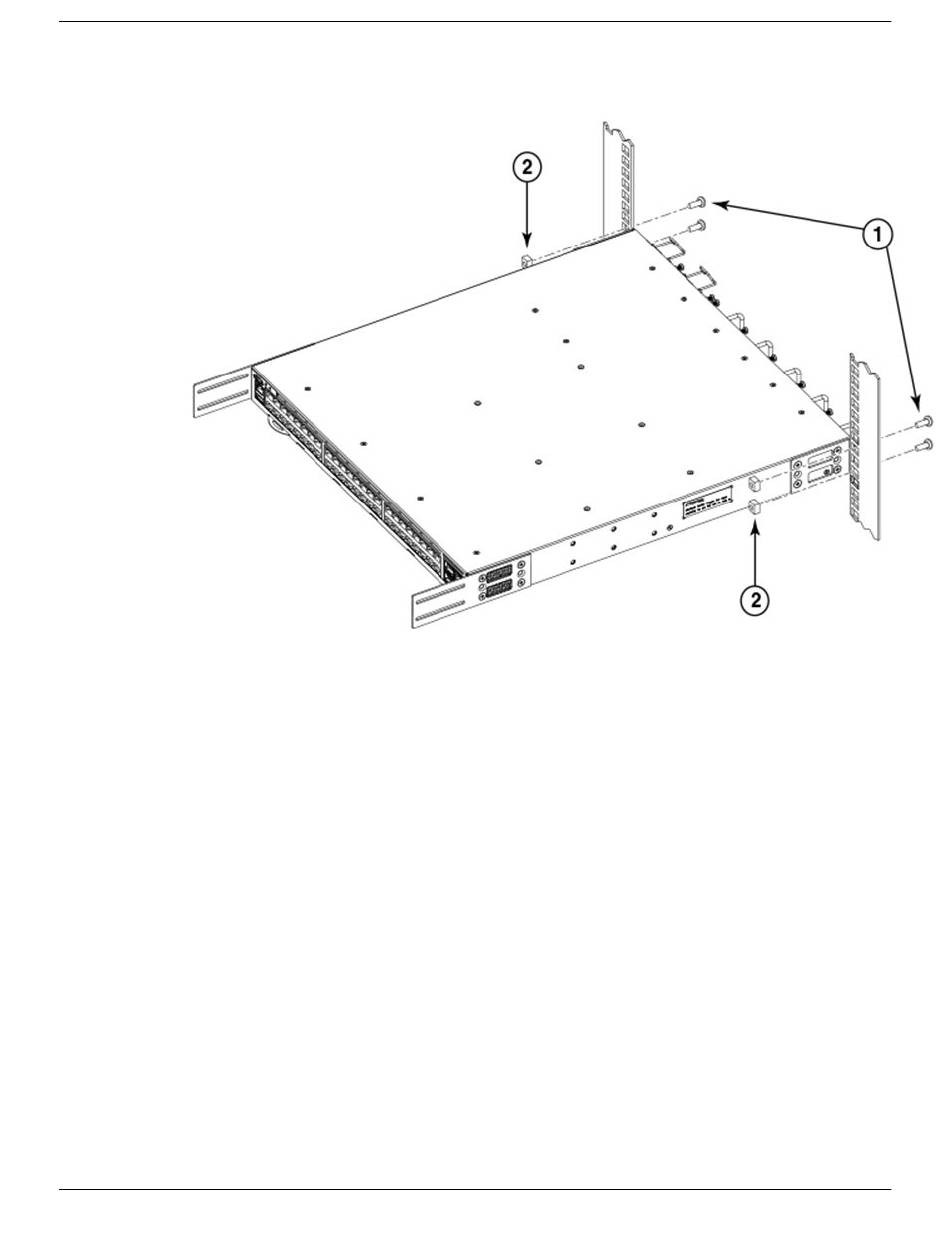

Figure 26: Positioning the device in the rack
Attaching the rear brackets to the extensions at the front of the device
Complete the following steps to attach the rear brackets to the extensions. There are short and long
front brackets that you can use for this step.
1. Select the proper length rear bracket for your rack depth.
2. Slide the right rear bracket onto the right extension.
The short rear brackets are shown in
holes for the screws.
Refer to
3. Attach the brackets using four 6-32 x 1/4-in. panhead screws.
4. Repeat step 2 and step 3 to attach the left rear bracket to the left extension.
50 ExtremeRouting SLX 9640 Hardware Installation Guide
Figure 28 on page 52 for the positioning of the short or long brackets and screws.
Figure 27 on page 51. Use the first and third vertical pairs of
Mounting the Device
