Mounting the Device
Flush-rear (recessed) mounting
3. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lb (29 cm-kg).
a. Screws, 10-32 x 5/8-in., panhead Phillips
b. Retainer nuts, 10-32

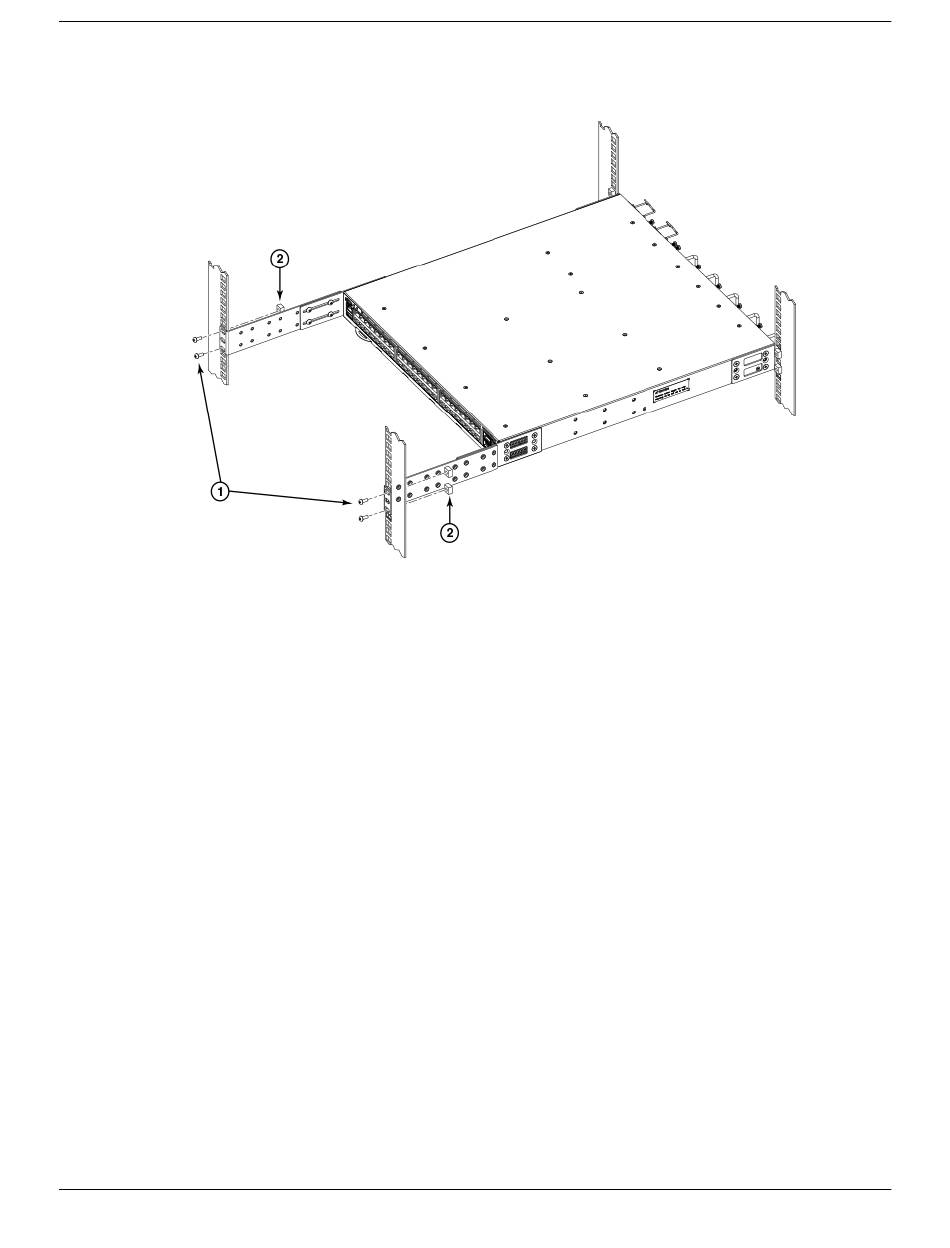

Figure 29: Attaching the rear brackets to the front rack posts
ExtremeRouting SLX 9640 Hardware Installation Guide
53
