8.1.6.2 HDD RAID Mode Settings
1.
Set the SATA Mode Option to [RAID], press F10 to save the setting, and the system reboots.
2.

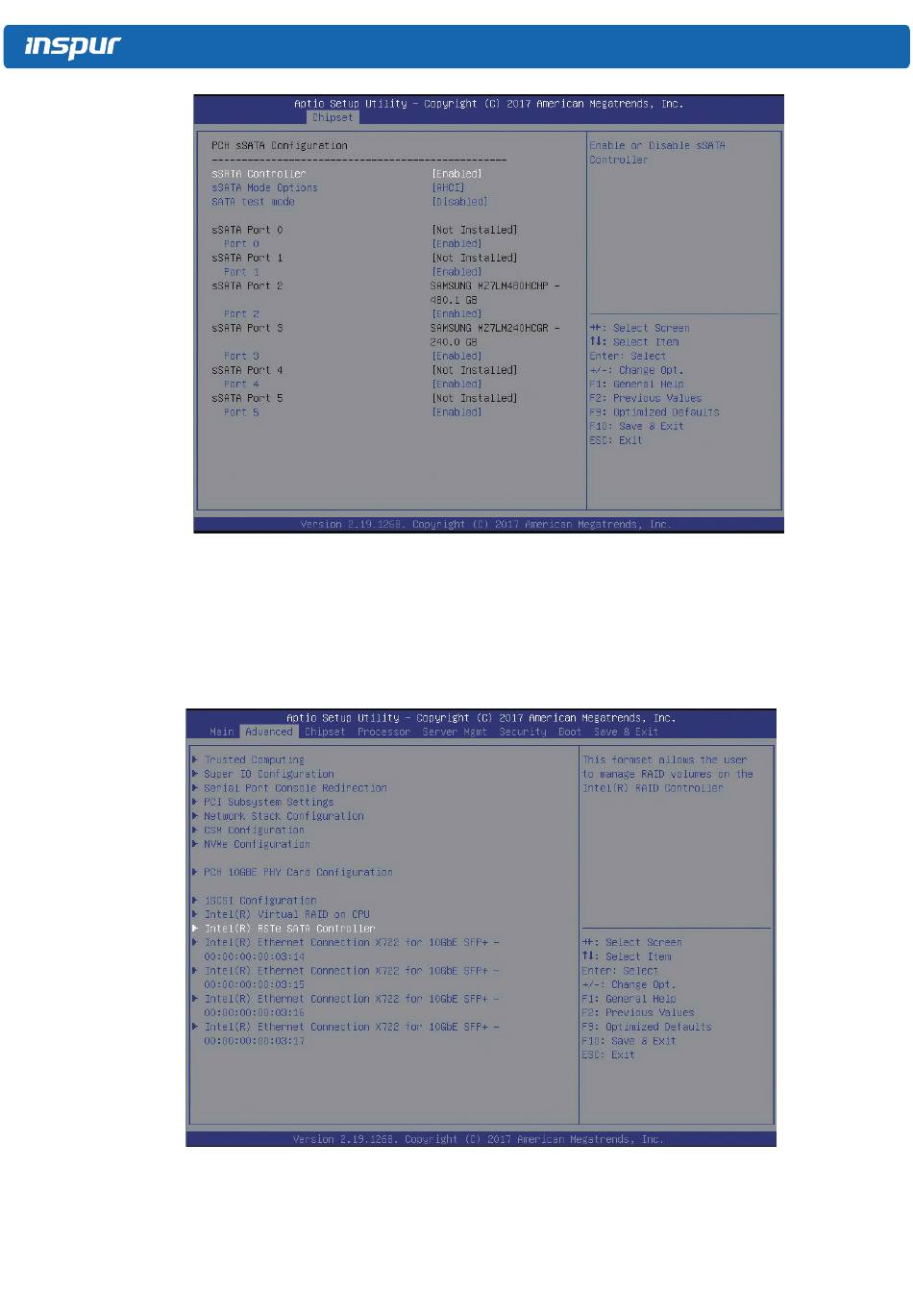

When Boot Mode is set to UEFI mode, in the BIOS Setup Advanced interface, there will be
the Intel(R) RSTe SATA Controller menu, as shown in the following figure.
2.1
Press Enter, the executable operation and the current HDD information will be displayed,
as shown in the following figure.
48
Figure 8-7
Figure 8-8
