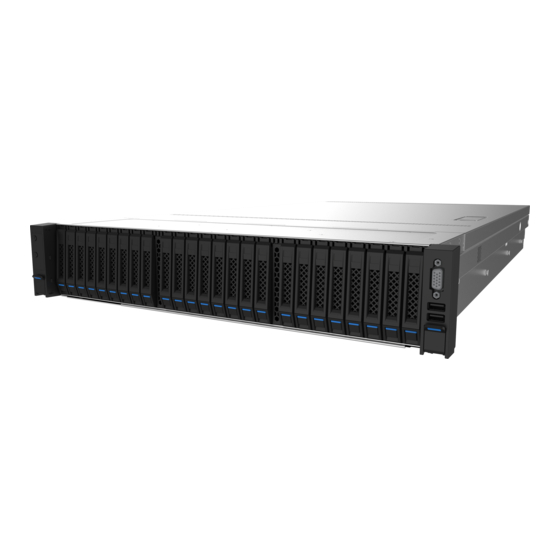

Inspur Server NF5280M5
Acceptance Manual
Version
1.2
Release date 2020-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NF5280M5 and is the answer not in the manual?

Questions and answers

Related Manuals for Inspur NF5280M5

Summary of Contents for Inspur NF5280M5

  • Page 1 Inspur Server NF5280M5 Acceptance Manual Version Release date 2020-01...
  • Page 2 Unless otherwise agreed in the contract, Inspur Group makes no express or implied statement or warranty on the contents of this document. The content of this document may be updated from time to time due to product version upgrades or other reasons.
  • Page 3 Version Update Date Version Prepared / Revised Reviewer Approver Description 2020-01-10 Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 4: Table Of Contents

    3.1.1 Configuring RAID1 ..................22 3.1.2 Configuring RAID5 ..................23 Network Port Test ........................25 4.1.1 Network Port PXE ..................... 25 Customer Acceptance Sign-off Sheet ..................27 Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 5: Contents

    The packaging is in good condition and has no water stain. The anti-shock or anti-fall label is green. All components listed in the packing list are intact. Description None Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 6: Chassis

    Content Objective To verify the installation and power-on status of the power supply units (PSUs). Prerequisites The structure of the mainboard and hard disk backplane is intact. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 7 Insert the first PSU into the slot. Connect power cables to the PSU and check that the power status indicator is steady green. Remove the power cable from the second PSU Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 8: Hardware Detection

    The server is operating properly during the test. Description None 1.1.4 Hardware Detection Table 1-6 Hardware Detection Item Content Objective To verify that the system detects hardware properly. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 9: Hard Disk Controllers

    No abnormal noise is heard during the startup. Description None 1.1.5 Hard Disk Controllers Table 1-7 Hard Disk Controllers Item Content Objective To verify that the RAID controller card operates properly.（LSI SAS 3008） Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 10 To verify that the RAID controller card operates properly.（LSI SAS 3108） Prerequisites The structure of the mainboard and hard disk backplane is proper, and hard disks are detected after the server is powered Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 11: Alarm, Firmware Version, And Hardware Status Detection

    Procedure Check the front panel indicator for any abnormalities. (Please refer to the maintenance manual for details) Check the power module and network port indicators for abnormalities. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 12 Details of BMC management function acceptance, please see "2.1 BMC management function acceptance" below. Expected result 1． The BMC Network Configuration can be entered normally in the BIOS. Description None Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 13: Bmc Test

    Enter the default user name and password again, and click Log In. Wait 5 minutes without performing any operation, and click a menu in the navigation tree. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 14 Enter the user name root and the default password, and click Log In. Choose Power on the menu bar, and choose Power Control in the navigation tree. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 15 Internet Explorer 8.0/9.0/10.0, Firefox 9.0 has been installed on the terminal. The terminal is connected to the BMC network port on the target server over the network. Procedure address box, enter http://xxx.xxx.xxx.xxx Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 16 The terminal is connected to the BMC network port on the target server over the network. Procedure address box, enter http://xxx.xxx.xxx.xxx (xxx.xxx.xxx.xxx is the static BMC ip address that has been set) Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 17 4. Select Automatically obtain IP address and check that all parameters below are unavailable. Select Manually set IP address, enter an IP address, subnet mask, and default gateway, and click Save. Ensure that the Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 18 Enter the user name root and the default password, and click Log In. Choose System > Firmware Upgrade, the Firmware Upgrade page is displayed. Select the BMC software upgrade package and click Upgrade. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 19 Log In. Choose Configuration > Boot Device. Select DVD-ROM and click Save. Restart the server and check whether the setting takes effect. Select PXE and click Save. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 20 Enter the user name root and the default password, and click Log In. Choose Alarm&SEL > System Events and view BMC logs in the right pane. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 21 4. You can manage BMC users, including adding users, deleting users, and changing passwords. Expected result 1. Use the initial admin user to manage BMC users, including adding users, deleting users, and changing passwords. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 22 Description Acceptance options. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 23: Hard Disk Controller Test

    RAID1 properties. On the displayed screen, select Save changes then exit this menu and press Enter to save the settings. Expected result RAID1 arrays properties are configured successfully. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 24: Configuring Raid5

    RAID group. Press "↓" to move the cursor to the "Basic Settings" area. Move the cursor to the "Size" area and set the RAID capacity as required. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 25 14. Select "OK" and press "Enter". 15. Exit the CU configuration interface and prompt to restart the system. Restart the server. Expected result RAID5 arrays properties are configured successfully. Description None Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 26: Network Port Test

    Before acceptance, the system should be properly installed, and the software and hardware debugging should pass, and the system can run normally. The acceptance project should be confirmed by relevant personnel of both Inspur and the user. During the acceptance and preliminary inspection tests, the personnel of both parties shall perform strict tests against relevant standards.
  • Page 27  Statement: During the actual acceptance test, the acceptance is subject to the contract requirements and the agreement between the two parties. This manual is for reference only. Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.

  • Page 28: Customer Acceptance Sign-Off Sheet

    □Pass □Fail □N/A Off on the WebUI BMC Test Web Interface UID Indicator on the □Pass □Fail □N/A WebUI Remote KVM on the □Pass □Fail □N/A WebUI Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 29 □Pass □Fail □N/A Configuring RAID1 Arrays on LSI SAS 3008 Hard Disk Controller Configuring RAID5 Test □Pass □Fail □N/A Configuring RAID5 Arrays on LSI SAS 3108 Remarks: Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
  • Page 30 Conclusion: Totally 22 items are covered in this acceptance test, in which ______ passed, ______ failed, and ______ were not applicable. Inspur Representative： Customer Representative： Date:______________________ Date:______________________ Inspur proprietary and confidential information Copyright © Inspur Electronic Information Industry Co., Ltd.
