Inspur NF5280M5 User Manual page 12

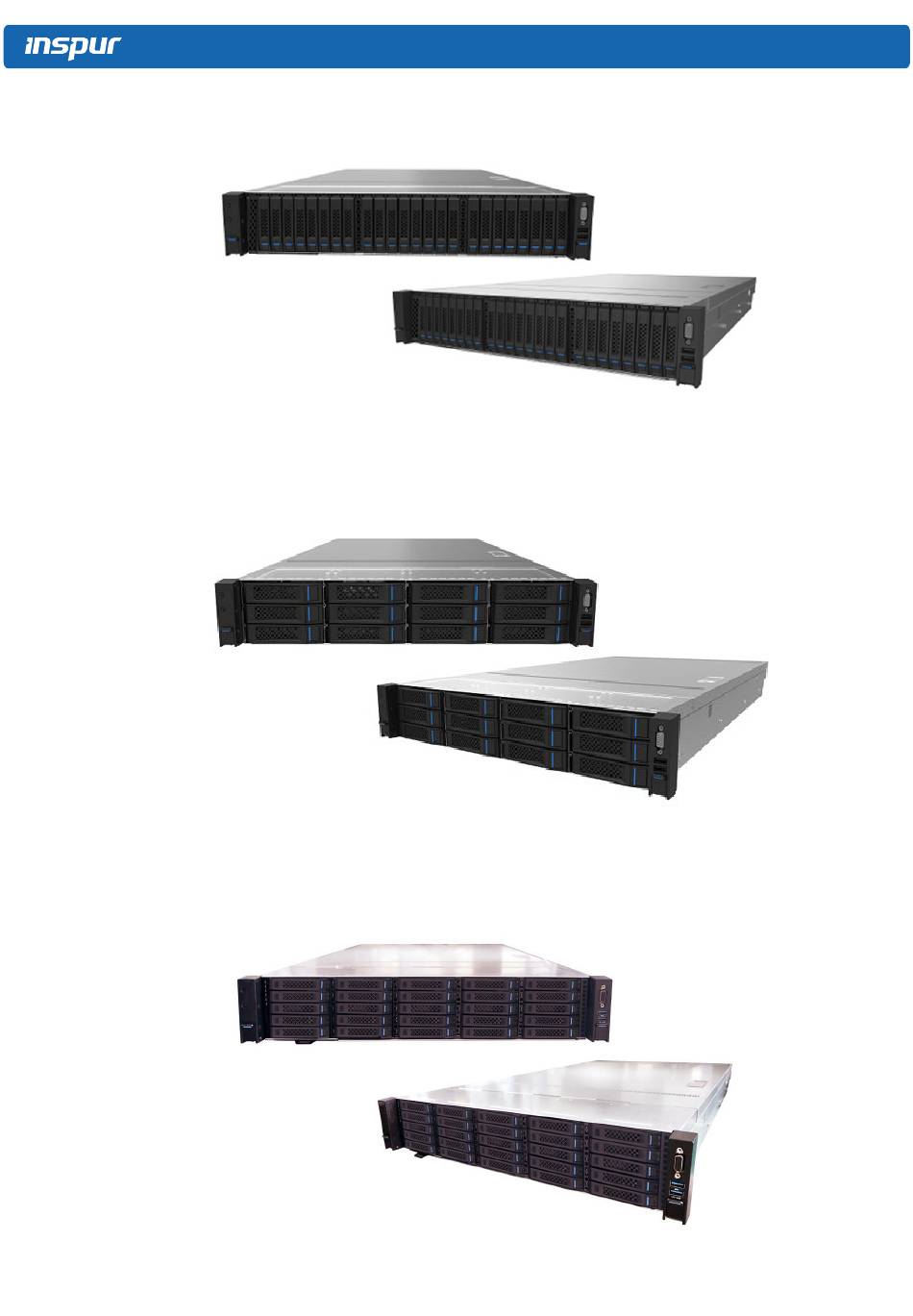

2.5"×24 Configuration (i.e. Full Configuration)
●
2.5"×24 Configuration (i.e. Full Configuration)
●
Supports 24 * 2.5" SAS/SATA/SSD/NVME drive in the front, as shown in the figure below.
Supports 24 front 2.5" SAS/SATA/SSD/NVME HDDs, as shown in the figure below.
3.5"×12 Configuration (i.e. Full Configuration)
●
3.5"×12 Configuration (i.e. Full Configuration)
●
Supports 12 front 3.5"/2.5" SAS/SATA/SSD/NVME HDDs, as shown in the figure below.
Supports 12 * 2.5"/3.5" SAS/SATA/SSD/NVME drive in the front, as shown in the figure below.
Note: The 3.5" HDD trays can hold 3.5"/2.5" HDDs.
Note: The 3.5" drive trays can hold 3.5"/2.5" drives.
2.5"×25 Configuration (i.e. Full Configuration) 2.5"×25 Configuration (i.e. Full Configuration)
●
●
Supports 25 * 2.5" SAS/SATA/SSD in the front, as shown in the figure below. Supports 25 front 2.5" SAS/SATA/SSD HDDs, as shown in the figure below.
6
6
Figure 1-1
Figure 2-2
Figure 2-3
