Inspur NF5280M5 User Manual page 21

Table 3-6
Item Description
1 PCIE slots (CPU0)
2 PCIE slots (CPU0/1)
3 PCIE slots (CPU1)
4 2.5" drive bays
5 MLAN port
6 VGA port
7 USB3.0 ports (2)
8 COM port
9 BMC_RST button
10 UID│RST button
11 OCP expansion card
12 RJ45 latch
13 PSU0
14 PSU1
15 3.5" drive bays
16 GPU0
17 GPU2
18 GPU1
19 GPU3

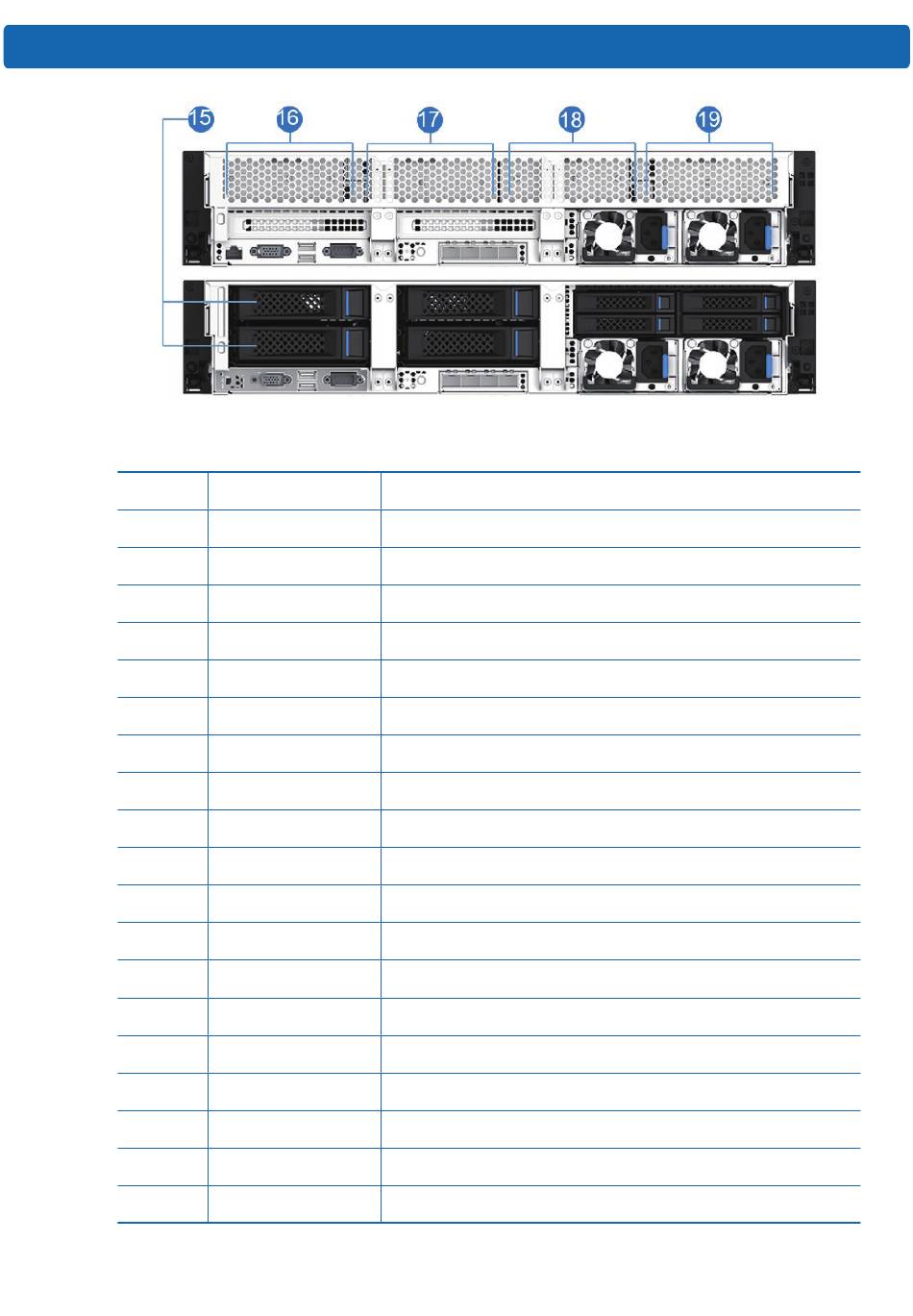

Figure 3-10
Instruction
For installing the riser card
For installing the riser card
For installing the riser card
For installing the 2.5" drive module
Management LAN port
For connecting the display
For connecting the USB device
For connecting the serial device
For resetting BMC
Short press to turn on/off the UID LED, long press to reset the server
For installing the OCP card
Assist in unplugging the network cable connected to the server
For installing the PSU0
For installing the PSU1
For installing the 3.5" drive module
For installing the GPU0
For installing the GPU2
For installing the GPU1
For installing the GPU3
Component Identification
15
