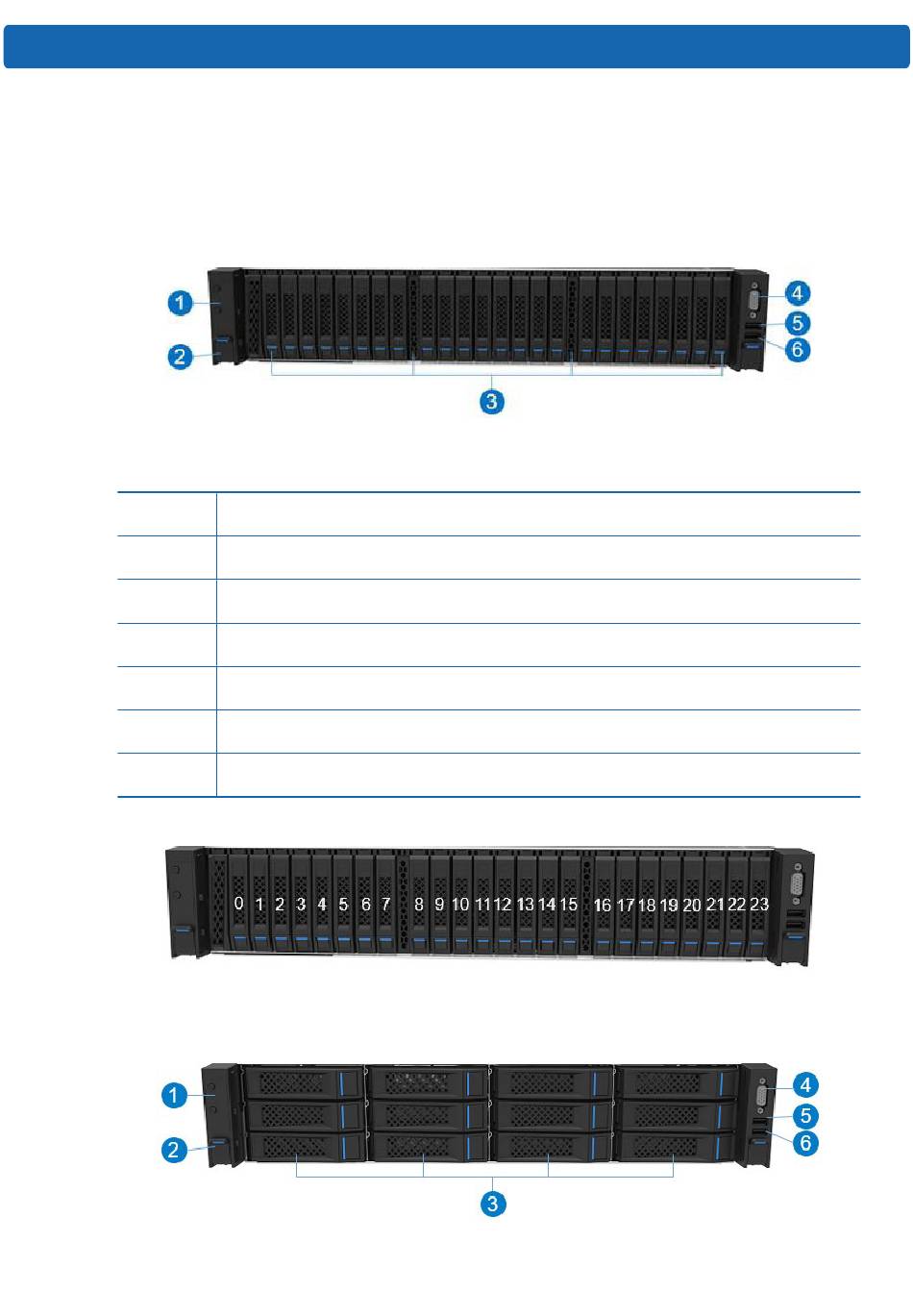

3.1 Front Panel Components

2.5" 24 Drive Bays
×
●
Table 3-1
Item Description
1 Front control panel buttons and LEDs
2 Quick release lever
3 Drive bays
4 VGA port
5 USB3.0 port
6 USB2.0 + LCD port
2.5" × 24 drive sequence diagram
3.5" × 12 Drive Bays
●
Figure 3-1
Figure 3-2
Figure 3-3
