BMC Settings

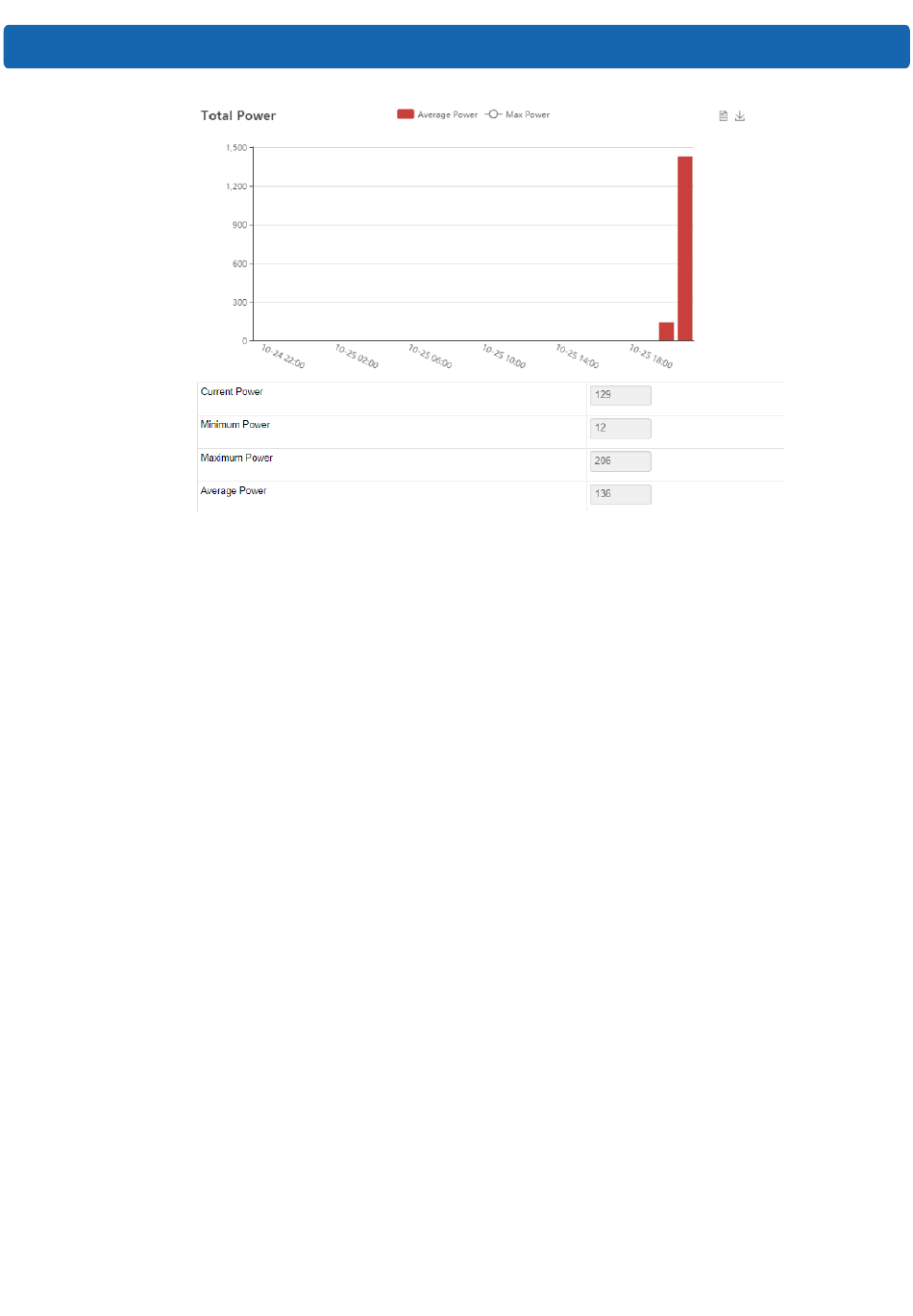

Figure 9-51 Total Power History Record

9.22 Fan Speed Control (FSC)

9.22.1 Fan Speed Control
BMC supports Auto Fan Control by default, and the fan module speed is controlled by the
algorithm provided by thermal team.
Users can enable Manually Fan Control in Web GUI, if enabled, users can select one of four
fan speeds predefined for each fan module. These predefined fan speeds are Low, Medium,
High and Full.
Click "Power and Fan -> Fan Speed Control" to go to the configuration page. Select Manually
Fan Control, and click the fan speed you want. In the Duty Ratio filed, users can see the duty
ratio of the fan module. In this page, users can know the presence of the fan module, and
their status as well.
