● Forcedly power off, same to long time pressing power button.
● Power cycle, power off, delay 10s, power on.
● Hard reset, same to short time pressing reset button (if present).
● Soft shutdown, orderly power off, same to short time pressing power button.
Supported:
Web GUI
IPMI command based on IPMI2.0.
Page "Remote Control -> Server Power Control" shows current power status. Users can
perform power control actions.

9.21 Power Supply and Power Consumption

9.21.1 Power Supply Redundancy
BMC usually supports PSU Redundancy, which means if one or more PSUs cannot normally
output power, server will work normally powered by other power supply.
9.21.2 PSU Active Standby
In the case of meeting the normal work, BMC provides a way to manually set the power
supply to standby to improve power conversion efficiency.
PSU defaults to Activate-Activate mode, and if it need switch to Active-Standby mode, as the
power supply is critical, the work need to do under the guidance of professional engineer.
In the case of meeting business power consumption, reduce part of the power supply by
0.3V, suppress the standby current output by the voltage difference, and the system will
be powered by the main power system. The power supply is in a hot standby state, once
the main power supply is abnormal, standby power will switch to the main power supply
158

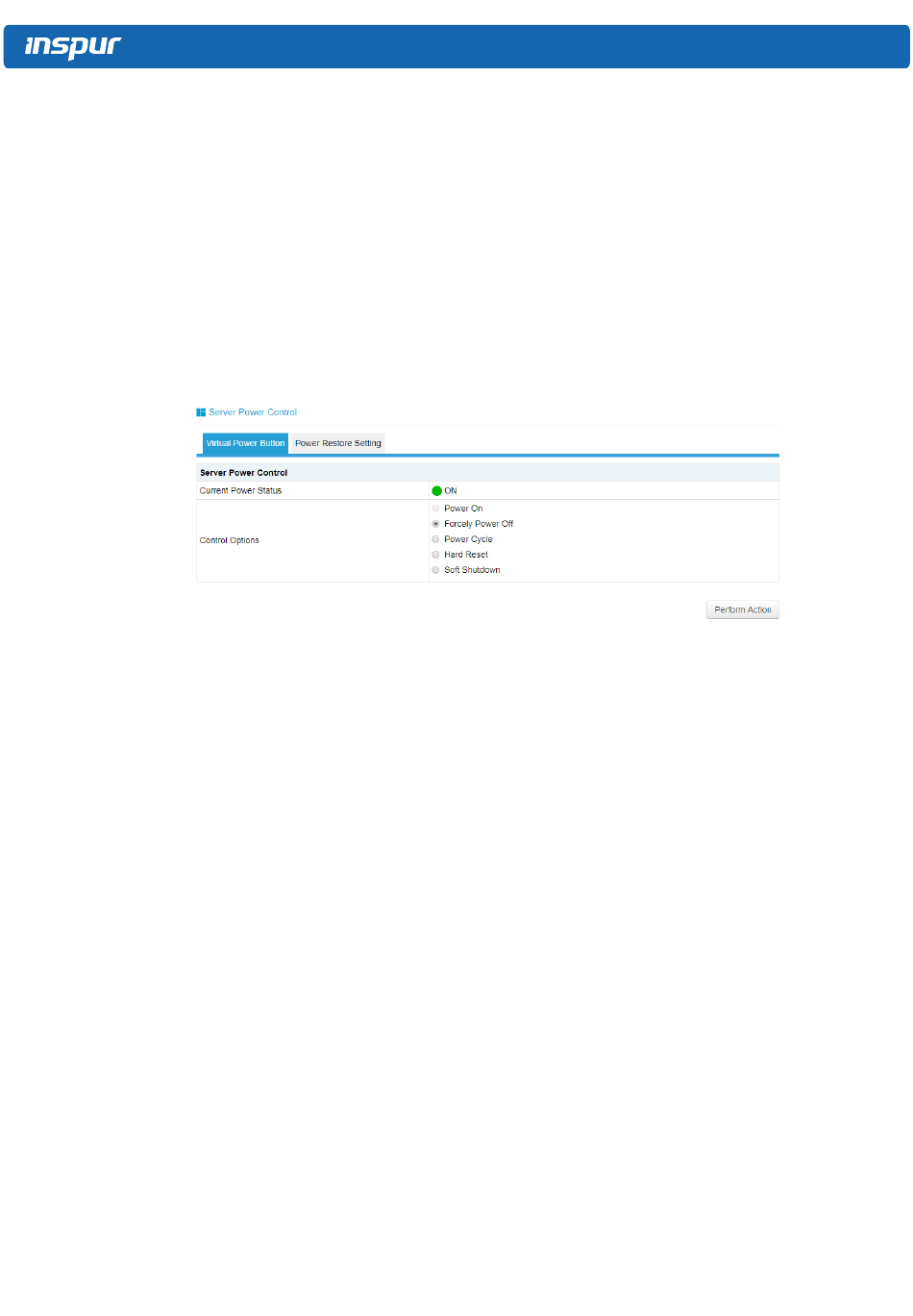

Figure 9-46 Virtual Power Button
