Installation -
DIP Switch Setup
Before installing the camera, you should
set the DIP switch to configure the
camera ID (Communication Protocol).
Inner Box
ON
1
2
3
8J
Protocol Setup
Baud Rate Setup

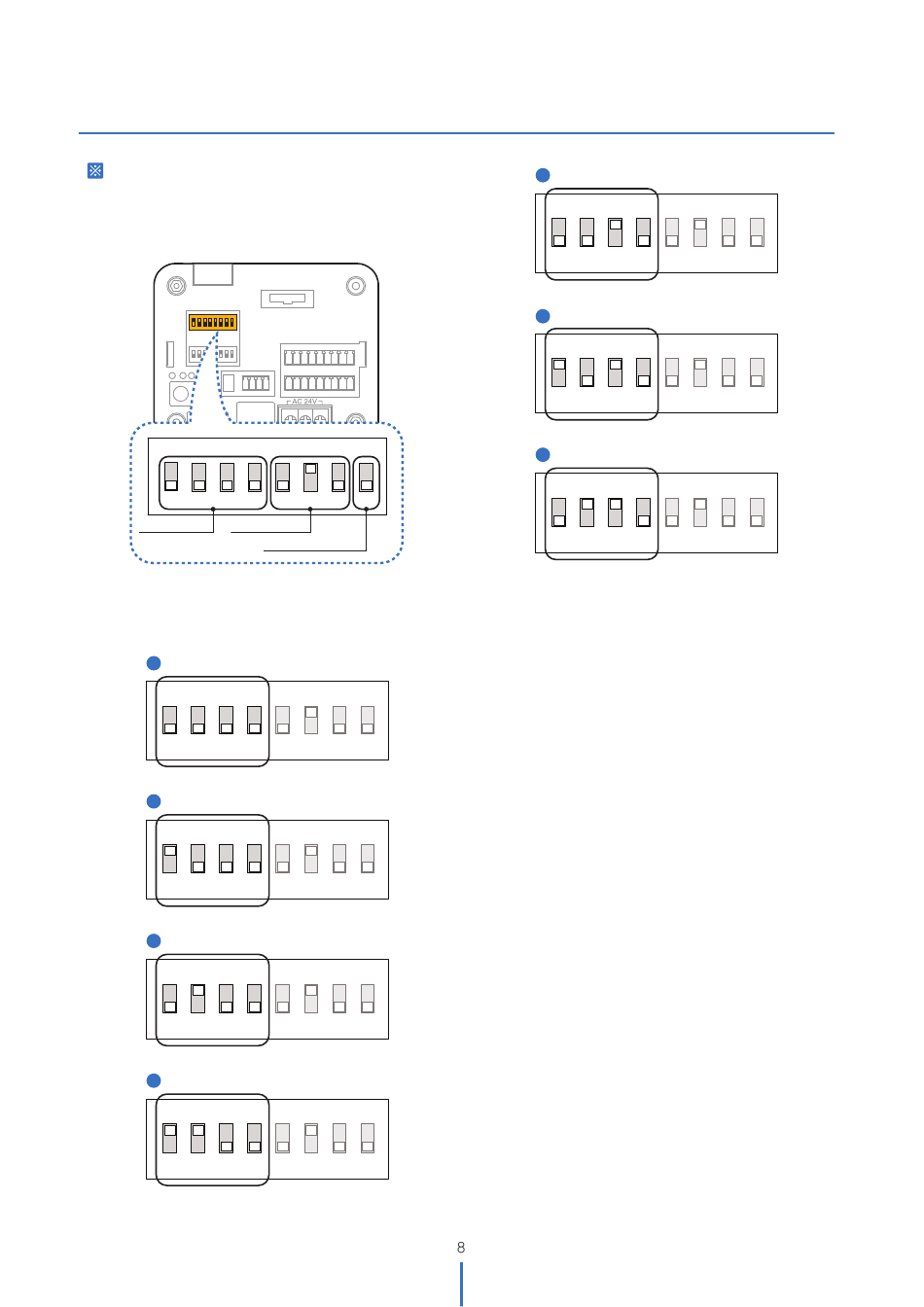

1. Communication Protocol Setup
Configure the appropriate protocol with DIP switch using the
DIP switch combination.
1
AUTO - Factory Default
ON
1
2
3
8J
2
PELCO-D
ON
1
2
3
8J
3
PELCO-P
ON
1
2
3
8J
4
SAMSUNG
ON
1
2
3
8J
4
5
6
7
8
RS-485
Termination Resistor
4
5
6
7
8
4
5
6
7
8
4
5
6
7
8
4
5
6
7
8
5
PANASONIC
ON
1
2
3
4
6
GE (Kalatel)
ON
1
2
3
4
8J
7
AD (American Dynamics)
ON
1
2
3
4
8J
- If you set the protocol as AUTO protocol, camera will
automatically recognize the type of protocol being used;
however, this will not recognize the AD protocol.
- If you want to control the camera using the DVR or system
keyboard, the protocol must be identical to the camera
protocol. Otherwise, you will not bwe able to control the
camera.
- If you change the camera protocol by adjusting the DIP
switch, the change will be effective after you reboot the
camera.
