Digital Watchdog DWC-PTZ39XFM User Manual page 11

2
Installation -
Installation
4

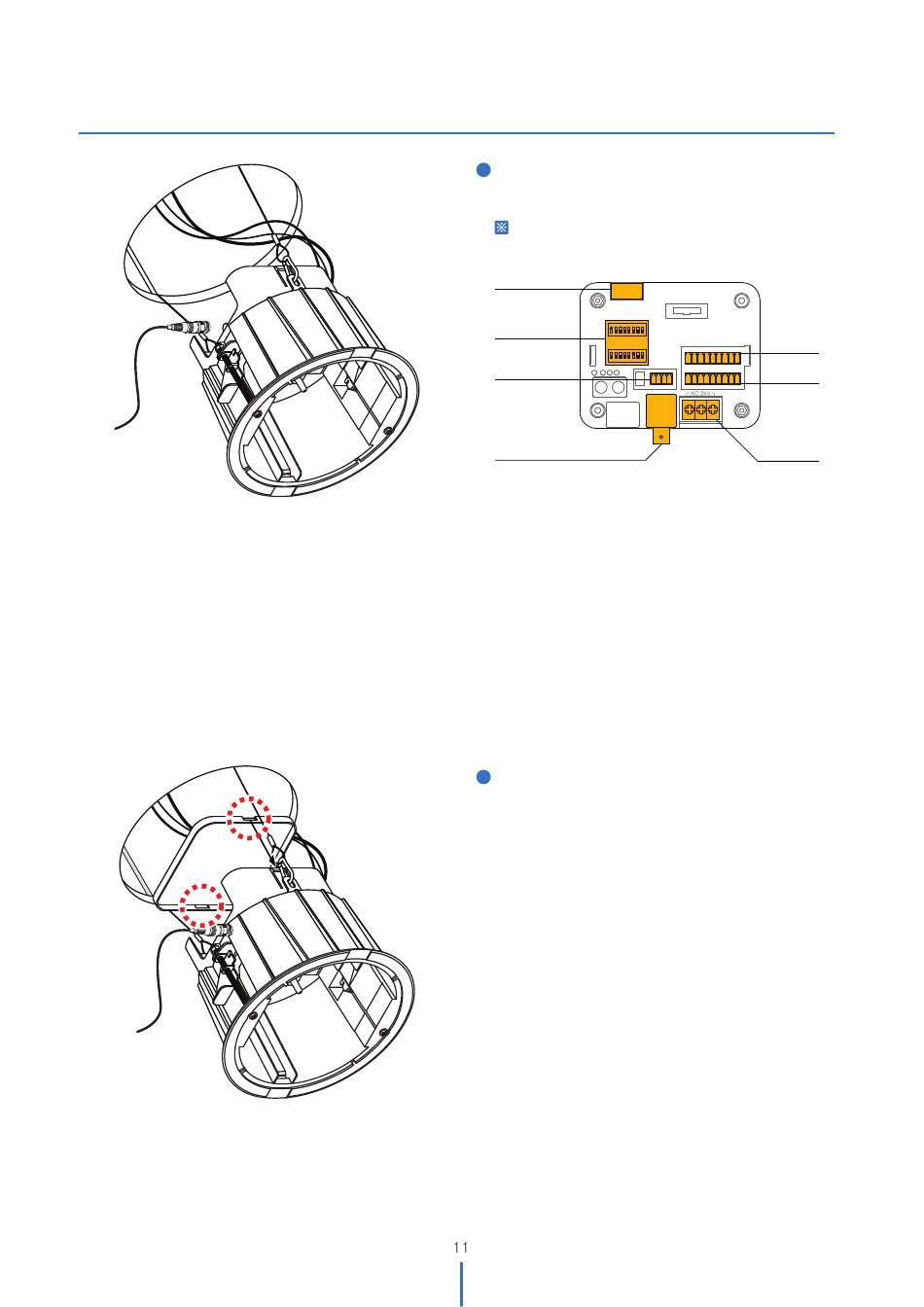

CONNECT THE WIRES AND TERMINAL BLOCKS
Connect the cables to terminal blocks and BNC located in
the inner box of the junction box.
See "Installation - Cabling" in the next section.
Inner Box
Main Connector Port
Protocol,
Address DIP Switch
RS-485 Port
BNC Video Port
5
CLOSE THE JUNCTION BOX COVER
Close the junction box cover by attaching the junction box
hooks to the side holes on the junction box cover.
Alarm Out
Alarm In
Power Port
