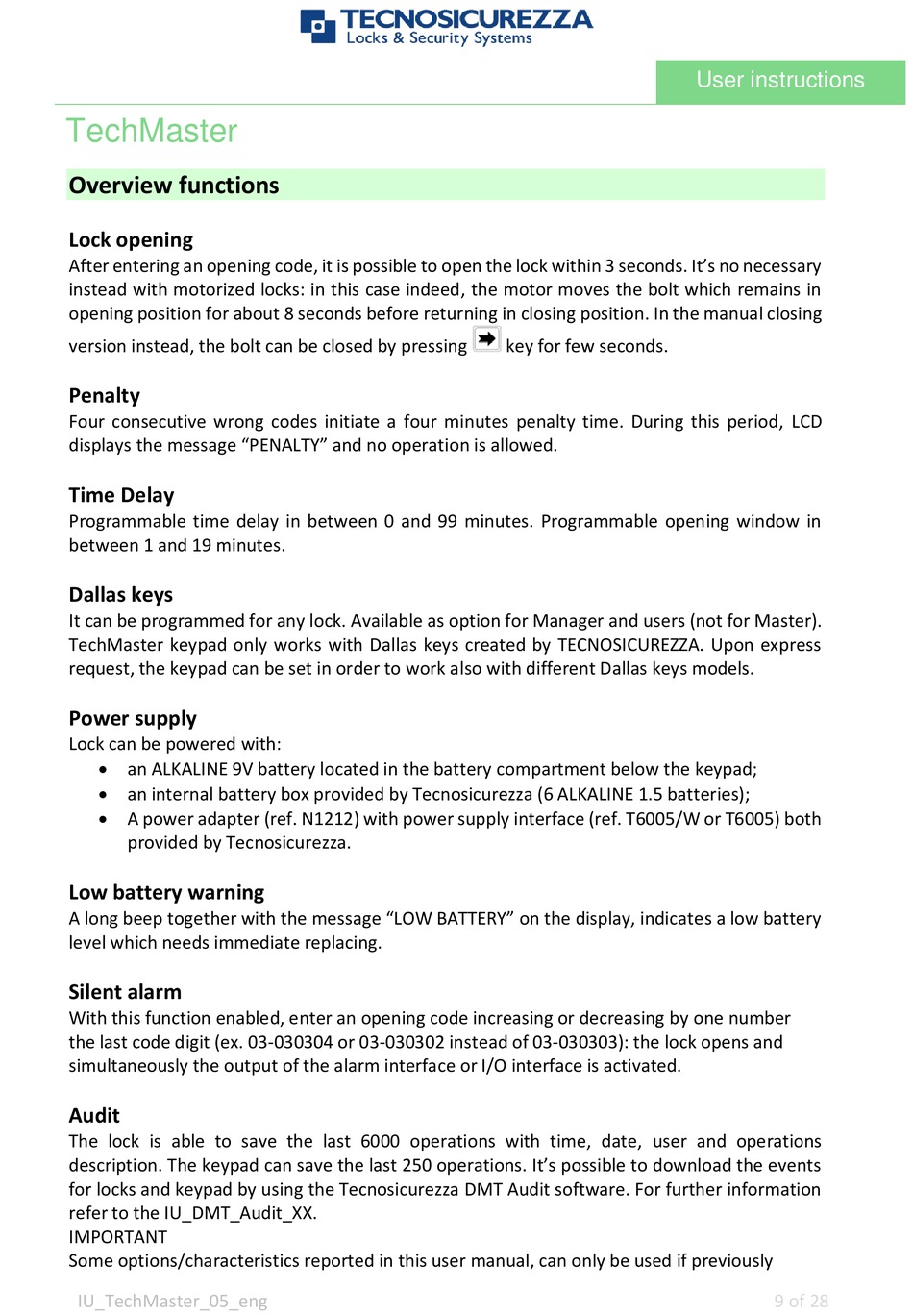

Overview Functions - Tecnosicurezza TechMaster User Instructions

TechMaster

Overview functions

Lock opening
After entering an opening code, it is possible to open the lock within 3 seconds. It's no necessary
instead with motorized locks: in this case indeed, the motor moves the bolt which remains in
opening position for about 8 seconds before returning in closing position. In the manual closing
version instead, the bolt can be closed by pressing
Penalty
Four consecutive wrong codes initiate a four minutes penalty time. During this period, LCD
displays the message "PENALTY" and no operation is allowed.
Time Delay
Programmable time delay in between 0 and 99 minutes. Programmable opening window in
between 1 and 19 minutes.
Dallas keys
It can be programmed for any lock. Available as option for Manager and users (not for Master).
TechMaster keypad only works with Dallas keys created by TECNOSICUREZZA. Upon express
request, the keypad can be set in order to work also with different Dallas keys models.
Power supply
Lock can be powered with:
 an ALKALINE 9V battery located in the battery compartment below the keypad;
 an internal battery box provided by Tecnosicurezza (6 ALKALINE 1.5 batteries);
 A power adapter (ref. N1212) with power supply interface (ref. T6005/W or T6005) both
provided by Tecnosicurezza.
Low battery warning
A long beep together with the message "LOW BATTERY" on the display, indicates a low battery
level which needs immediate replacing.
Silent alarm
With this function enabled, enter an opening code increasing or decreasing by one number
the last code digit (ex. 03-030304 or 03-030302 instead of 03-030303): the lock opens and
simultaneously the output of the alarm interface or I/O interface is activated.
Audit
The lock is able to save the last 6000 operations with time, date, user and operations
description. The keypad can save the last 250 operations. It's possible to download the events
for locks and keypad by using the Tecnosicurezza DMT Audit software. For further information
refer to the IU_DMT_Audit_XX.
IMPORTANT
Some options/characteristics reported in this user manual, can only be used if previously
IU_TechMaster_05_eng
key for few seconds.
User instructions
9 of 28
