- Page 1 Pulse Pro Installation instructions...
-
Page 2: Table Of Contents
Installation instructions Pulse PRO Table of contents TABLE OF CONTENTS MODELS AND CHARACTERISTICS ACCESSORIES AUDIT AND PROGRAMMING ACCESSORIES CERTIFICATIONS IMPORTANT NOTES! KEYPAD DIMENSIONS SWINGBOLT LOCK DIMENSIONS DEADBOLT LOCK DIMENSIONS LATCHBOLT LOCK DIMENSIONS MOTORLOCK LOCK DIMENSIONS MOTOR LATCHBOLT LOCK DIMENSIONS KEYPAD ROTATING KIT INSTALLATION INSTRUCTIONS (ACCESSORY, P.N. T3300) FIXED KEYPAD INSTALLATION INSTRUCTIONS SWINGBOLT LOCK INSTALLATION INSTRUCTIONS DEADBOLT AND LATCHBOLT LOCKS INSTALLATION INSTRUCTIONS... -
Page 3: Models And Characteristics

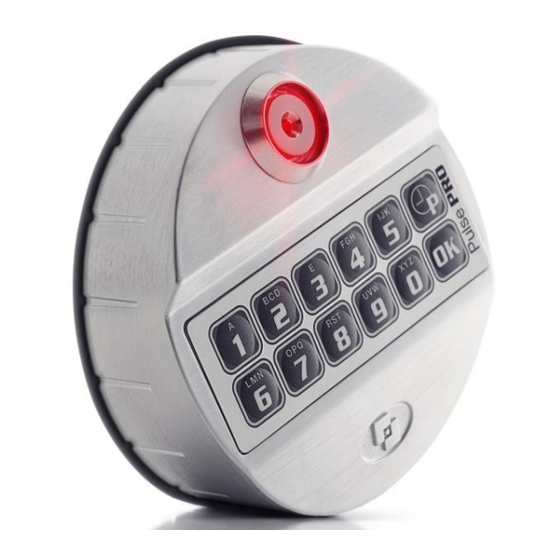

Installation instructions Pulse PRO Models and characteristics Models Variants T6630/GRP Keypad in metal. Satin chrome /DL – with Dallas key reader. colour with rubber membrane foil keypad in grey colour. Accessories Code Description T3330 Rotating back plate kit. NL1000 Mounting adapter. T20019/T Cabling interface/Adapter. -
Page 4: Certifications
Installation instructions Pulse PRO Certifications The updated certifications are available on the official websites of Tecnosicurezza: www.tecnosicurezza.it www.tecnosicurezza.es www.usatecno.com Important notes Before installing this product, please read carefully the installation and operating instructions. Locks can be installed in all traditional safes. - Page 5 Any component to be fixed to the lock bolt must be previously approved by Tecnosicurezza before installation. In any case, the maximum load must not exceed 4 N for T4801/M and 30 N for reinforced model T4801/MP.
-
Page 6: Keypad Dimensions
Installation instructions Pulse PRO Keypad dimensions SwingBolt lock dimensions T4801 T4800 6 of 20 II_PulsePro_05_eng... -
Page 7: Deadbolt Lock Dimensions
Installation instructions Pulse PRO DeadBolt lock dimensions T4801/D T4800/D LatchBolt lock dimensions T4801/S II_PulsePro_05_eng 7 of 20... -
Page 8: Motorlock Lock Dimensions
Installation instructions Pulse PRO T4800/S MotorLock lock dimensions T4801/M & T4801/MP Motor LatchBolt lock dimensions T4801/M/S 8 of 20 II_PulsePro_05_eng... -
Page 9: Keypad Rotating Kit Installation Instructions (Accessory, P.n. T3300)
Installation instructions Pulse PRO Keypad rotating kit installation instructions (accessory, p.n. T3300) The rotation kit consists of 2 bushings, 2 M4 countersunk screws, 1 plastic pin, 1 spring and 1 rotating backplate. (Imperial screws 8-32 UNC are available on request.) Cut the grooved shaft to the appropriate length: measure door thickness (from mounting surface of the entry unit to the mounting surface of the lock) and add 26 mm (1”). -
Page 10: Fixed Keypad Installation Instructions
Installation instructions Pulse PRO Remove the release liner placed under the membrane and apply the latter on the keypad case. Connect a battery to the battery connector inside the keypad battery compartment or, if provided, connect the battery pack to the lock connector "2/BAT". Fixed keypad installation instructions Insert the keypad cable inside the hole on the safe door and connect it to the lock connector "1/ENT". -
Page 11: Deadbolt And Latchbolt Locks Installation Instructions
1 mm. The bolt must be able to move freely without force being applied to it. The maximum load applicable to the bolt must not exceed 1KN. Contact Tecnosicurezza in case of heavier loads. - Page 12 5 mm clearance between the lock bolt and the blocking bar of the boltwork. The maximum load applicable to the bolt must not exceed 1 KN. Contact Tecnosicurezza in case of heavier loads. The LatchBolt lock is specially designed to ensure self locking when the door closes.
- Page 13 Installation instructions Pulse PRO Cut the spindle to the correct length (measure door thickness + mounting plate/rotation knob or handle insert + lock spindle insert). Remove any cutting residues of the spindle that could damage the cable. T4801/D & T4801/S locks The spindle needs to be fully inserted inside the lock (7 mm).
-
Page 14: Motorlock And Motor Latchbolt Locks Installation Instructions
Installation instructions Pulse PRO MotorLock and Motor LatchBolt locks installation instructions MotorLock and Motor LatchBolt locks are locks with, respectively, a motor driven dead bolt and a motor driven spring bolt, whose block is carried out by a motor. By entering a valid code, the motor retracts the bolt which remains in the open position for about 8 seconds and then automatically returns to the locked position. - Page 15 8 seconds (smart reclosure). The maximum load applicable to the bolt must not exceed the limit values specified in the table below. Contact Tecnosicurezza in case of heavier loads. Lock reference Lock version Maximum force to apply...
-
Page 16: Functional Tests
For all types of locks, at the end of the operation the bolt must fully extend and ensure locking. Repeat the functional test several times before locking the safe door. Failure to follow these installation instructions or opening the lock by personnel not authorized by Tecnosicurezza will void the warranty. 16 of 20 II_PulsePro_05_eng... -
Page 17: Ce Declarations
Pulse PRO: T66-xx Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante della società Tecnosicurezza S.p.A., con sede in San Giovanni Lupatoto (Verona) Via Cesare Battisti 276, dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per progettazione e costruzione i requisiti delle direttive di: compatibilità... - Page 18 Pulse PRO: T48-xx Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante della società Tecnosicurezza S.p.A., con sede in San Giovanni Lupatoto (Verona) Via Cesare Battisti 276, dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per progettazione e costruzione i requisiti delle direttive di: compatibilità...
- Page 19 Installation instructions Pulse PRO NOTES II_PulsePro_05_eng 19 of 20...
-
Page 20: Correct Disposal Of This Product
Contacts GLOBAL HEADQUARTERS USA HEADQUARTERS SPAIN HEADQUARTERS Tecnosicurezza SpA Tecnosicurezza Inc. Tecnosicurezza Sa Via Cesare Battisti. 276 50, Thomas Lane C/Menor, 4 - Nave 10 37057 San Giovanni Lupatoto Pol.
