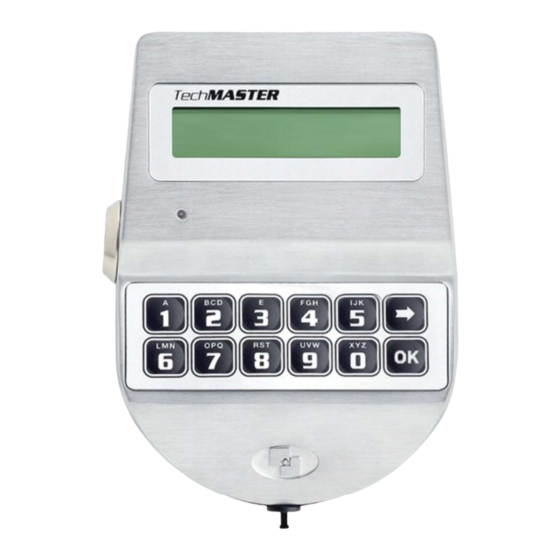

TechMaster
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TechMaster and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tecnosicurezza TechMaster

Summary of Contents for Tecnosicurezza TechMaster

  • Page 1 TechMaster User Instructions...

  • Page 2: Company

    Founded in 1983 with the aim of providing a complete range of professional products, Tecnosicurezza is now a consolidated reality in the field of locks and security systems for safes. The experience gained in over 35 years of activity in the security sector has allowed the designing and manufacturing of high technology and reliability systems, which continue to receive the approval of an increasingly demanding clientele.

  • Page 3: Table Of Contents

    User instructions TechMaster Table of contents COMPANY TABLE OF CONTENTS IMPORTANT NOTES! GENERAL INFORMATION OVERVIEW FUNCTIONS OPENING THE LOCKS SERS VERRIDE USERS OPENING WITHOUT TIME DELAY SERS OPENING WITH TIME DELAY ANAGER VERRIDE ANAGER OPENING WITHOUT TIME DELAY ANAGER VERRIDE...
  • Page 4 User instructions TechMaster HANGE CODE FOR VERRIDE ANAGER HANGE CODE FOR ASTER TIME MENU PENING EXTENSION MMEDIATE CONFIGURATION MENU NSTALL OCKS EMOVE OCKS OCK RECLOSURE MODE I/O I ONFIGURE NTERFACE I/O I EMOVE NTERFACE ISPLAY CONTRAST EYPAD ANGUAGE EMBRANE TEST...

  • Page 5: Important Notes

    User instructions TechMaster Important notes  Before installing this product, please read carefully the installation and operating instructions.  Locks have been designed to correctly operate in a temperature range from -5°C to + 50°C and in an environment with non-condensing humidity between 25% and 90%.

  • Page 6: General Information

    User instructions TechMaster General information Using your keypad  Press any button to power up the keypad. LCD which shows: ENTER CODE X X – X X X X X X If more locks are installed, LCD displays: SELECT LOCK Enter the lock number to select it.
  • Page 7 User instructions TechMaster  If a dynamic/activation code is entered more than 30 minutes WRONG DYNAMIC CODE before its beginning validity time, LCD displays:  If a dynamic/activation code is entered more than 30 minutes WRONG DYNAMIC CODE later than its beginning validity time, LCD displays: ...
  • Page 8 User instructions TechMaster Users from 02 to 90: 02-020202, 03-030303, and so on. They always open with time delay if set. Override users: thanks to the setup software, it is possible to configure users in between 10 and 90 (10-101010, 11-111111, and so on) as override users. They always open without time delay.

  • Page 9: Overview Functions

    The lock is able to save the last 6000 operations with time, date, user and operations description. The keypad can save the last 250 operations. It’s possible to download the events for locks and keypad by using the Tecnosicurezza DMT Audit software. For further information refer to the IU_DMT_Audit_XX.

  • Page 10: Opening The Locks

    TechMaster enabled through the setup software. Thus, please refer to the user manual IU_TechMaster_setup_XX. Please contact Tecnosicurezza for further information. Opening the locks Users (or Override users): opening without time delay Power up the keypad. Enter an opening code and insert the Dallas key, OPEN if set-up.

  • Page 11: Opening With Dynamic Codes (Dallas Key Option)

    User instructions TechMaster Press for opening with Manager code or press it two times for opening with Manager Ovr code. LCD displays: Enter Manager code/Manager Ovr code and insert the Dallas key, if set- OPEN up. LCD displays: Open the lock within 3 seconds.

  • Page 12: Dual Mode Opening Without Time Delay

    User instructions TechMaster Dual mode opening without time delay Power up the keypad. Enter an opening code and insert the Dallas key, 2° USER CODE if set-up. LCD displays: X X – X X X X X X Enter the second opening code and insert the Dallas key, if set-up.

  • Page 13: Time And Date Recovery Through Dyamaweb (Otc Software)

    User instructions TechMaster Time and Date recovery through DyamaWeb (OTC software) This option can only be used after activating the dynamic codes and the deletion of all static codes (including the Master code). For further information, see the paragraph Dynamic codes activation with static codes deleting, pg.

  • Page 14: Weekly Time Lock Settings - Adding New Values

    User instructions TechMaster TIME LOCK Power up the keypad. Enter the Master menu. Press until LCD SETTING displays: Weekly time lock settings – Adding new values WEEKLY TIME LOCK Enter Time Lock menu and press . LCD displays: T1 SETTING Press once or two times to set a weekly time lock T2 or T3.

  • Page 15: Closing Periods (Off Days) - Add New Values

    User instructions TechMaster DELETE VALUES? Press on a schedule. LCD displays:  Press to confirm or to exit. END OF LIST EXIT? At the end of the list, press . LCD displays: Closing periods (OFF days) – Add new values Closing periods are time intervals in which is possible to close the lock even when a time lock is enabled.

  • Page 16: Opening Periods - Add New Values

    User instructions TechMaster DELETE VALUES? Press to delete the scheduled closing periods.  Press to confirm or to exit. END OF LIST At the end of the list, press EXIT? Opening periods - Add new values Opening periods are time intervals in which is possible to open the lock even when a time lock is enabled.

  • Page 17: Pc Connection

    User instructions TechMaster Press to confirm or to exit. END OF LIST EXIT? At the end of the list, press PC connection Use this function to enable the connection between the keypad and PC. PC LINK Power up the keypad. Enter the Master menu. Press...

  • Page 18: Dynamic Codes Activation With Static Codes Deleting

    User instructions TechMaster DYNAMIC CODES Press . The LCD displays: ENABLE/DISABLE OPERATION DONE Press to confirm. LCD displays: Dynamic codes activation with static codes deleting WARNING: with this operation, it is possible to delete the static codes for all users and Manager.

  • Page 19: Time Delay

    User instructions TechMaster If the selected user is already installed, press to choose whether to disable it, to delete it or for leaving and selecting another user. Press to confirm the choice. Time delay T. DELAY AND Power up the keypad. Enter Manager menu and press until LCD O.

  • Page 20: Pc Connection

    User instructions TechMaster Press to set new values (max. 4) Variable Time Delay – Verify or delete values VERIFY OR DELETE Enter Variable Time Delay menu and press until LCD displays: VALUES 08:00 Press . LCD displays the values for the first day.

  • Page 21: Code Changing

    User instructions TechMaster Press . If the user is not installed LCD displays: INSTALL? “ ” Dallas key, “ ” code, “+” dual mode, “TL” time lock Press to confirm or to exit or for switching to the next user.

  • Page 22: Change Code For Override Manager

    User instructions TechMaster Change code for Override Manager CHANGE OVR Power up the keypad. Access Change Code menu and press . Then, MANAGER CODE press until LCD displays: OLD CODE Press to confirm. LCD displays: X X X X X X Enter the old code e insert the Dallas key (if set up).

  • Page 23: Immediate Time Lock

    User instructions TechMaster It is also possible to enter different values. Enter date and time (max. 2h) and press to confirm. Immediate Time Lock MANAGER CODE Power up the keypad and access Time Menu and press X X – X X X X X X...

  • Page 24: Remove Locks

    User instructions TechMaster Remove Locks WARNING: it is recommended to perform this operation always with lock open and connected with the keypad. INSTALL Power up the keypad. Access Configuration Menu. LCD displays: LOCKS REMOVE Press until LCD displays: LOCKS SELECT Press and select the lock to remove.

  • Page 25: Configure I/O Interface

    User instructions TechMaster Configure I/O Interface Power up the keypad. Access Configuration Menu. LCD displays: INSTALL LOCKS CONFIGURE I/O Press until the LCD displays: INTERFACE RS485 ID 01 Press . LCD displays: MASTER CODE Press to confirm. LCD displays: X X X X X X X X Enter Master code.

  • Page 26: Keypad Language

    User instructions TechMaster Temporary restoring of the display contrast This option can only be accessed after activating the dynamic codes without deletion of the static codes. Power up the LCD. Press and hold until the LCD displays the keypad firmware version.

  • Page 27: Dynamic Keypad Id And Dyamaweb Software License

    User instructions TechMaster Press until the LCD displays: SYSTEM INFO Press . LCD displays keypad system information. Press to see lock system info. Press to see the current time and date. Dynamic keypad ID and DyamaWeb software license These options can only be used after activating the dynamic codes. For further information see the paragraph Dynamic codes activation with static codes deleting, page 18.

  • Page 28: Correct Disposal Of This Product

    Contacts GLOBAL HEADQUARTERS USA HEADQUARTERS SPAIN HEADQUARTERS Tecnosicurezza SpA Tecnosicurezza Inc. Tecnosicurezza Sa Via Cesare Battisti, 276 50, Thomas Lane C/Menor, 4 - Nave 10 37057 San Giovanni Lupatoto Pol.
