- Page 1 DigiTech Installation instructions...
-
Page 2: Company
Founded in 1983 with the aim of providing a complete range of professional products, Tecnosicurezza is now a consolidated reality in the field of locks and security systems for safes. The experience gained in over 35 years of activity in the security sector has allowed the designing and manufacturing of high technology and reliability systems, which continue to receive the approval of an increasingly demanding clientele. -
Page 3: Table Of Contents
Installation instructions DigiTech Table of contents COMPANY TABLE OF CONTENTS MODELS AND CHARACTERISTICS ACCESSORIES AUDIT AND PROGRAMMING ACCESSORIES CERTIFICAZIONS IMPORTANT NOTES! KEYPAD DIMENSIONS ROTOBOLT LOCK DIMENSIONS STRAIGHTBOLT LOCK DIMENSIONS SPRINGBOLT LOCK DIMENSIONS MOTORLOCK DIMENSIONS MOTORSPRINGBOLT LOCK DIMENSIONS FIXED KEYPAD INSTALLATION INSTRUCTIONS ROTOBOLT LOCK INSTALLATION INSTRUCTIONS STRAIGHTBOLT AND SPRINGBOLT LOCKS INSTALLATION INSTRUCTIONS MOTORLOCK AND MOTOR SPRINGBOLT LOCKS INSTALLATION INSTRUCTIONS... -

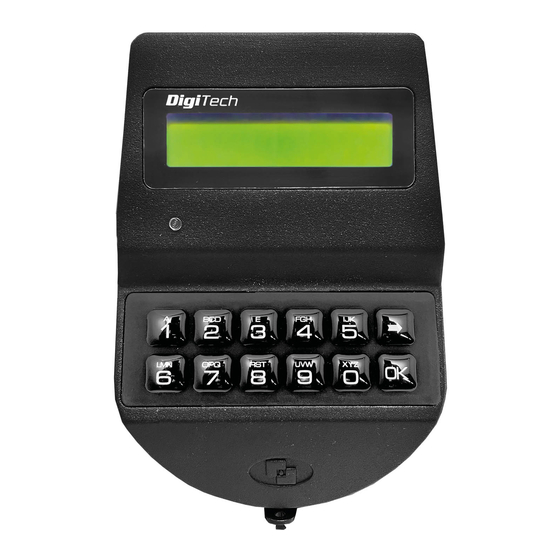

Page 4: Models And Characteristics
Installation instructions DigiTech Models and characteristics Model Variant T9510/BR – Keypad in metal. Black colour /DL with Dallas key reader. with rubber membrane foil keypad in black colour. Accessories Code Description N077/A Battery box with alarm interface. L4001 Large battery box for 6 size C 1.5V batteries. T6005/W Power supply interface (12Vdc). -
Page 5: Certificazions
Installation instructions DigiTech Certificazions II_DigiTech_01_eng 5 of 20... -
Page 6: Important Notes
The mounting dimensions are standard (magic module). For the installation of the keypad and lock, use only the screws provided by Tecnosicurezza. Any other screw must be approved in advance. Locks are supplied with metric (M6) mounting screws. Upon request, Imperial 1/4-20 UNC format mounting screws are available. -
Page 7: Keypad Dimensions
Any component to be fixed to the lock bolt must be previously approved by Tecnosicurezza before installation. In any case, the maximum load must not exceed 2.5 N. -
Page 8: Rotobolt Lock Dimensions
Installation instructions DigiTech STANDARD mounting VERTICAL mounting RotoBolt lock dimensions StraightBolt lock dimensions 8 of 20 II_ DigiTech_01_eng... -
Page 9: Springbolt Lock Dimensions
Installation instructions DigiTech SpringBolt lock dimensions MotorLock dimensions MotorSpringBolt lock dimensions II_DigiTech_01_eng 9 of 20... -
Page 10: Fixed Keypad Installation Instructions
Installation instructions DigiTech Fixed keypad installation instructions Insert the keypad cable inside the hole on the safe door and connect it to the lock connector "ENT" (connector 1 in the case of a MotorLock or Motor SpringBolt lock). Lift the keypad membrane and, making sure that the connection cable and the battery cable are not damaged by the keypad case, fix the screws to the relative threaded holes on the safe door. -
Page 11: Straightbolt And Springbolt Locks Installation Instructions
The maximum load applicable to the bolt must not exceed 1KN. Contact Tecnosicurezza in case of heavier loads. The spring-latch version (SpringBolt) is specially designed to ensure self locking when the door closes. -
Page 12: Motorlock And Motor Springbolt Locks Installation Instructions
Installation instructions DigiTech The distance between the SpringBolt lock and the locking edge must be between a minimum of 3 mm and a maximum of 8 mm. When locked, there must be a 0.5mm gap between lock bolt and locking surface. - Page 13 Installation instructions DigiTech In the locked position, there should be approximately 1 mm clearance between the lock bolt and the cavity in the blocking bar of the boltwork. The bolt must be able to move freely without force being applied to In open position, there should be minimum 3mm and maximum 5 mm clearance between the lock bolt and...
-
Page 14: Functional Test
Repeat the functional test several times before closing the safe door. Failure to follow these installation instructions or opening the lock by personnel not authorized by Tecnosicurezza will void the warranty. 14 of 20 II_ DigiTech_01_eng... -
Page 15: Ce Declarations
DigiTech: T951-x Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante della società Tecnosicurezza s.r.l., con sede in San Giovanni Lupatoto (Verona) Via Cesare Battisti 276, dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per progettazione e costruzione i requisiti delle direttive di: compatibilità... - Page 16 DigiTech: T51-xx Il sottoscritto Franco Miller, in veste di Presidente CdA e Legale Rappresentante della società Tecnosicurezza s.r.l., con sede in San Giovanni Lupatoto (Verona) Via Cesare Battisti 276, dichiara sotto la propria responsabilità, che il suddetto prodotto soddisfa per progettazione e costruzione i requisiti delle direttive di: compatibilità...
-
Page 17: Notes
Installation instructions DigiTech NOTES II_DigiTech_01_eng 17 of 20... - Page 18 Installation instructions DigiTech NOTES 18 of 20 II_ DigiTech_01_eng...
- Page 19 Installation instructions DigiTech NOTES II_DigiTech_01_eng 19 of 20...
-
Page 20: Contacts
Contacts GLOBAL HEADQUARTERS USA HEADQUARTERS SPAIN HEADQUARTERS Tecnosicurezza SpA Tecnosicurezza Inc. Tecnosicurezza Sa Via Cesare Battisti, 276 50, Thomas Lane C/Menor, 4 - Nave 10 37057 San Giovanni Lupatoto Pol.
