User instructions

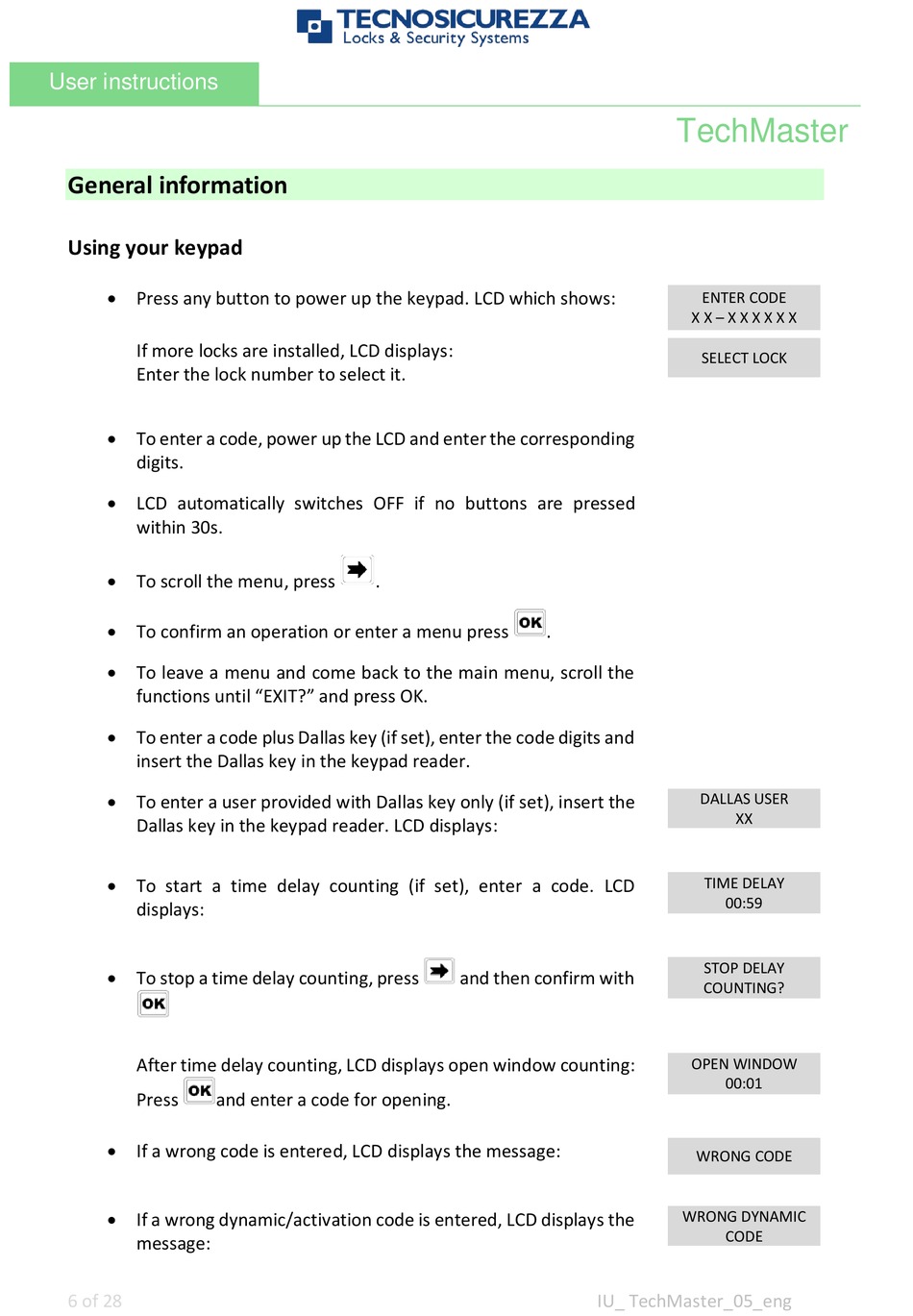

General information

Using your keypad
 Press any button to power up the keypad. LCD which shows:
If more locks are installed, LCD displays:
Enter the lock number to select it.
 To enter a code, power up the LCD and enter the corresponding
digits.
 LCD automatically switches OFF if no buttons are pressed
within 30s.
 To scroll the menu, press
 To confirm an operation or enter a menu press
 To leave a menu and come back to the main menu, scroll the
functions until "EXIT?" and press OK.
 To enter a code plus Dallas key (if set), enter the code digits and
insert the Dallas key in the keypad reader.
 To enter a user provided with Dallas key only (if set), insert the
Dallas key in the keypad reader. LCD displays:
 To start a time delay counting (if set), enter a code. LCD
displays:
 To stop a time delay counting, press
After time delay counting, LCD displays open window counting:
Press and enter a code for opening.
 If a wrong code is entered, LCD displays the message:
 If a wrong dynamic/activation code is entered, LCD displays the
message:
6 of 28
.
.
and then confirm with
TechMaster
ENTER CODE
X X – X X X X X X
SELECT LOCK
DALLAS USER
XX
TIME DELAY
00:59
STOP DELAY
COUNTING?
OPEN WINDOW
00:01
WRONG CODE
WRONG DYNAMIC
CODE
IU_ TechMaster_05_eng
