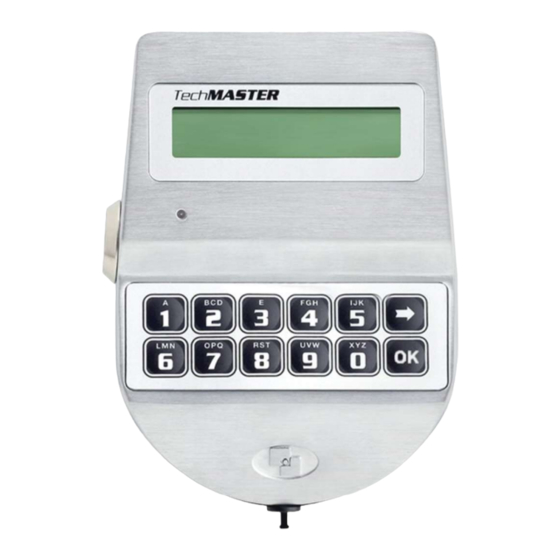

TechMaster
User Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TechMaster and is the answer not in the manual?

Questions and answers

Related Manuals for Tecnosicurezza TechMaster

Summary of Contents for Tecnosicurezza TechMaster

  • Page 1 TechMaster User Instructions...

  • Page 2: Table Of Contents

    User instructions TechMaster Table of contents TABLE OF CONTENTS IMPORTANT NOTES! GENERAL INFORMATION OVERVIEW FUNCTIONS OPENING THE LOCKS SERS VERRIDE USERS OPENING WITHOUT TIME DELAY SERS OPENING WITH TIME DELAY ANAGER VERRIDE ANAGER OPENING WITHOUT TIME DELAY ANAGER VERRIDE ANAGER...
  • Page 3 User instructions TechMaster TIME MENU PENING EXTENSION MMEDIATE CONFIGURATION MENU NSTALL OCKS EMOVE OCKS OCK RECLOSURE MODE NSTALL INTERFACE I/O I ONFIGURE NTERFACE I/O I EMOVE NTERFACE ISPLAY CONTRAST EYPAD ANGUAGE EMBRANE TEST YSTEM YNAMIC KEYPAD YAMA EB SOFTWARE LICENSE CORRECT DISPOSAL OF THIS PRODUCT: (WASTE ELECTRICAL &...

  • Page 4: Important Notes

    User instructions TechMaster Important notes  Before installing this product, please carefully read the installation and operating instructions.  Locks have been designed to correctly operate in a temperature range from -5°C (23°F) to + 50°C (122°F) and in an environment with non-condensing humidity between 25% and 90%.

  • Page 5: General Information

    User instructions TechMaster General information Using your keypad  Press any button to power up the keypad. LCD which displays: ENTER CODE X X – X X X X X X If more locks are installed, LCD displays: SELECT LOCK Enter the lock number to select it.
  • Page 6 User instructions TechMaster  If a dynamic/activation code is entered more than 30 minutes WRONG DYNAMIC CODE before its beginning validity time, LCD displays:  If a dynamic/activation code is entered more than 30 minutes WRONG DYNAMIC CODE later than its beginning validity time, LCD displays: ...
  • Page 7 User instructions TechMaster = access to Manager menu, Manager ovr menu (if configured) Change code menu, Time menu, Configuration menu and Master menu. = System info and time and date info = Exit and back to the main menu = Master menu User properties and default codes Users can be programmed for opening with code only, code + Dallas key or with Dallas key only.

  • Page 8: Overview Functions

    It can be programmed for any lock. Available as option for Manager and users (not for Master). TechMaster keypad only works with Dallas keys created by TECNOSICUREZZA. Upon express request, the keypad can be set in order to work also with different Dallas key models.

  • Page 9: Opening The Locks

    The lock saves the last 6000 operations with time, date, user and operations description. The keypad can save the last 250 operations. It is possible to download the events for locks and keypad by using the Tecnosicurezza DMT Audit software. For further information refer to the IU_DMT_Audit_XX.

  • Page 10: Manager (Or Override Manager): Opening Without Time Delay

    User instructions TechMaster Enter an opening code and insert the Dallas key, if programmed. LCD OPEN displays: Open the lock within 3 seconds. Manager (or Override Manager): opening without time delay MANAGER CODE Power up the keypad. Press for opening with Manager code or X X X X X X press it two times for opening with Manager Ovr code.

  • Page 11: Opening With Dynamic Codes (Pin Option)

    User instructions TechMaster (Dyama or DyamaWeb), otherwise the last created code deletes all the previous ones (i.e. if three codes are created and the third one is used before using the first two ones, those first two codes are deleted). In...

  • Page 12: Master Menu

    User instructions TechMaster Enter the second opening code and insert the Dallas key, if programmed. OPEN LCD displays: Open the lock within 3 seconds. Master menu MASTER MENU Power up the keypad. Press and hold . LCD displays: X X X X X X X X Enter Master code (default value 1-2-3-4-5-6-7-8).

  • Page 13: Time Lock Settings

    User instructions TechMaster Enter the dynamic code generated by DyamaWeb software: LCD displays the current values for time and date. Press to enter the new time and date values and press confirm. DST Settings WARNING: it is recommended to enter this menu always with the door open.

  • Page 14: Weekly Time Lock Settings - Verify Or Delete Values

    User instructions TechMaster Press to save or for coming back to the first weekday. All values entered can be saved only by pressing Inside the Time Lock menu, opening time intervals are indicated: it means the safe can be opened by entering a valid code, but only inside the time interval itself (ex. opening time interval from 08.00 to 14.00 from Monday to Friday: the safe can be only opened from...

  • Page 15: Opening Periods - Add New Values

    User instructions TechMaster Enter the time of start and the ending time for the closing period, then press to confirm. Should the year be programmed, the closing period is not repeated. Should not the year be programmed (press ), the closing period is yearly repeated instead.

  • Page 16: Pc Connection

    User instructions TechMaster Enter a date and time for opening and closing, then press confirm. Should the year be programmed, the opening period is not repeated. Should not the year be programmed (press ), the opening period is yearly repeated instead.

  • Page 17: Dynamic Codes - Enabling/Disabling

    User instructions TechMaster  1 MANAGER Press . LCD displays:  2 AMMINISTRAT. “ ” installed, “_” deleted, “X” disabled. Select Manager by entering its reference number and press INSTALL? If the Manager is not installed, LCD displays: Press to confirm. Then enter the new Manager code and confirm OPERATION DONE it.

  • Page 18: Manager Menu

    User instructions TechMaster Manager menu Power up the keypad. MANAGER MENU Press , then press . LCD displays: Users Management Power up the keypad. Enter Manager menu and press until LCD USERS MANAGEMENT displays: 02 03 04 05 06 Press and press to scroll users list or enter user ID.

  • Page 19: Pc Connection

    User instructions TechMaster Power up the keypad. Enter Manager menu and press until LCD displays: Variable Time Delay – Adding new values Enter Variable Time Delay menu and press . LCD displays: ADD NEW VALUES hh:mm Press . LCD displays the current day of the week.

  • Page 20: Override Manager Menu

    User instructions TechMaster Press to stop the connection with PC. If the static codes have been deleted, PC connection can be enabled by using the dynamic user AUDIT. Override Manager menu Power up the keypad. OVR MANAGER MENU X X X X X X...

  • Page 21: Change Code For Manager

    User instructions TechMaster Enter the old code e insert the Dallas key (if programmed). Enter the new code e insert the Dallas key (if programmed). ENTER NEW CODE X X X X X X CONFIRM CODE Confirm the new code e insert the Dallas key (if programmed).
  • Page 22 User instructions TechMaster Time menu Power up the keypad. TIME MENU Press and then press until LCD displays: Opening extension WARNING: before using this function, at least one time lock must be programmed. MANAGER CODE Power up the keypad. Access Time Menu and press .
  • Page 23 User instructions TechMaster Power up the keypad. Access Configuration Menu. LCD displays: INSTALL LOCKS SELECT Press and select the lock to install. LOCK LOCK ALREADY If the lock selected is already installed, LCD displays: INSTALLED LOCK X If the lock selected is not connected with the keypad, LCD displays:...
  • Page 24 User instructions TechMaster LOCK RECLOSURE Press until the LCD displays: MODE MODE: Press . LCD displays: AUTOMATIC Press to select between AUTOMATIC and MANUAL mode. Press to confirm. With MANUAL, lock can be closed by pressing and holding for 2 seconds.
  • Page 25 User instructions TechMaster REMOVEE I/O Press until the LCD displays: INTERFACE MASTER CODE Press to confirm. LCD displays: X X X X X X X X Enter Master code. LCD displays: OPERATION DONE If Dynamic codes have been activated, along with the deletion of all static codes...
  • Page 26 User instructions TechMaster Press until the LCD displays: LANGUAGE LANGUAGE Press . LCD displays the current language set up: ENGLISH Press to change the language and press to confirm. Membrane test INSTALL Power up the keypad. Access Configuration Menu. LCD displays:...
  • Page 27 User instructions TechMaster OTC ID Press once: LCD displays the ID of the keypad in which dynamic XXXXXXXX codes have been activated. Press a second time: LCD displays the license number of DYAMAWEB DyamaWeb software version that manages the dynamic codes of the XXXXXX keypad and related locks.
  • Page 28 User instructions TechMaster Correct disposal of this product: (Waste Electrical & Electronic Equipment) Applicable in the European Union and other European countries with separate collection systems. This marking displayed on the product or its literature indicates that it should not be disposed with other wastes at the end of its working life.
