SMC Networks AMK20 Series Operation Manual page 21

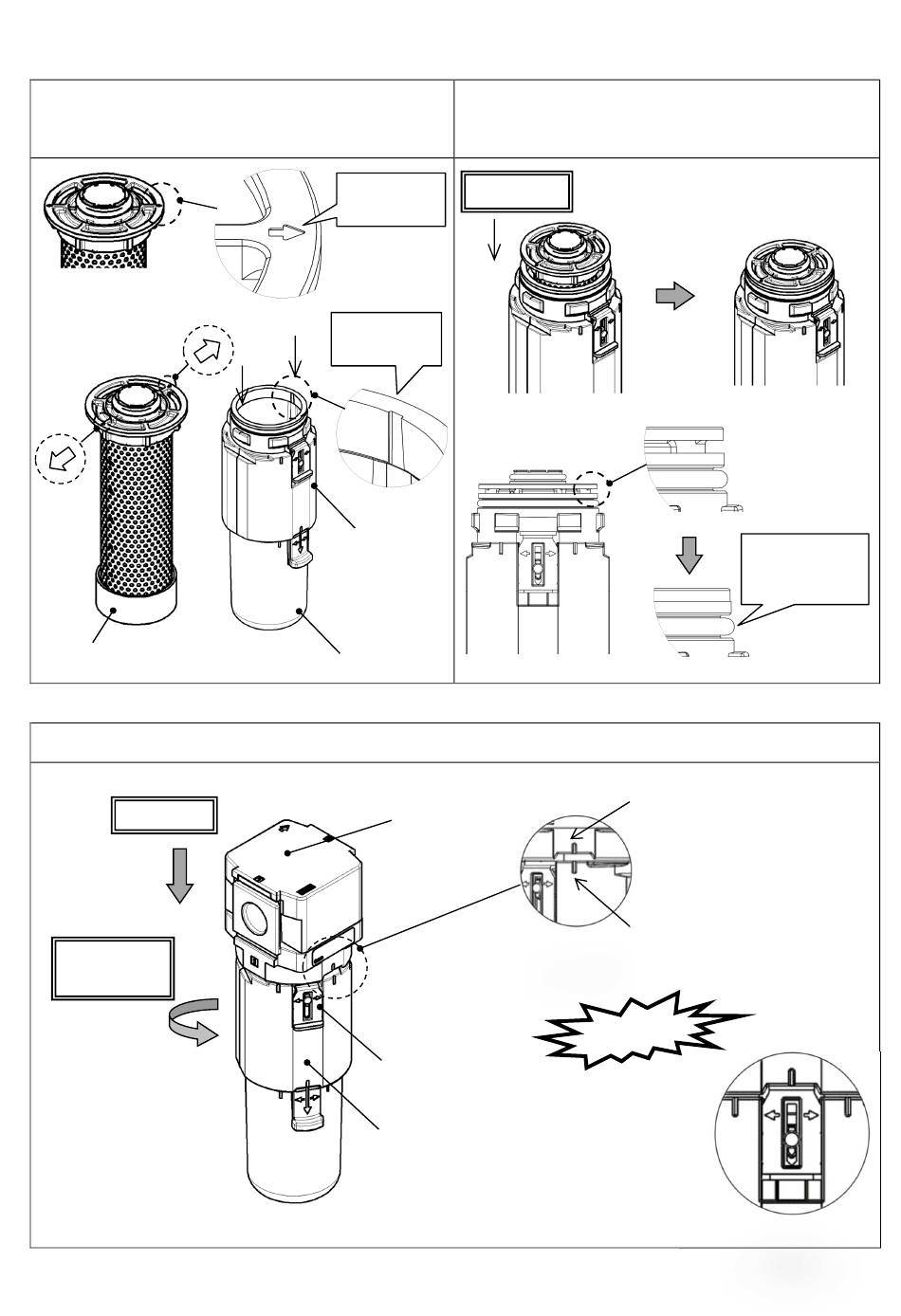

3.2) Element assembly - assembly [AMK30, AMK40]
Step 1
Aligh 2 arrow marks and 2 recessed areas of the joint.
① Element assembly
① Element assembly
Step 3
While the lock button is held down, mount the body and joint where their marks meet. Rotate the joint until the
lock button meets the body groove (approx. 30 degrees).
[Step 1]
Assemble
[Step 2]
30
degrees
Rotation
Step 2
Press the element downward until the element and
joint come into contact with each other completely. If
they are forced to be inserted without aligning, the
element will break.
Arrow mark of
Assemble
the element
(2 places)
Recessed area
of the joint
(2 places)
Joint
④ Bowl assembly
Body
Lock button
Joint
-20-
Mating mark of the body
Mating mark of the joint
Caution
Make sure that the lock
button is locked to the
grove of the product
before pressurizing it.
Make sure that
the joint and
element contact
completely
