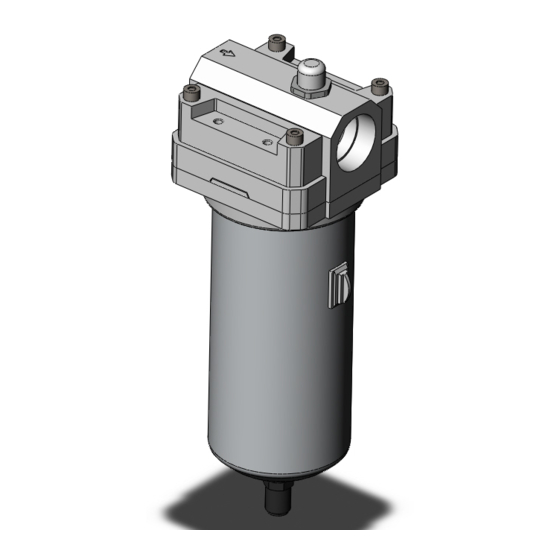

- Page 1 Doc. no. AMX-OMU0058-C PRODUCT NAME Air preparation filter MODEL / Series / Product Number Main Line Filter AFF70D, AFF80D, AFF90D Mist Separator AM70D, AM80D, AM90D Micro Mist Separator AMD70D, AMD80D, AMD90D...
-
Page 2: Table Of Contents
Doc. no. AMX-OMU0058-C Contents Page Safety Instructions 1. Be sure to read before use. 1-1. Handling Precautions 1-2. Installation/Piping 1-3. Maintenance 2. Application 3. Specifications 4. How to Order 5. Component name and spare parts list 6. Troubleshooting 7. Assembly and replacement procedure 7-1. -
Page 3: Safety Instructions
Doc. no. AMX-OMU0058-C Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Doc. no. AMX-OMU0058-C Safety Instructions Caution 1. The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
-
Page 5: Be Sure To Read Before Use
Doc. no. AMX-OMU0058-C 1. Be sure to read before use. 1-1. Handling Precautions Warning Confirm the specifications. This product is designed for use in compressed air systems only. Do not operate at conditions outside of the specification, as this could cause damage, malfunction or performance reduction. - Page 6 Doc. no. AMX-OMU0058-C Caution Model selection Although it depends on the types or specifications of the compressor, compressed air generally contains particle contaminants. Please select the system construction in reference to the model selection of air preparation equipment in accordance with the user required cleanliness of the compressed air or applications.
- Page 7 Doc. no. AMX-OMU0058-C Auto drain Pressurized Not pressurized (Pressure in the product: 0.1MPa or more) (After releasing residual pressure) Before drainage is When drainage is accumulated. accumulated. Drainage is released. Drainage is not released. Drainage is released. (Open) (Closed) (Open) <Manual release>...
-
Page 8: Installation/Piping
Doc. no. AMX-OMU0058-C 1-2. Installation/Piping Warning Installation location - Please install the product in a location where pulsation is unlikely to occur. When the difference between the inlet and outlet sides exceeds 0.1MPa, the element might be broken. - Install so that reverse pressure and back flow will not be generated. Otherwise, the element might be broken. - Page 9 Doc. no. AMX-OMU0058-C Piping - Before piping is connected, it should be thoroughly flushed with air or washed to remove chips, cutting oil and other debris from inside the pipe. - When screwing piping or fittings into ports, ensure that chips from the pipe threads or sealing material do not enter the piping.
-
Page 10: Maintenance
Doc. no. AMX-OMU0058-C 1-3. Maintenance Warning Perform maintenance inspections according to the procedure indicated in the Operation Manual. Incorrect handling of the product may cause breakage or malfunction of the equipment or device. Maintenance work If handled improperly, compressed air can be dangerous. Assembly, handling, repair and element replacement of pneumatic systems should be performed by a knowledgeable and experienced person. -
Page 11: Application
Collection of solid foreign matter (0.1 µm or more) in compressed air and separation of oil mist Collection of solid foreign matter (0.01 µm or more) in compressed air and separation of oil mist 3. Specifications 3-1.AFF Series Model AFF70D AFF80D AFF90D Port size 1, 1 1/2 1 1/2 1 1/2, 2 Weight 3.4kg... - Page 12 Doc. no. AMX-OMU0058-C 3-2.AM Series Model AM70D AM80D AM90D Port size 1、1 1/2 1 1/2 1 1/2、2 Weight 3.4kg 4.7kg 5.0kg Fluid Compressed air Note1) Inlet air pressure range 0.1 to 1.0MPa (1.6MPa) Operating fluid -5 to 60 C (No freezing) temperature Ambient temperature -5 to 60...
- Page 13 Doc. no. AMX-OMU0058-C 3-3.AMD Series Model AMD70D AMD80D AMD90D Port size 1、1 1/2 1 1/2 1 1/2、2 Weight 3.4kg 4.7kg 5.0kg Fluid Compressed air Note1) Inlet air pressure range 0.1 to 1.0MPa (1.6MPa) Operating fluid -5 to 60 C (No freezing) temperature Ambient temperature -5 to 60...
-
Page 14: How To Order
Doc. no. AMX-OMU0058-C 4 How to Order ＜Air preparation filter＞ Note1) Model Accessory Product Name Symbol Symbol Details Main Line Filter Note2) Bracket Mist Separator Note 1) Even when the accessories are selected, the product label does not include accessories (body only). Micro Mist Separator Note 2) Bracket is included but not assembled. -
Page 15: Component Name And Spare Parts List
Doc. no. AMX-OMU0058-C 5. Component name and spare parts list Component parts Part name Body Element Bowl Auto drain Flange Stopper Element service indicator Bracket Drain port spacer (10) Drain cock (10) Options and spare parts Description Part No. AFF-EL70D AFF-EL80D AFF-EL90D Element... -
Page 16: Troubleshooting
Doc. no. AMX-OMU0058-C 6. Troubleshooting Failure Possible causes Countermeasure Category Error Flow rate As pressure drop is Element is clogged. Replace the element. large, fluid does not flow. Air leaks out from the O-ring of the bowl is damaged. Replace the O-ring. Leakage gap between the bowl O-ring is included in the... -
Page 17: Assembly And Replacement Procedure
Doc. no. AMX-OMU0058-C 7. Assembly and replacement procedure 【Nominal No. of the tool】 Auto drain Bolt Lock nut Body size Nominal Width across Size size flats 7-1. Bracket assembly A) Mount the bracket to the product. B) Mount a washer to the 2 mounting bolts respectively, and hold the bracket to the product. Tightening torque is 6.2N･m for 70D, and 12.5 N･m for 80D and 90D. - Page 18 Doc. no. AMX-OMU0058-C C) Loosen the hexagon socket head cap screws with a hexagon wrench key while holding the flange by hand. After loosening all the bolts, lower the flange to the stopper slowly. In this operation, fingers should not be pinched between the flange and stopper. Hold the flange by hand.
- Page 19 Doc. no. AMX-OMU0058-C Remove the internal assembly which is mounted in the bowl. G) Mount a new internal assembly for auto drain to the bowl. Note: Mount the internal assembly so that the octagonal corners are not stuck to the square hole of the bowl.
- Page 20 Doc. no. AMX-OMU0058-C Insert the bowl locating tabs (2 parts) into the slots (2 parts) of the body, and rotate the bowl in the direction shown by the arrow below by approximately 10 degrees. Note: Check that the tabs of the bowl are visible from the square opening at the lower part of the piping port.
-
Page 21: Element Replacement
Doc. no. AMX-OMU0058-C 7-3. Element replacement A) Remove the bowl from the body [See Auto drain replacement C) to D)]. B) Remove the element and used O-ring. At this time, remove the support ring for easier removal. C) Insert an element (new) into the bowl and mount an O-ring (new) for the bowl. If the support ring is removed, mount the support ring before the O-ring for the bowl. -
Page 22: Dimensions
Doc. no. AMX-OMU0058-C 8. Dimensions ブラケット Bracket Auto drain (MAX1.6MPa) ブラケット Bracket (付属品) (accessory) 1/4″めねじ 1/4 female ドレン Drain Drain guide 3/8″めねじ 3/8 female ドレン Drain ねじ種類 Rc , G ：Φ10 Thread type Rc, G: NPT ：Φ3/8" Ø10 Drain ドレン... - Page 23 Doc. no. AMX-OMU0058-C Revision history A Service parts addition. October 2017 Change unit of water droplet. September 2018 Change Flow capacity. June 2019 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 URL http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
