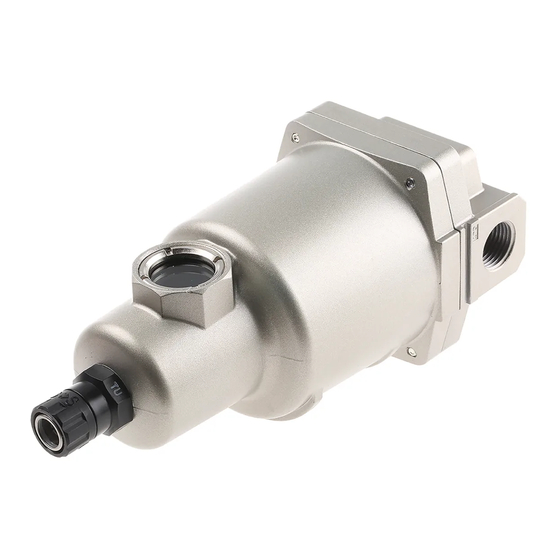

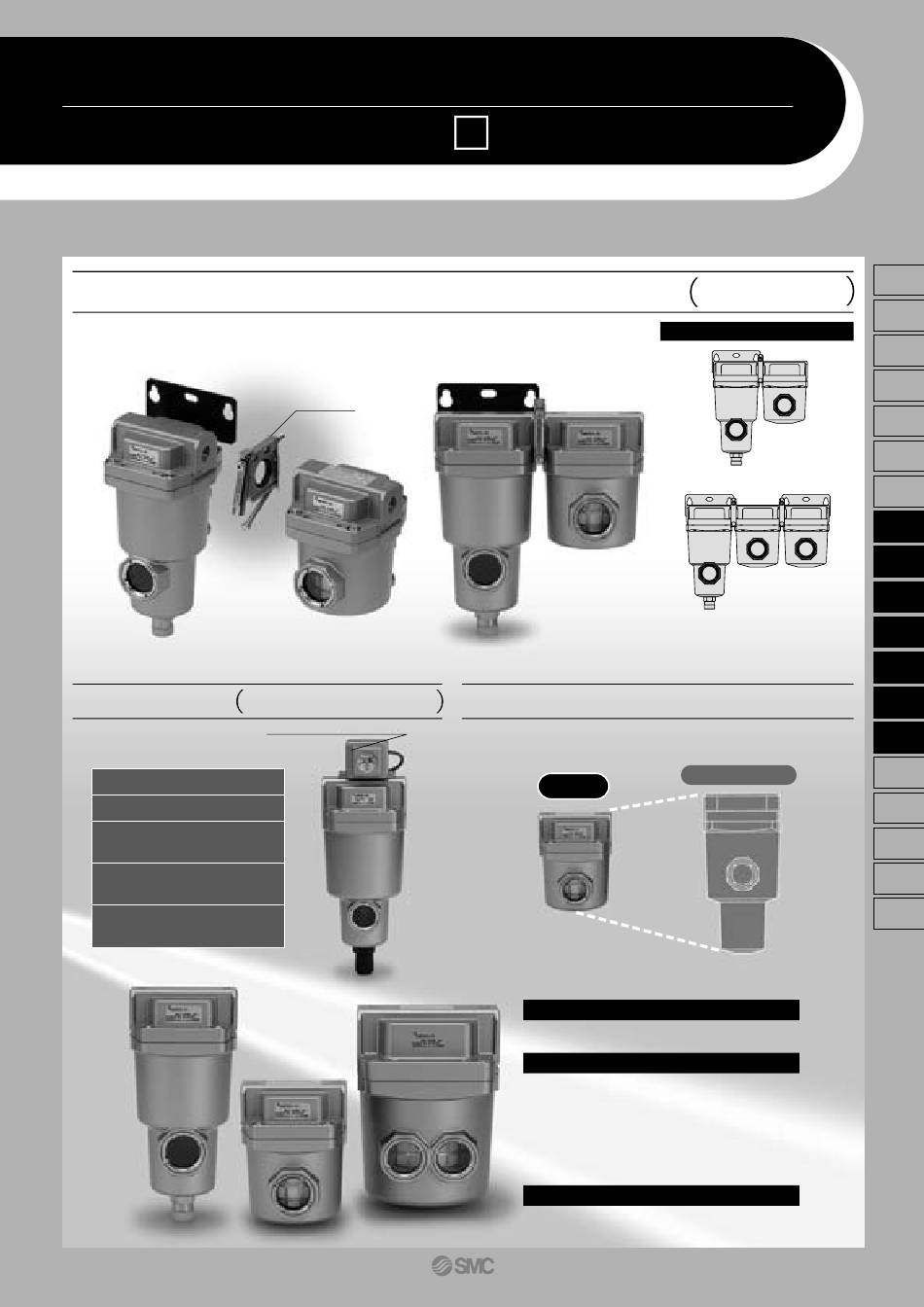

Page 1 Compressed Air Cleaning Filter Series AM / AFF Series For Water, Solid/Oil Separation and Deodorization AMG„C, AFF„C, AM„C, AMD„C Modular connection, Space-saving design, Labor-saving in piping! AMH„C, AME„C, AMF„C Uses the same spacer as the F.R.L. combination AC series. Modular connection example Possible to make a modular connection with products such as AR series regulator.
Page 2 Water droplet removal Water droplet removal Flow capacity l/min (ANR) Max. flow Model Port size Note Water Separator capacity at 0.7 MPa Water droplet inlet pressure separation rate: 99% 150C 1/8, 1/4 250C 1/4, 3/8 350C 1,500 3/8, 1/2 Piping 450C support 2,200...
Page 3 AM „ /AFF Series Dust filtration, Oil mist separation Dust filtration, Oil mist separation Dust filtration, Oil mist separation Flow capacity l/min (ANR) Max. flow Model Port size Note Micro Mist Separator capacity at 0.7 MPa with Pre-filter inlet pressure Built-in 0.3 μm pre-filter The AM + AMD element have been integrated to 150C...
Page 4 Compressed Air Cleaning Filter Series AM „ /AFF Series Water Nominal Oil mist density removal Series filtration rating at outlet Smell Page rate Water Separator Eliminates water droplets in the Series — — — compressed air. P.145 Main Line Filter 3 μm Eliminates impurities such as Series...
Page 5 Water Separator Series Model Can remove water droplets in com- Model AMG150C AMG250C AMG350C AMG450C AMG550C AMG650 AMG850 pressed air. Use this product in Note) 1500 2200 3700 6000 12000 Rated flow (l/min (ANR)) cases where “water must be avoided, Port size but not so dry as when an air dryer is Mass (kg)
Page 6 Series How to Order AMG150C to 550C AMG 550C Body size Made to Order 150C (“How to Order” and the applicable models are different from those 250C shown on this page. Be sure to refer to “Made to Order”.) 350C Symbol Description Page for details...
Page 7 Series Water Separator How to Order AMG650/850 AMG 650 Body size Made to Order (“How to Order” and the applicable models are different from those shown on this page. Be sure to refer to “Made to Order”.) Symbol Description Page for details —...
Page 8 Series Series Flow Characteristics Note) Compressed air over max. flow line in the table below may not meet the specifications of the product. It may cause damage to the element. AMG150C AMG450C AMG850 Max. flow line Max. flow line Air flow rate (l /min (ANR)) Air flow rate (l /min (ANR)) Air flow rate (m /min (ANR))
Page 9 Series Water Separator Construction AMG150C to 550C, AMG650 AMG850 IDFA IDFB Component Parts Note) Refer to “How to Order Bowl Assembly” on page 206. Description Material Note Chrome treated Body Aluminum die-casted Epoxy coating on Aluminum die-casted ∗ Housing inner surface Note) Sight glass is indicated in the figure for easy understanding of component parts.
Page 10 Series Dimensions AMG150C to 550C Auto drain C: With auto drain (N.C.) D: With auto drain (N.O.) Drain cock Gray: N.C. Black: N.O. ø10 One-touch fitting Combination of D: With auto drain (N.O.) and H: For medium air pressure Bracket (Accessory) 1/4 female threaded Option...
Page 11 Series Water Separator Dimensions AMG650 Auto drain D: With auto drain (N.O.) Drain cock: Black IDFA ø10 One-touch fitting IDFB Option J: Drain guide 1/4 female threaded Bracket (Accessory) 1/4 female threaded Drain AD„...
Page 12 Series Dimensions AMG850 Auto drain D: With auto drain (N.O.) for AMG850 3/8 female threaded Bracket (Accessory) Drain Rc 3/8 female threaded...
Page 13 Main Line Filter Series Model Can remove impurities such as oil, Model AFF2C AFF4C AFF8C AFF11C AFF22C AFF37B AFF75B AFF75A AFF125A AFF150A AFF220A water and foreign matter in com- Note) Rated flow 1500 2200 3700 6000 12000 12000 22000 28000 42000 (l/min (ANR)) pressed air and can improve the 50(2B) 80(3B) 100(4B) 100(4B)
Page 14 Series How to Order AFF2C to 22C AFF 22C Body size Made to Order Applicable compressor (“How to Order” and the applicable models are different from those shown Symbol Thread type output (guide) on this page. Be sure to refer to “Made to Order”.) Symbol Type 2.2 kW...
Page 15 Series Main Line Filter How to Order AFF37B/75B AFF 37B Body size Made to Order (“How to Order” and the applicable models are different from those shown on this Applicable compressor Symbol page. Be sure to refer to “Made to Order”.) output (guide) Symbol Description...
Page 16 Series Flow Characteristics /Select the model taking the max. flow capacity into consideration. (Element oil saturation) Note) Compressed air over max. flow line in the table below may not meet the specifications of the product. It may cause damage to the element. AFF2C AFF22C AFF75A...
Page 17 Series Main Line Filter Construction AFF2C to 22C, AFF37B AFF75B IDFA IDFB Component Parts Description Material Note Note) Refer to “How to Order Bowl Assembly” on page 206. Body Aluminum die-casted Chrome treated Aluminum die-casted ∗ Epoxy coating on inner surface Housing Note) Sight glass is indicated in the figure for easy understanding —...
Page 18 Series Dimensions AFF2C to 22C Auto drain C: With auto drain (N.C.) D: With auto drain (N.O.) Drain cock Gray: N.C. Black: N.O. ø10 One-touch fitting Combination of D: With auto drain (N.O.) and H: For medium air pressure Bracket (Accessory) 1/4 female threaded Option...
Page 19 Series Main Line Filter Dimensions AFF37B Auto drain D: With auto drain (N.O.) Drain cock: Black ø10 One-touch fitting IDFA IDFB Option J: Drain guide 1/4 female threaded Bracket (Accessory) 1/4 female threaded T: With element service indicator Drain AD„...
Page 20 Series Dimensions AFF75B Auto drain D: With auto drain (N.O.) for AFF75B 3/8 female threaded Bracket (Accessory) Option T: With element service indicator Drain Rc 3/8 female threaded AFF75A to 220A 3 x ø20 holes For foundation bolt Label Drain ORIENTATION (mm) Model...
Page 21 Mist Separator Series Model Can remove oil mist in compressed Model AM150C AM250C AM350C AM450C AM550C AM650 AM850 separate remove Note) 1500 2200 3700 6000 12000 Rated flow (l/min (ANR)) particles such as rust or carbon of Port size more than 0.3 μm. Mass (kg) 0.38 0.55...
Page 22 Series How to Order AM150C to 550C AM 550C Body size Made to Order Applicable compressor (“How to Order” and the applicable models are different from those Thread type Symbol output (guide) shown on this page. Be sure to refer to “Made to Order”.) Symbol Type 150C...
Page 23 Series Mist Separator How to Order AM650/850 AM 650 Body size Made to Order Applicable compressor Symbol output (guide) (“How to Order” and the applicable models are different from those shown on this page. Be sure to refer to “Made to Order”.) 37 kW Symbol Description...
Page 24 Series Flow Characteristics (Element oil saturation) Note) Compressed air over max. flow line in the table below may not meet the specifications of the product. It may cause damage to the element. AM150C AM450C AM850 Max. flow line Max. flow line Max.
Page 25 Series Mist Separator Construction AM150C to 550C, AM650 AM850 IDFA IDFB Component Parts Description Material Note Note) Refer to “How to Order Bowl Assembly” on page 206. Body Aluminum die-casted Chrome treated Aluminum die-casted ∗ Epoxy coating on inner surface Housing Note) Sight glass is indicated in the figure for easy understanding of —...
Page 26 Series Dimensions AM150C to 550C Auto drain C: With auto drain (N.C.) D: With auto drain (N.O.) Drain cock Gray: N.C. Black: N.O. ø10 One-touch fitting Combination of D: With auto drain (N.O.) and H: For medium air pressure Bracket (Accessory) 1/4 female threaded Option...
Page 27 Series Mist Separator Dimensions AM650 Auto drain D: With auto drain (N.O.) Drain cock: Black ø10 One-touch fitting IDFA IDFB Option J: Drain guide 1/4 female threaded Bracket (Accessory) 1/4 female threaded T: With element service indicator Drain AD„...
Page 28 Series Dimensions AM850 Auto drain D: With auto drain (N.O.) for AM850 3/8 female threaded Option T: With element service indicator Bracket (Accessory) Drain Rc 3/8 female threaded...
Page 29 Micro Mist Separator Series Model Can separate and remove aerosol Model AMD150C AMD250C AMD350C AMD450C AMD550C AMD650 AMD850 state oil mist in compressed air and Note) 1000 2000 3700 6000 12000 Rated flow (l/min (ANR)) remove particles such as carbon or dust of more than 0.01 μm.
Page 30 Series How to Order AMD150C to 550C AMD 550C Body size Made to Order Thread type 150C (“How to Order” and the applicable models are different from those shown 250C Symbol Type on this page. Be sure to refer to “Made to Order”.) 350C Symbol Description...
Page 31 Series Micro Mist Separator How to Order AMD650/850 AMD 650 Made to Order Body size (“How to Order” and the applicable models are different from Thread type ∗ Option those shown on this page. Be sure to refer to “Made to Order”.) Symbol Type Symbol...
Page 32 Series Flow Characteristics /Select the model taking the max. flow capacity into consideration. ( Element oil saturation Initial condition) Note) Compressed air over max. flow line in the table below may not meet the specifications of the product. It may cause damage to the element. AMD150C AMD550C AMD9„0/9„1...
Page 33 Series Micro Mist Separator Construction AMD150C to 550C, AMD650 AMD850 IDFA IDFB Component Parts Description Material Note Note) Refer to “How to Order Bowl Assembly” on page 206. Body Aluminum die-casted Chrome treated Aluminum die-casted ∗ Epoxy coating on inner surface Housing Note) Sight glass is indicated in the figure for easy understanding of Sight glass...
Page 34 Series Dimensions AMD150C to 550C Auto drain C: With auto drain (N.C.) D: With auto drain (N.O.) Drain cock Gray: N.C. Black: N.O. ø10 One-touch fitting Combination of D: With auto drain (N.O.) and H: For medium air pressure Bracket (Accessory) 1/4 female threaded Option...
Page 35 Series Micro Mist Separator Dimensions AMD150C to 550C, AMD650 Auto drain D: With auto drain (N.O.) Drain cock: Black ø10 One-touch fitting IDFA IDFB Option J: Drain guide 1/4 female threaded Bracket (Accessory) 1/4 female threaded T: With element service indicator Drain AD„...
Page 36 Series Dimensions AMD850 Auto drain D: With auto drain (N.O.) for AMD850 3/8 female threaded Option T: With element service indicator Bracket (Accessory) 2 x port size Drain Rc 3/8 female threaded...
Page 37 Series Micro Mist Separator Dimensions AMD801/811/9„1 ORIENTATION IDFA IDFB Label (mm) Model Connection (Flange) ø ø AMD801/811 150(6B) 1033 50(2B)JIS 10K FF flange AMD9„1 300(12B) 1318 50(2B), 80(3B), 100(4B)JIS 10K FF flange AMD800/810/9„0/10„0 ORIENTATION 3 x øH holes AD„ Label Drain (mm) Model...
Page 39 Max. flow varies depending on the operating pressure. Refer to “Flow Characteristics” (page 182) and “Maximum Air Flow” below. The conventional pneumatic pres- sure line, AM series + AMD series Specifications have been integrated to achieve a reduction in installation space and...
Page 40 Series How to Order AMH150C to 550C AMH 550C Body size Made to Order Thread type 150C (“How to Order” and the applicable models are different from those shown 250C Symbol Type on this page. Be sure to refer to “Made to Order”.) 350C Symbol Description...
Page 41 Series Micro Mist Separator with Pre-filter How to Order AMH650/850 AMH 650 Body size Made to Order (“How to Order” and the applicable models are different from those shown on this page. Be sure to refer to “Made to Order”.) Symbol Description Page for details...
Page 42 Series Flow Characteristics /Select the model taking the max. flow capacity into consideration. ( Element oil saturation Initial condition) Note) Compressed air over max. flow line in the table below may not meet the specifications of the product. It may cause damage to the element. AMH150C AMH450C AMH850...
Page 43 Series Micro Mist Separator with Pre-filter Construction AMH150C to 550C, AMH650 AMH850 IDFA IDFB Component Parts Description Material Note Note) Refer to “How to Order Bowl Assembly” on page 206. Body Aluminum die-casted Chrome treated Aluminum die-casted ∗ Epoxy coating on inner surface Housing Note) Sight glass is indicated in the figure for easy understanding of Sight glass...
Page 44 Series Dimensions AMH150C to 550C Auto drain C: With auto drain (N.C.) D: With auto drain (N.O.) Drain cock Gray: N.C. Black: N.O. ø10 One-touch fitting Combination of D: With auto drain (N.O.) and H: For medium air pressure Bracket (Accessory) 1/4 female threaded Option...
Page 45 Series Micro Mist Separator with Pre-filter Dimensions AMH650 Auto drain D: With auto drain (N.O.) Drain cock: Black ø10 One-touch fitting IDFA IDFB Option J: Drain guide 1/4 female threaded Bracket (Accessory) 1/4 female threaded T: With element service indicator Drain AD„...
Page 46 Series Dimensions AMH850 Auto drain D: With auto drain (N.O.) for AMH850 3/8 female threaded Option T: With element service indicator Bracket (Accessory) Drain Rc 3/8 female threaded...
Page 47 Super Mist Separator Series Model Model AME150C AME250C AME350C AME450C AME550C AME650 AME850 Can separate and adsorb aerosol Note) state fine oil particles in com- 1000 2000 3700 6000 12000 Rated flow (l/min (ANR)) pressed air and change the oil lubri- Port size cating compressed air to oilless air or equivalent.
Page 48 Series How to Order AME150C to 550C AME 550C Body size Option 150C Symbol Description 250C — 350C Rubber material: Fluororubber 450C For medium air pressure (1.6 MPa) 550C IN-OUT reversal direction Degreasing wash, ∗ white vaseline ∗3 Only body/housing is degreasing washed. Thread type Symbol Type...
Page 49 Series Super Mist Separator How to Order AME650/850 AME 650 Body size Made to Order (“How to Order” and the applicable models are different from those shown on this page. Be sure to refer to the page “Made to Order”.) Description Page for details Symbol...
Page 50 Series Flow Characteristics (Element initial condition) Note) Compressed air over max. flow line in the table below may not meet the specifications of the product. It may cause damage to the element. AME150C AME450C AME650 Max. flow line Max. flow line Max.
Page 51 Series Super Mist Separator Construction AME150C to 550C AME650/850 IDFA IDFB Component Parts Note) Refer to “How to Order Bowl Assembly” on page 206. Description Material Note Body Aluminum die-casted Chrome treated Aluminum die-casted ∗ Note) Sight glass is indicated in the figure for easy understanding of Epoxy coating on inner surface Housing component parts.
Page 52 Series Dimensions AME150C to 350C Bracket (Accessory) (mm) Bracket related dimensions Model Port size AME150C 1/8, 1/4 98.5 AME250C 1/4, 3/8 AME350C 3/8, 1/2...
Page 53 Series Super Mist Separator Dimensions AME450C/550C IDFA IDFB Bracket (Accessory) AD„ (mm) Bracket related dimensions Model Port size AME450C 1/2, 3/4 AME550C 3/4, 1...
Page 54 Series Dimensions AME650/850 Bracket (Accessory) 2 x port size (mm) Bracket related dimensions Model Port size AME650 — AME850 —...
Page 55 Odor Removal Filter Series Model Efficiently can remove odor in com- Model AMF150C AMF250C AMF350C AMF450C AMF550C AMF650 AMF850 pressed air with an activated carbon Note) 1000 2000 3700 6000 12000 Rated flow (l/min (ANR)) element. The unit is designed for use in the area such as a clean room Port size where odors must be avoided.
Page 56 Series How to Order AMF150C to 550C AMF 550C Body size Option 150C Symbol Description 250C — 350C Rubber material: Fluororubber 450C For medium air pressure (1.6 MPa) 550C IN-OUT reversal direction Degreasing wash, white vaseline 3 Only body/housing is degreasing washed. Thread type Symbol Type...
Page 57 Series Odor Removal Filter How to Order AMF650/850 AMF 650 Made to Order Body size (“How to Order” and the applicable models are different from those shown on this page. Be sure to refer to “Made to Order”.) Symbol Description Page for details Thread type —...
Page 58 Series Flow Characteristics /Refer to “Model Selection” on page 197. (Element initial condition) Note) Compressed air over max. flow line in the table below may not meet the specifications of the product. It may cause damage to the element. AMF150C AMF550C AMF900/901 Max.
Page 59 Series Odor Removal Filter Construction AMF150C to 550C AMF650/850 IDFA IDFB Component Parts Note) Refer to “How to Order Bowl Assembly” on page 206. Material Note Description Body Aluminum die-casted Chrome treated Note) Sight glass is indicated in the figure for easy understanding of Aluminum die-casted ∗...
Page 60 Series Dimensions AMF150C to 350C Bracket (Accessory) (mm) Bracket related dimensions Model Port size AMF150C 1/8, 1/4 98.5 AMF250C 1/4, 3/8 AMF350C 3/8, 1/2...
Page 61 Series Odor Removal Filter Dimensions AMF450C/550C IDFA IDFB Bracket (Accessory) AD„ (mm) Bracket related dimensions Model Port size AMF450C 1/2, 3/4 AMF550C 3/4, 1...
Page 62 Series Dimensions AMF650/850 Bracket (Accessory) 2 x port size (mm) Bracket related dimensions Model Port size AMF650 — AMF850 —...
Page 63 Series Odor Removal Filter Dimensions AMF801/901 ORIENTATION IDFA IDFB Label (mm) Model Connection (Flange) ø ø AMF801 50 (2B) JIS 10K FF flange 150 (6B) AMF901 300 (12B) 1093 50 (2B), 80 (3B), 100 (4B) JIS 10K FF flange AMF800/900/1000 ORIENTATION 3 x øH holes AD„...
Page 64 Series Spacer for Modular Connection Select a spacer from those listed below when combining modular type AFF2C to 22C, AM„150C to 550C. The spacer must be ordered separately. (Note: Spacer with bracket (Y200T to Y600T) cannot be used.) Caution Modular connection Mount the attached bracket on one side when connecting 2 sets.
Page 65 Optional Accessory Piping Adapter (Width across flats) Female thread side Male thread side Dimensions (mm) Thread type and port size IDFA Part no. Male thread Female thread Material side side IDF-AP609 R 3/8 NPT 3/8 Brass IDFB AD„...
Page 66 Bowl Assembly AFF-CA „ /AM „ -CA „ Bowl Assembly Bowl assembly for the AFF and AM„ series can be replaced without removing the main body from piping if the drain exhaust specification is to be changed from the drain cock type to the auto drain type or if the bowl has been damaged. How to Order Bowl Assembly AFF2C to 22C, AM, AMD, AMH, AMG150C to 550C AM CA...
Page 67 AFF-CA „ /AM „ -CA „ Bowl Assembly How to Order Bowl Assembly Series AM, AMD, AMH, AMG Thread type Note 3) Symbol Type Body size Note 3) Corresponded to the drain exhaust symbol D and J. Select according to the body thread type.
Page 68 AFF-CA „ /AM „ -CA „ Series AFF, AM, AMD, AMH, AMG Dimensions: Size: AFF2C to 22C, AFF37B, AM„150C to 550C, AM„650 Note 1) Note 1) Note 1) M5 female threaded female threaded female threaded Note 2) For Rc, G: ø10 Drain Drain Drain...
Page 69 AFF-CA „ /AM „ -CA „ Bowl Assembly Series AME, AMF Dimensions: AME150C to 550C, AMF150C to 550C IDFA IDFB (mm) Series AME, AMF Size AME650/850, AMF650/850 AD„ (mm) Series AME, AMF Size...
Page 70: Table Of Contents
Compressed Air Cleaning Filter Series Made to Order/Special Specifications Please consult with SMC for detailed specifications, size and delivery. Made to Order Applicable model Reference Contents Symbol page 1. With Differential Pressure Gauge (GD40-2-01) P.211 2. With Differential Pressure Switch (With Indicator) 3.
Page 71: With Differential Pressure Gauge
Compressed Air Cleaning Filter Series Made to Order Specifications 1 Please consult with SMC for detailed specifications, size and delivery. 2. With Differential Pressure Switch 1. With Differential Pressure Gauge (GD40-2-01) (With indicator) (125 VAC, 30 VDC) A differential pressure gauge that keeps track of the filter life is instal- led on the filter itself.
Page 72: With In-Out Flange
Compressed Air Cleaning Filter Series Made to Order Specifications 2 Please consult with SMC for detailed specifications, size and delivery. 3. With IN-OUT Flange 4. With Differential Pressure Gauge (GD40-2-01), IN-OUT Flange Makes flange piping easier when filter ports on IN and OUT are The differential pressure gauge is mounted on the main body to moni- flange connection.
Page 73: N.c., N.o. Auto Drain, Drain Piping Type
Compressed Air Cleaning Filter Series Made to Order Specifications 3 Please consult with SMC for detailed specifications, size and delivery. 5. N.C., N.O. Auto Drain, Drain Piping Type 6. White Vaseline Specifications Drain piping type (drain guide specification) to the drain exhaust from Changed the grease for O-rings and gaskets as lubricant to white N.C.
Page 74: Mist Separator For High Flow Rate (0.3 Μm)
Compressed Air Cleaning Filter Series Made to Order Specifications 4 Please consult with SMC for detailed specifications, size and delivery. 7. Mist Separator for High Flow Rate (0.3 μm) Use this product when the conventional mist separator (Series AM) cannot dispose of a high flow rate. The specifications other than the nominal filtration rating are all equivalent to that of the AFF75A to 220A.
Page 75: Special Specifications
Compressed Air Cleaning Filter Series Special Specifications Please consult with SMC for detailed specifications, size and delivery. Clean Series (10-Series) Copper-free, Fluorine-free (20-Series) Clean Series products are used in cleaner environments such as in To eliminate effects on color CRTs, etc. by copper ion or fluorine clean rooms as compared to a general factory environment.
Page 76 AM „ /AFF Series Specific Product Precautions 1 Be sure to read before handling. Refer to front matters 42 and 43 for Safety Instructions and pages 6 to 8 for Air Preparation Equipment Precautions. Design Caution Warning 1. Hold the female thread side and tighten to the rec- 1.
Page 77 AM „ /AFF Series Specific Product Precautions 2 Be sure to read before handling. Refer to front matters 42 and 43 for Safety Instructions and pages 6 to 8 for Air Preparation Equipment Precautions. Selection Piping Caution Caution 1. About the system composition of purifying com- 1.
Page 78 AM „ /AFF Series Specific Product Precautions 3 Be sure to read before handling. Refer to front matters 42 and 43 for Safety Instructions and pages 6 to 8 for Air Preparation Equipment Precautions. Air Supply Maintenance Caution Caution 1. The mist separator is not applicable to gases other 1.
Page 79 AM „ /AFF Series Specific Product Precautions 4 Be sure to read before handling. Refer to front matters 42 and 43 for Safety Instructions and pages 6 to 8 for Air Preparation Equipment Precautions. Maintenance Others Caution Caution 1. Element interchange 3.
Page 80 AM „ /AFF Series Specific Product Precautions 5 Be sure to read before handling. Refer to front matters 42 and 43 for Safety Instructions and pages 6 to 8 for Air Preparation Equipment Precautions. Others Caution 5. Internal volume of filter container The product can be used as a small capacity air tank by re- moving the element.
Page 81 Modular/F.R.L. Units Series AF„ AW„ A„G AF800 AF900...
Page 82 Modular F.R.L. Units Series Improved installation Improved visibility for lubricant drip Bracket with spacer with graduation for lubricant control Retainer Graduation Spacer with bracket Lever pin q Attach the component into the fitting of the spacer with bracket. w Lock the lever pin into the retainer. (temporary installation) Embedded Bolt pressure gauge...
Page 83 Series Configuration Port size Product Model Page M5 x 0.8 Air Filter + Regulator + Lubricator AC10 AC20 AC25 AC30 AC40 AC40-06 AC50 AC55 AC60 Filter Regulator + Lubricator AC10A AC20A AC30A AC40A AC40A-06 AC50A AC60A Air Filter + Regulator AC10B AC20B AC25B...
Page 84 Series Configuration Port size Product Model Page M5 x 0.8 AF10 AF20 AF30 AF40 AF40-06 AF50 AF60 AFM20 AFM30 AFM40 AFM40-06 AFD20 AFD30 AFD40 AFD40-06 AR10 AR20 AR25 AR30 AR40 AR40-06 AR50 AR60 AR„K AR20K AR25K AR30K AR40K AR40K-06 AR50K AR60K...
Page 85 Series Configuration Port size Product Model Page M5 x 0.8 AL10 AL20 AL30 AL40 AL40-06 AL50 AL60 AW10 AW20 AW30 AW40 AW40-06 AW60 AW„K AW20K AW30K AW40K AW40K-06 AW60K AWM20 AWM30 AWM40 AWD20 AWD30 AWD40 AF„ Simple Specials System A system designed to respond quickly and easily to your special ordering needs.
Page 86 Air Combination Air Filter + Regulator + Lubricator AC10 AC60 JIS Symbol Air Filter Regulator Lubricator How to Order AC 30 03 DE • Option/Semi-standard: Select one each for a to m. • Option/Attachment/Semi-standard symbol: When more than one specification is required, indicate in alphanumeric order. Example) AC30-F03DE1-KSTV-136NR Symbol Description...
Page 87 AC10 AC60 Series Air Combination AC20 AC40 Symbol Description Body size With drain cock Drain guide 1/8 Filter Note 9) Note 8) drain port Drain guide 1/4 Note 10) Drain cock with barb fitting: For ø6 x ø4 nylon tube Lubricator Without drain cock lubricant...
Page 88 AC10 AC60 Series Flow Characteristics (Representative values) Condition: Inlet pressure 0.7 MPa AC10 AC20 AC25 M5 x 0.8 Rc1/4 Rc3/8 1000 1500 Flow rate ( /min (ANR)) Flow rate ( /min (ANR)) Flow rate ( /min (ANR)) AC30 AC40 AC40-06 Rc3/8 Rc1/2 Rc3/4...
Page 89 AC10 AC60 Series Air Combination Pressure Characteristics (Representative values) Conditions: Inlet pressure 0.7 MPa, Outlet pressure 0.2 MPa, Flow rate 20 l/min (ANR) AC50 AC55 AC60 0.25 0.25 0.25 point point point 0.15 0.15 0.15 Inlet pressure (MPa) Inlet pressure (MPa) Inlet pressure (MPa) Specific Product Precautions Be sure to read before handling.
Page 90 AC10 AC60 Series Dimensions AC10, AC20 AC25 to AC60 (Pressure gauge port size) (Pressure gauge port size) (Port size) (Port size) Drain Regulator Lubricator Drain Filter Air Filter Regulator Lubricator AC20 to AC60 AC10 to AC60 AC20 to AC60 Applicable model Option Square embedded type pressure gauge Digital pressure switch...
Page 91 AF„ AW„ A„G AF800 AF900...
Page 92 Air Combination Filter Regulator + Lubricator AC10A AC60A JIS Symbol Filter Regulator Lubricator How to Order 03 DE • Option/Semi-standard: Select one each for a to l. • Option/Attachment/Semi-standard symbol: When more than one specification is required, indicate in alphanumeric order. Example) AC30A-F03DE1-KSV-136NR Symbol Description...
Page 93 AC10A AC60A Series Air Combination AC20A AC40A Symbol Description Body size Lubricator Without drain cock lubricant Lubricator with drain cock exhaust port Relieving type Exhaust mechanism Non-relieving type Flow direction: Left to right Flow direction Flow direction: Right to left Name plate and pressure gauge in imperial units: MPa Name plate, caution plate for bowl, and pressure gauge in imperial units: psi, °F Note 11)
Page 94 AC10A AC60A Series Dimensions AC10A, AC20A AC30A to AC60A (Port size) (Pressure gauge port size) (Pressure gauge port size) (Port size) Drain Filter Lubricator Regulator Drain Filter Lubricator Regulator AC20A to AC60A AC10A to AC60A AC20A to AC60A Applicable model Option Square embedded type pressure gauge Digital pressure switch...
Page 95 AF„ AW„ A„G AF800 AF900...
Page 96 Air Combination Air Filter + Regulator JIS Symbol AC10B AC60B Air Filter Regulator How to Order • Option/Semi-standard: Select one each for a to j. 03 DE • Option/Attachment/Semi-standard symbol: When more than one specification is required, indicate in alphanumeric order. Example) AC30B-F03DE1-SV-16NR Symbol Description...
Page 97 AC10B AC60B Series Air Combination AC20B AC40B Symbol Description Body size Relieving type Exhaust mechanism Non-relieving type Flow direction: Left to right Flow direction Flow direction: Right to left Name plate and pressure gauge in imperial units: MPa Note 13) Note 13) Note 13) Note 13)
Page 98 AC10B AC60B Series Dimensions AC10B, AC20B AC25B to AC60B (Pressure gauge port size) (Pressure gauge port size) (Port size) (Port size) Drain Air Filter Regulator Drain Air Filter Regulator AC20B to AC60B AC10B to AC60B AC20B to AC60B Applicable model Option Square embedded type pressure gauge Digital pressure switch...
Page 99 AF„ AW„ A„G AF800 AF900...
Page 100 Air Combination Air Filter + Mist Separator + Regulator AC20C AC40C JIS Symbol Air Filter Mist Separator Regulator How to Order • Option/Semi-standard: Select one each for a to j. 03 DE • Option/Attachment/Semi-standard symbol: When more than one specification is required, indicate in alphanumeric order. Example) AC30C-F03DE1-SV-16NR Symbol Description...
Page 101 AC20C AC40C Series Air Combination AC20C AC40C Symbol Description Body size Flow direction: Left to right Flow direction Flow direction: Right to left Name plate and pressure gauge in imperial units: MPa Name plate, caution plate for bowl, and pressure gauge in imperial units: psi, °F Note 11) Note 13) Note 13)
Page 102 AC20C AC40C Series Dimensions AC20C AC25C to AC40C-06 (Pressure gauge port size) (Pressure gauge port size) (Port size) (Port size) Drain Drain Air Filter Mist Regulator Separator Drain Drain Air Filter Mist Regulator Separator AC20C to AC40C-06 Applicable model Option Square embedded type pressure gauge Digital pressure switch Round type pressure gauge Round type pressure gauge (with color zone)
Page 103 AF„ AW„ A„G AF800 AF900...
Page 104 Air Combination Filter Regulator + Mist Separator JIS Symbol AC20D AC40D Filter Regulator Mist Separator How to Order • Option/Semi-standard: Select one each for a to j. 03 DE • Option/Attachment/Semi-standard symbol: When more than one specification is required, indicate in alphanumeric order. Example) AC30D-F03DE1-SV-16NR Symbol Description...
Page 105 AC20D AC40D Series Air Combination AC20D AC40D Symbol Description Body size Name plate and pressure gauge in imperial units: MPa Name plate, caution plate for bowl, and pressure gauge in imperial units: psi, °F Pressure unit Note 11) Note 13) Note 13) Note 13) Note 12)
Page 106 AC20D AC40D Series Dimensions AC20D AC30D to AC40D-06 (Pressure gauge port size) (Pressure gauge port size) (Port size) (Port size) Drain Drain Filter Mist Regulator Separator Drain Drain Filter Mist Regulator Separator AC20D to AC40D-06 Applicable model Option Square embedded type pressure gauge Digital pressure switch Round type pressure gauge Round type pressure gauge (with color zone) Center of...
Page 107 Air Combination Series Options/Attachments Options/Attachments Part No. Part no. AC20 AC25 AC30 AC40 AC40-06 AC50 AC55 AC60 AC10 Model AC20A AC30A AC40A AC40A-06 AC50A AC60A AC10A — — AC20B AC30B AC40B AC40B-06 AC10B AC25B AC50B AC55B AC60B AC20C AC25C AC30C AC40C AC40C-06 Type...
Page 108 Series Pressure Switch: (S) A compact integrated pressure switch can be easily installed and facilitates the pressure detection of the line. IS1000M JIS Symbol Pressure switch Description Symbol Body size Set pressure Lead wire length Pressure display range 0.5 m 0.1 to 0.4 MPa Note) 0.5 m...
Page 109 Series Attachments Pressure Relief 3 Port Valve: (V) With the use of a 3-port valve for residual pressure release, pressure left in the line can be easily exhausted. JIS Symbol 3-port valve for • Semi-standard: Select one each for a to b. residual pressure •...
Page 110 Series Piping Adapter: M5 x 0.8, 1/8, 1/4, 3/8, 1/2, 3/4, 1 Port size A piping adapter allows Model Note 1) Port size Applicable model installation/removal of the E100-M5 AC10„, AW10, AF10, AR10, AL10 M5 x 0.8 E200-„01 AC20„ component without removing E200-„02 AF20, AR20„, AW20„...
Page 111 Series Spacers/Brackets Accessories Spacer Center of F.R.L. body Y200 Y400 Model Applicable model Y100 AC10, AC10A, AC10B Seal Y200 AC20„ 35.5 18.5 Y300 AC25„, AC30„ Y400 AC40„ Y500 AC40„-06 AC50, AC55, AC60 (Spacer width) Y600 75.5 AC50A, AC60A AC50B, AC55B, AC60B Replacement Parts Part no.
Page 112 Series Mounting Position for Spacer with Bracket Bracket Pressure 3-port valve for Check valve: K T-interface: switch: S residual pressure: V SUP. Bracket Attachment Model AC10 — — — — — — — — — — — — — — —...
Page 113 Modular Type Air Filters Series Air Filter Filtration Model Port size Options (μm) Series AF10 M5 x 0.8 AF20 1/8, 1/4 AF30 1/4, 3/8 Bracket AF40 1/4, 3/8, 1/2 Float type auto drain AF40-06 AF50 3/4, 1 AF60 Page 328 through to 336 Mist Separator AFM20 1/8, 1/4...
Page 114 Air Filter AF10 AF60 JIS Symbol Air Filter Air Filter with Auto Drain AF20 AF40 How to Order AF 30 03 BD • Option/Semi-standard: Select one each for a to f. • Option/Semi-standard symbol: When more than one specification is required, indicate in alphanumeric order.
Page 115 AF10 AF60 Series Air Filter Standard Specifications Model AF10 AF20 AF30 AF40 AF40-06 AF50 AF60 Port size M5 x 0.8 1/8, 1/4 1/4, 3/8 1/4, 3/8, 1/2 3/4, 1 Fluid Ambient and fluid temperature –5 to 60°C (with no freezing) Proof pressure 1.5 MPa Maximum operating pressure...
Page 116 AF10 AF60 Series Flow Characteristics (Representative values) AF10 AF20 AF30 Rc1/4 Rc3/8 0.10 0.10 0.10 0.08 0.08 0.08 0.06 0.06 0.06 0.04 0.04 0.04 0.02 0.02 0.02 1000 1500 1000 2000 3000 4000 Flow rate ( /min (ANR)) Flow rate ( /min (ANR)) Flow rate ( /min (ANR))
Page 117 AF10 AF60 Series Air Filter Working Principle: Float Type Auto Drain N.O. type: AD38, AD48 N.C. type: AD37, AD47 Compact auto drain N.C. type: AD17, AD27 Bowl Bowl Valve Valve Lever Lever Bowl Float Float Float Valve seat Valve seat Lever Chamber Chamber...
Page 118 AF10 AF60 Series Construction AF50, AF60 AF10, AF20 AF30 to AF40-06 Drain Drain Drain Component Parts Description Material Model Color Zinc die-cast AF10, AF20 Body Platinum silver Aluminum die-cast AF30 to AF60 Aluminum die-cast Housing AF50, AF60 Platinum silver Replacement Parts Part no.
Page 119 AF10 AF60 Series Air Filter Dimensions AF10, AF20 AF50, AF60 Bracket Bracket (Option) (Option) (Port size) Drain AF30 to AF40-06 (Port size) Bracket (Option) Drain (Port size) Drain AF10/20 AF20 AF30 to AF60 Applicable model Optional/Semi-standard With auto drain (N.C.) Metal bowl With drain guide With auto drain (N.O./N.C.)
Page 120 Air Filter AF10 to AF60 Made to Order Specifications: Please contact SMC for detailed dimensions, specifications, and lead times. q Special Temperature Environment w High Pressure Special materials are used in the manufacturing of seals and Strong materials are used in the manufacturing of air filters resin parts to allow them to withstand various temperature intended for high pressure operation.
Page 121 AF10 AF60 Series Air Filter e Long Bowl Drain capacity is greater than that of standard models. Applicable Model/Drain Capacity AF10 AF20 AF30 AF40 AF40-06 AF50 AF60 Model Port size 1/8, 1/4 1/4, 3/8 1/4, 3/8, 1/2 3/4, 1 Drain capacity (cm Note) Please consult with SMC for dimensions.
Page 122 Air Filter AF30 to AF60 Made to Order Specifications: Please contact SMC for detailed dimensions, specifications, and lead times. r With Element Service Indicator Clogging status of elements can be checked visually. Applicable Model AF30 AF40 AF40-06 AF50 AF60 Model Port size 1/4, 3/8 1/4, 3/8, 1/2...
Page 123 AF„ AW„ A„G AF800 AF900...
Page 124 JIS Symbol Mist Separator Mist Separator AFM20 to AFM40 Micro Mist Separator AFD20 to AFD40 Micro Mist Separator • Series AFM Nominal filtration rating: 0.3 μm • Series AFD Nominal filtration rating: 0.01 μm AFM20, AFD20 AFM40, AFD40 How to Order AFM 30 03 BD •...
Page 125 AFM20 AFM40 Series Mist Separator AFD20 AFD40 Series Micro Mist Separator Standard Specifications AFM20 AFM30 AFM40 AFM40-06 Model AFD20 AFD30 AFD40 AFD40-06 Port size 1/8, 1/4 1/4, 3/8 1/4, 3/8, 1/2 Fluid Ambient and fluid temperature –5 to 60°C (with no freezing) Proof pressure 1.5 MPa Maximum operating pressure...
Page 126 AFM20 AFM40 Series AFD20 AFD40 Series : When saturated with oil Flow Characteristics : Initial state (Representative values) AFM20 AFM30 AFM40 0.04 0.04 0.04 0.03 0.03 0.03 0.02 0.02 0.02 0.01 0.01 0.01 1000 Flow rate ( /min (ANR)) Flow rate ( /min (ANR)) Flow rate ( /min (ANR))
Page 127 AFM20 AFM40 Series Mist Separator AFD20 AFD40 Series Micro Mist Separator Construction AFM20 AFD20 Float type auto drain (N.C.) Drain M5 x 0.8 AFM30 to AFM40-06 AFD30 to AFD40-06 Float type auto drain N.O. N.C. Drain ø10 One-touch ø10 One-touch fitting fitting AF„...
Page 128 AFM20 AFM40 Series AFD20 AFD40 Series Dimensions AFM20 Bracket AFD20 (Option) (Port size) Drain AFM30 to AFM40-06 AFD30 to AFD40-06 Bracket (Option) (Port size) Drain AFM20, AFD20 AFM30 to AFM40-06, AFD30 to AFD40-06 Applicable model Optional/Semi-standard With auto drain (N.C.) Metal bowl With drain guide With auto drain (N.O./N.C.)
Page 129 AFM20 to AFM40 Mist Separator AFD20 to AFD40 Micro Mist Separator Made to Order Specifications: Please contact SMC for detailed dimensions, specifications, and lead times. q Long Bowl Drain capacity is greater than that of standard models. Applicable Model/Drain Capacity AFM20, AFD20 AFM30, AFD30 AFM40, AFD40 AFM40-06, AFD40-06...
Page 130 AFM30 to AFM40 Mist Separator AFD30 to AFD40 Micro Mist Separator Made to Order Specifications: Please contact SMC for detailed dimensions, specifications, and lead times. w With Element Service Indicator Clogging status of elements can be checked visually. Applicable Model AFM30, AFD30 AFM40, AFD40 AFM40-06, AFD40-06...
Page 131 Modular Type Regulators Series Regulator Model Port size Options Series AR10 M5 x 0.8 AR20 1/8, 1/4 AR25 1/4, 3/8 AR30 1/4, 3/8 AR40 1/4, 3/8, 1/2 Bracket AR40-06 Square embedded type pressure gauge AR50 3/4, 1 (except the AR10) AR60 Pages 346 through to 355 Round type pressure gauge...
Page 132 Regulator JIS Symbol Regulator with AR10 to AR60 Regulator Backflow Function Regulator with Backflow Function AR20K to AR60K • With the backflow function it incorporates a mechanism to exhaust the air pressure in the outlet side reliably and quickly. Example 1) Example 2) When the pressure in the rear and When the air supply is cut off and...
Page 133 AR10 to AR60 Series Regulator AR20K to AR60K Series Regulator with Backflow Function AR20, AR20K AR40, AR40K Symbol Description Body size Note 5) 0.05 to 0.85 MPa setting Set pressure Note 6) 0.02 to 0.2 MPa setting Relieving type Exhaust mechanism Non-relieving type Flow direction: Left to right...
Page 134 AR10 to AR60 Series AR20K to AR60K Series Options/Part No. Model AR10 AR20(K) AR25(K) AR30(K) AR40(K) AR40(K)-06 AR50(K) AR60(K) Option Note 1) Note 2) Bracket assembly AR10P-270AS AR20P-270AS AR25P-270AS AR30P-270AS AR40P-270AS AR50P-270AS Note 3) Note 3) Set nut AR10P-260S AR20P-260S AR25P-260S AR30P-260S AR40P-260S...
Page 135 AR10 to AR60 Series Regulator AR20K to AR60K Series Regulator with Backflow Function Flow Characteristics (Representative values) Condition: Inlet pressure 0.7 MPa AR10 AR30 AR50 Rc 3/8 Rc 1 1000 1500 5000 10000 Flow rate ( /min (ANR)) Flow rate ( /min (ANR)) Flow rate ( /min (ANR))
Page 136 AR10 to AR60 Series AR20K to AR60K Series Pressure Characteristics (Representative values) Conditions: Inlet pressure 0.7 MPa, Outlet pressure 0.2 MPa, Flow rate 20 l/min (ANR) AR10 AR30 AR50 0.25 0.25 point 0.25 point point 0.15 0.15 0.15 0 0.2 0 0.2 0 0.2 Inlet pressure (MPa)
Page 137 AR10 to AR60 Series Regulator AR20K to AR60K Series Regulator with Backflow Function Construction AR10 AR20(K), AR25(K) AR30(K), AR40(K) AR50(K), AR60(K) AR20K to AR60K (Regulator with Backflow Function) Component Parts AF„ Description Material Model Color Zinc die-cast AR10, AR20(K) Body Platinum silver Aluminum die-cast AR25(K) to AR60(K)
Page 138 AR10 to AR60 Series AR20K to AR60K Series Working Principle (Regulator with Backflow Function) AR10 (Inlet pressure) (Outlet pressure) (Inlet pressure) (Outlet pressure) Figure 1 Figure 2 When the inlet pressure is higher than the regulating pressure, the check valve operates as a normal regulator (Figure 1). When the inlet pressure is shut off and exhausted, any inlet pressure applied to the valve q will be lost.
Page 139 AR10 to AR60 Series Regulator AR20K to AR60K Series Regulator with Backflow Function Dimensions AR10, AR20(K) to AR40(K)-06 Panel fitting dimension (Port size) Plate thickness AR10, AR20(K) to AR30(K): Max. 3.5 AR40(K): Max. 5 (Pressure gauge port size) Bracket (Option) AR50(K), AR60(K) (Port size) (Pressure gauge...
Page 140 Regulator AR20 to AR60 Made to Order Specifications: Please contact SMC for detailed dimensions, specifications, and lead times. AR30-03-X425 q Special Temperature Environment w High Pressure Special materials are used in the manufacturing of seals and resin parts to allow Strong materials are used in the manufacturing of air filters inten- them to withstand various temperature conditions in cold or tropical (hot) climates.
Page 141 AR10 to AR60 Regulator AR20K to AR60K Regulator with Backflow Function Made to Order Specifications: Please contact SMC for detailed dimensions, specifications, and lead times. e 0.4 MPa Setting The maximum set pressure is 0.4 MPa. When a pressure gauge is included, the display will show a range from 0 to 0.4 MPa. Specifications Proof pressure 1.5 MPa...
Page 143 Modular Type Lubricators Series Lubricator Model Port size Option Series AL10 M5 x 0.8 AL20 1/8, 1/4 AL30 1/4, 3/8 AL40 1/4, 3/8, 1/2 Bracket AL40-06 AL50 3/4, 1 AL60 Pages 358 through to 363 AF„ AW„ A„G AF800 AF900...
Page 144 Lubricator AL10 AL60 JIS Symbol Lubricator AL20 AL40 How to Order AL 30 03 B • Option/Semi-standard: Select one each for a to d. • Option/Semi-standard symbol: When more than one specification is required, indicate in alphanumeric order. Example) AL30-03B-2R Symbol Description Body size...
Page 145 AL10 to AL60 Series Lubricator Standard Specifications Model AL10 AL20 AL30 AL40 AL40-06 AL50 AL60 Port size M5 x 0.8 1/8, 1/4 1/4, 3/8 1/4, 3/8, 1/2 3/4, 1 Fluid Proof pressure 1.5 MPa 1.0 MPa Maximum operating pressure –5 to 60°C (with no freezing) Ambient and fluid temperature 1/4: 30 Note)
Page 146 AL10 to AL60 Series Working Principle: AL10 Type Flow Characteristics (Representative values) AL10 AL40-06 Rc 3/4 0.08 0.08 Needle Section AA’ 0.06 0.06 0.04 0.04 0.02 0.02 Conditions: P = 0.5 MPa Needle: One side fully opened 2000 4000 6000 8000 Flow rate ( /min (ANR))
Page 147 AL10 to AL60 Series Lubricator Construction AL10 AL20 AL30, AL40 AL50, AL60 Component Parts Description Material Model Color AF„ Zinc die-cast AL10, AL20 Body Platinum silver Aluminum die-cast AL30 to AL60 Housing Aluminum die-cast AL50, AL60 Platinum silver Replacement Parts Part no.
Page 148 AL10 to AL60 Series Dimensions AL10 AL20 Bracket (Option) (Port size) (Port size) AL30, AL40 AL50, AL60 Bracket (Option) Bracket (Option) (Port size) (Port size) AL10/20 AL30 to AL60 Applicable model Optional/Semi-standard Metal bowl with Metal bowl with Metal bowl with drain Metal bowl with With drain cock Metal bowl...
Page 149 AL10 to AL60 Series Lubricator Dimensions Semi-standard specifications: 1000 cm tank (Port size) Bracket (Option) With float switch Contact capacity: 15 VA (AC) 15 W (DC) Contact point: 1a, 1b Float switch Part number: IS400-1 to 2 AF„ AW„ Bracket mount With float switch A„G Model...
Page 151 Modular Type Filter Regulators Series Filter Regulator Model Port size Options Series AW10 M5 x 0.8 AW20 1/8, 1/4 AW30 1/4, 3/8 AW40 1/4, 3/8, 1/2 AW40-06 AW60 3/4, 1 Pages 366 through to 377 Filter Regulator with Backflow Function AW20K 1/8, 1/4 AW„K...
Page 152: Filter Regulator With Backflow Function
Filter Regulator JIS Symbol Filter Regulator with AW10 to AW60 Filter Regulator Backflow Function Filter Regulator with Backflow Function AW20K to AW60K • Integrated filter and regulator units save space and require less piping. • With the backflow function it incorporates a mechanism to exhaust the air pressure in the outlet side reliably and quickly.
Page 153: Aw30
AW10 to AW60 Series Filter Regulator AW20K to AW60K Series Filter Regulator with Backflow Function AW20, AW20K AW40, AW40K Symbol Description Body size With drain cock Drain guide 1/8 Note 10) Drain port Note 11) Drain guide 1/4 Note 12) Drain cock with barb fitting: For ø6 x ø4 nylon tube Relieving type Exhaust...
Page 154: Aw30K
AW10 to AW60 Series AW20K to AW60K Series Options/Part No. Model Optional specifications AW10(K) AW20(K) AW30(K) AW40(K) AW40(K)-06 AW60(K) Note 1) Note 6) AR10P-270AS AW20P-270AS AR40P-270AS AW60P-270AS Bracket assembly AR30P-270AS Note 7) AR10P-260S AR20P-260S AR40P-260S — Set nut AR30P-260S Standard G27-10-R1 G36-10-„01 G46-10-„02...
Page 155 AW10 to AW60 Series AW20K to AW60K Series Specific Product Precautions Be sure to read before handling. Refer to front matters 42 and 43 for Safety Instructions and pages 287 to 291 for F.R.L. Precautions. Selection Warning 1. Residual pressure disposal (outlet pressure removal) is not possible for the AW20 to AW60 even though the inlet pressure is exhausted.
Page 156: Aw40K
AW10 to AW60 Series AW20K to AW60K Series Flow Characteristics (Representative values) Condition: Inlet pressure 0.7 MPa AW10 AW30(K) AW40(K)-06 Rc 3/8 Rc 3/4 1000 2000 3000 4000 1000 1500 Flow rate ( /min (ANR)) Flow rate ( /min (ANR)) Flow rate ( /min (ANR)) AW20(K)
Page 157: Aw60K
AW10 to AW60 Series Filter Regulator AW20K to AW60K Series Filter Regulator with Backflow Function Construction AW60(K) AW30(K), AW40(K) AW10 Drain AW20(K) Drain AW20K to AW60K (Filter Regulator with Backflow Function) Drain Drain Component Parts Description Material Model Color Zinc die-cast AW10, AW20 Body Platinum silver...
Page 158 AW10 to AW60 Series AW20K to AW60K Series Working Principle (Filter Regulator with Backflow Function) AW10 (Outlet pressure) (Outlet pressure) (Inlet pressure) (Inlet pressure) When the inlet pressure is higher than the regulating pressure, the check valve operates as a normal regulator (Figure 1). When the inlet pressure is shut off and exhausted, any inlet pressure applied to the valve q will be lost.
Page 159 AW10 to AW60 Series Filter Regulator AW20K to AW60K Series Filter Regulator with Backflow Function Dimensions AW10, AW20(K) AW60(K) Panel fitting dimension Bracket (Option) Plate thickness AW10, AW20(K): Max. 3.5 Bracket (Option) (Pressure gauge port size) Drain (Port size) AW30(K) to AW40(K)-06 Bracket Panel fitting dimension (Option)
Page 160 Filter Regulator AW20 to AW60 Made to Order Specifications: Please contact SMC for detailed dimensions, specifications, and lead times. q Special Temperature Environment Special materials are used in the manufacturing of seals and resin parts to allow them to withstand various temperature conditions in cold or tropical (hot) climates.
Page 161 AW20 to AW60 Series Filter Regulator w High Pressure Strong materials are used in the manufacturing of air filters intended for high pressure operation. Also, construction modification allows a wider regulating pressure range. Specifications -X425 Made-to-order part no. Proof pressure (MPa) Maximum operating pressure (MPa) Set pressure range (MPa) 0.1 to 1.6...
Page 162 AW10 to AW60 Filter Regulator AW20K to AW60K Filter Regulator with Backflow Function Made to Order Specifications: Please contact SMC for detailed dimensions, specifications, and lead times. e 0.4 MPa Setting r Long Bowl The maximum set pressure is 0.4 MPa. When a pressure gauge Drain capacity is greater than that of standard models.
Page 163 AW10 to AW60 Series Filter Regulator AW20K to AW60K Series Filter Regulator with Backflow Function 0.4 MPa Setting Long Bowl Symbol Description Body size Body size Note 7) 0.05 to 0.85 MPa setting Set pressure Note 8) 0.02 to 0.2 MPa setting Polycarbonate bowl Metal bowl Nylon bowl...
Page 164 Mist Separator Regulator JIS Symbol Mist Separator Micro Mist Separator AWM20 to AWM40 Regulator Regulator Micro Mist Separator Regulator AWD20 to AWD40 • The AWM series is made up of a regulator and a mist separator to provide optimum re- sults in applications such as clean air blow operations.
Page 165 AWM20 to AWM40 Series Mist Separator Regulator AWD20 to AWD40 Series Micro Mist Separator Regulator AWM20, AWD20 AWM40, AWD40 Symbol Description Body size Relieving type Exhaust mechanism Non-relieving type Flow direction: Left to right Flow direction Flow direction: Right to left Name plate, caution plate for bowl, and pressure gauge in imperial units: MPa Name plate, caution plate for bowl, and pressure gauge in imperial units: psi, °F Note 14)
Page 166 AWM20 to AWM40 Series AWD20 to AWD40 Series Options/Part No. Model Optional specifications AWM20 AWM30 AWM40 AWD20 AWD30 AWD40 Note 1) Bracket assembly AW20P-270AS AR30P-270AS AR40P-270AS Set nut AR20P-260S AR30P-260S AR40P-260S G36-10-„01 G46-10-„02 Standard Note 2) Round type 0.02 to 0.2 MPa setting G36-2-„01 G46-2-„02 Note 2)
Page 167 AWM20 to AWM40 Series AWD20 to AWD40 Series Specific Product Precautions Be sure to read before handling. Refer to front matters 42 and 43 for Safety Instructions and pages 287 to 291 for F.R.L. Precautions. Selection Mounting and Adjustment Warning Warning 1.
Page 168 AWM20 to AWM40 Series AWD20 to AWD40 Series Flow Characteristics (Representative values) Condition: Inlet pressure 0.7 MPa AWM20 AWM30 AWM40 Rc 1/4 Rc 3/8 Rc 1/2 1000 Flow rate ( /min (ANR)) Flow rate ( /min (ANR)) Flow rate ( /min (ANR)) AWD20 AWD30...
Page 169 AWM20 to AWM40 Series Mist Separator Regulator AWD20 to AWD40 Series Micro Mist Separator Regulator Construction AWM20 AWM30, AWM40 AWD20 AWD30, AWD40 Drain Drain Component Parts Description Material Model Color AWM20 Zinc die-cast AWD20 Platinum silver Body AWM30, AWM40 Aluminum die-cast AWD30, AWD40 AWM20 to AWM40 Bonnet...
Page 170 AWM20 to AWM40 Series AWD20 to AWD40 Series Dimensions Panel fitting dimension AWM20 AWD20 Bracket (Option) Plate thickness AWM20, AWD20: Max. 3.5 (Pressure gauge (Port size) port size) Drain AWM30, AWM40 Panel fitting dimension AWD30, AWD40 Bracket (Option) Plate thickness AWM30, AWD30: Max.
Page 171 AF„ AW„ A„G AF800 AF900...
Page 172 AWM20 to AWM40 Mist Separator Regulator AWD20 to AWD40 Micro Mist Separator Regulator Made to Order Specifications: Please contact SMC for detailed dimensions, specifications, and lead times. q 0.4 MPa Setting w Long Bowl The maximum set pressure is 0.4 MPa. When a pressure gauge Drain capacity is greater than that of standard models.
Page 173 AWM20 to AWM40 Series Mist Separator Regulator AWD20 to AWD40 Series Micro Mist Separator Regulator 0.4 MPa Setting Long Bowl Symbol Description Body size Body size 0.05 to 0.85 MPa setting Note 6) Set pressure Note 7) 0.02 to 0.2 MPa setting Polycarbonate bowl Metal bowl Nylon bowl...
Page 174 Option Digital Pressure Switch Refer to Best Pneumatics No. 6 for the Specific Product Precautions. ISE35 N M L A Applicable Series Symbol Description AC20, AC25, AC30, AC40, AC50, AC55, AC60 F.R.L. unit AC20A, AC30A, AC40A, AC50A, AC60A AC20B, AC25B, AC30B, AC40B, AC50B, AC55B, AC60B AC20C, AC25C, AC30C, AC40C AC20D, AC30D, AC40D...
Page 175 Option Knob Cover Prevents careless knob operation. Part no. Applicable model AC20„, AR20(K), AW20(K), Lock cover AR20P-580AS AWM20, AWD20 AR25P-580AS AC25„, AR25(K) AC30„, AR30(K), AW3(K), AR30P-580AS AWM30, AWD30 Keyhole dia.: ø8 AC40„(-06), AR40(K)(-06), AR40P-580AS AW40(K)(-06), AWM40, AWD40 Lock (supplied by customers) AF„...

SMC Networks AM Series Manual

Compressed Air Cleaning Filter Series Made to Order/Special Specifications

Series

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks AM Series

Summary of Contents for SMC Networks AM Series

This manual is also suitable for:

Table of Contents
