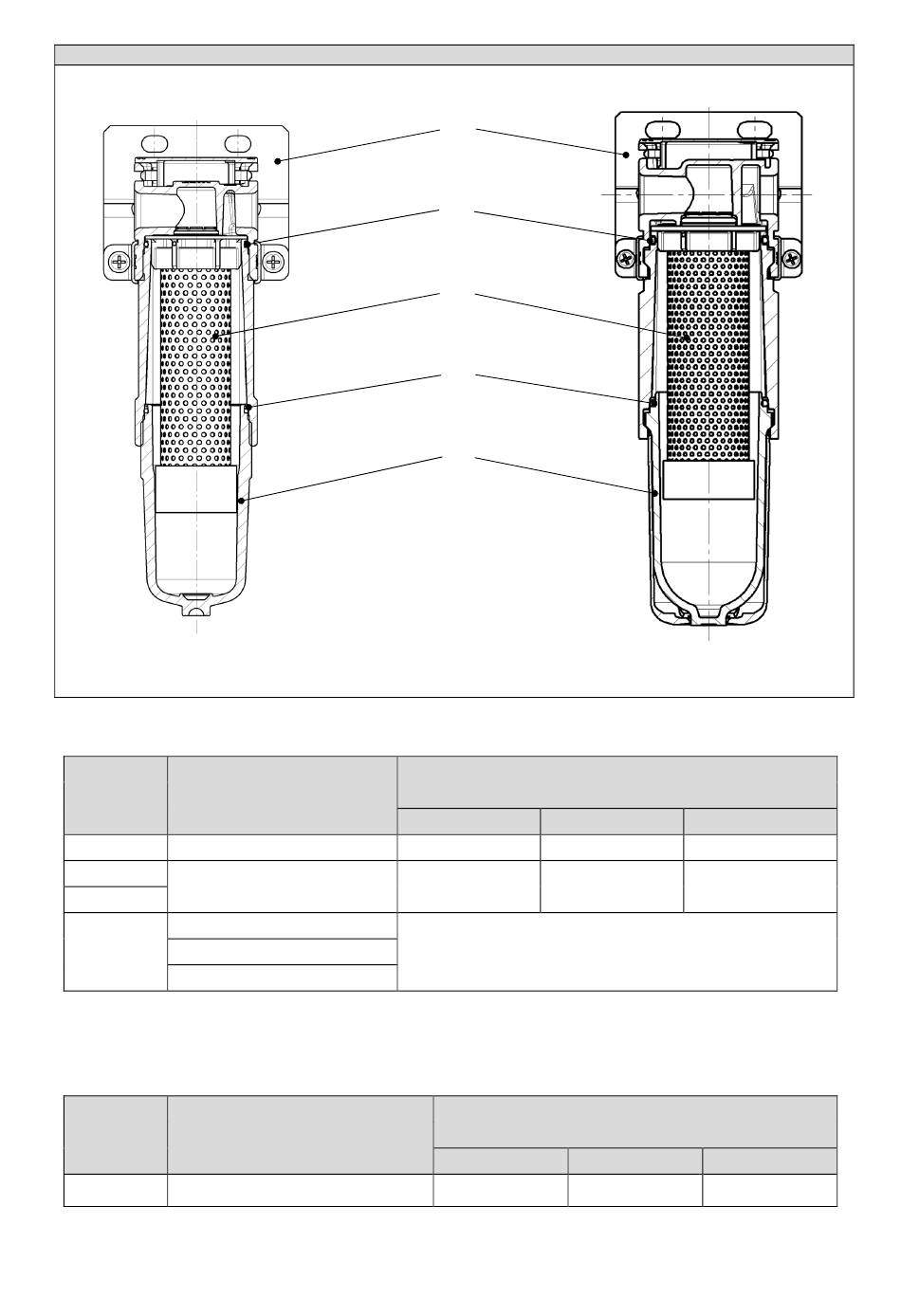

5. Construction / Options / Replacement parts

AMK20
Replacement parts
Component
No.
①
Element
②
Bowl seal
③
Bowl assembly
④
Auto drain (N.C.)
Auto drain (N.O.)
Note 1) The numbers in the table and construction are consistent with the number in [10. Replacement work
procedure] (P23-29) and 11. Disassembly Drawing](P30).
Options
Component
number
⑤
Bracket assembly
Note 2) Refer to the 7. Assembly of Optional parts (P19) for mounting the bracket assembly.
Construction / Options / Replacement parts
Parts description
Parts description
Note 2)
⑤
②
①
③
④
Component number
AMK20
AMK24P-060AS AMK34P-060AS
C22FP-260S C32FP-260S
Refer to [6.Bowl assembly specifications]
(P11 to P18).
Component number
AMK20
AF24P-070AS
-10-
Note 1)
AMK30/AMK40
AMK30 AMK40
AMK44P-060AS
C42FP-260S
AMK30 AMK40
AF34P-070AS AF44P-070AS
