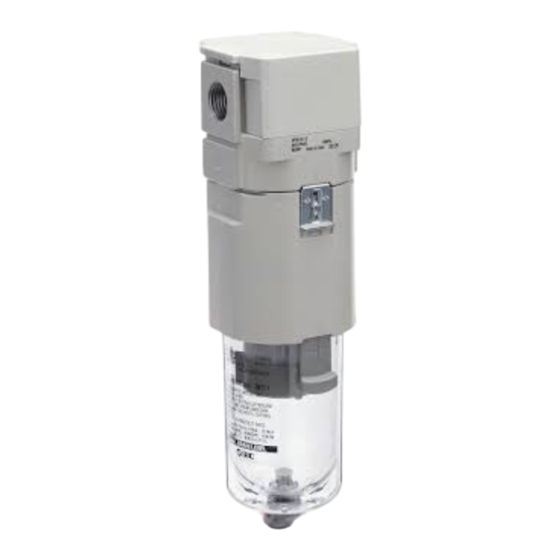

- Page 1 Doc. No. AMX-OMZ0095 PRODUCT NAME Activated Carbon Filter MODEL / Series / Product Number AMK50-(F,N)06 ~ (F,N)10(B)(-R,Z)-D AMK60-(F,N)10(B)(-R,Z)-D...
-
Page 2: Table Of Contents
Contents Page 1. Safety Instructions 2 to 6 2. Application 3. Standard specifications 4. How to Order 5. Construction / Options / Replacement parts 6. Bowl assembly specifications 6-1. Bowl assembly for AMK50 6-2. Bowl assembly for AMK60 7. Assembly of Optional parts 8. - Page 3 Activated Carbon Filter Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
- Page 4 Activated Carbon Filter Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
- Page 5 Precautions for Design Warning 1) Carefully consider the application, required specifications, and operating conditions (pressure, flow rate, temperature, environment and power supply) in accordance with the latest catalog (SMC website), making sure not to exceed the specification range. 2) Consult SMC if no leakage is allowed due to the environment, or if the operating fluid is not air. 3) This product cannot be used in the following environments.
- Page 6 Installation Warning 1) Do not drop or apply impact during transportation or installation. It will cause damage to the product and result in operation failure. 2) Do not install in areas of high humidity or high temperature. Operation outside of the product specification range may cause damage to the product or operation failure, or shorten the product life.
-
Page 7: Safety Instructions 2 To
Air Source Warning 1) Use clean air. Do not use compressed air containing chemicals, organic solvent, synthetic oil or corrosive gas as it may be cause of breakage of components or operation failure. 2) Air containing too much moisture may deteriorate the performance. Install the refrigerated air dryer or aftercooler before the activated carbon filter. -
Page 8: Application
2. Application This product aims at eliminating oil vapor in the air line. 3. Standard specifications Model No. AMK50 AMK60 Port size 3/4，1 Fluid Ambient and o fluid temperature -5 to 60 C (No freezing) Proof pressure 1.5MPa Max. operating pressure 1.0MPa Min. -
Page 9: How To Order
4. How to Order ❶ ❷ ❸ ❹ ❺ ❶ Symbol Description Body size ● ● ❷ ● ● Thread type ● ● ● ― ❸ Port size ● ● ● ● Without mounting option ❹ Mounting ● ● With bracket ●... -
Page 10: Construction / Options / Replacement Parts
5. Construction / Options / Replacement parts Construction / Options / Replacement parts AMK50 / AMK60 Replacement parts Part No. Parts description AMK50 AMK60 ① Element AMK54P-060AS AMK64P-060AS ② Bowl seal AM54P-160S ③ Bowl assembly AMK54P-120AS AMK64P-120AS Note1) The numbers in the table and construction are consistent with the number in [9. How to Replace the Components] (P13 and 14) and [10. -
Page 11: Bowl Assembly Specifications
6. Bowl assembly specifications 6-1. Bowl assembly for AMK50 － Option symbol Semi-standard － symbol Semi-standard: "-" (Standard) Port thread ③Part No. type AMK54P-120AS Appearance Part No. Note1) Part No.③ includes Bowl seal ②. Refer to [10. Disassembly Drawing ](P15). 6-2. -
Page 12: Assembly Of Optional Parts
7. Assembly of Optional parts Bracket Mounting of bracket A Insert bracket A from the front side of the product so that the finger of the bracket A engages with the groove and the bottom of the body. (see drawing on the left) Groove Product Bottom... -
Page 13: Troubleshooting
8. Troubleshooting Refer to [9. How to Replace the Components](P13 and 14) and [10. Disassembly Drawing](P15). Problem Page for Possible causes Countermeasure reference Category Failure As pressure drop 1. The filter installed upstream is Replace the element of the filter on the is large, fluid clogged. -
Page 14: How To Replace The Components 13 To
9. How to Replace the Components ！ Warning Before replacement, make sure that no pressure remains in the equipment. After replacement, confirm that the product satisfies specific functions and no external leakage occurs before operating it. 9-1. Bowl assembly Replacement Work Model Work step... -
Page 15: Element Replacement
9-2. Element Replacement Work Model Work step classifi Tools Criteria cation 1) Remove the bowl assembly by referring to the section [9-1. Bowl assembly Replacement] (P13). AMK50 AMK60 － － 2) Install the replacing element and bowl seal in the bowl assembly. -
Page 16: Disassembly Drawing
10. Disassembly Drawing AMK50 / AMK60 Mounting screws (4 pieces) Body ② Bowl seal ① Element ③ Bowl assembly -15-... -
Page 17: Dimensions
11. Dimensions (Port size) Option specifications Standard specifications Model Bracket mount 3/4 ・ 1 AMK50 40.5 52.5 AMK60 299.1 40.5 52.5 -16-... - Page 18 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2022 SMC Corporation All Rights Reserved...
