3.1) Element disassembly [AMK30, AMK40]

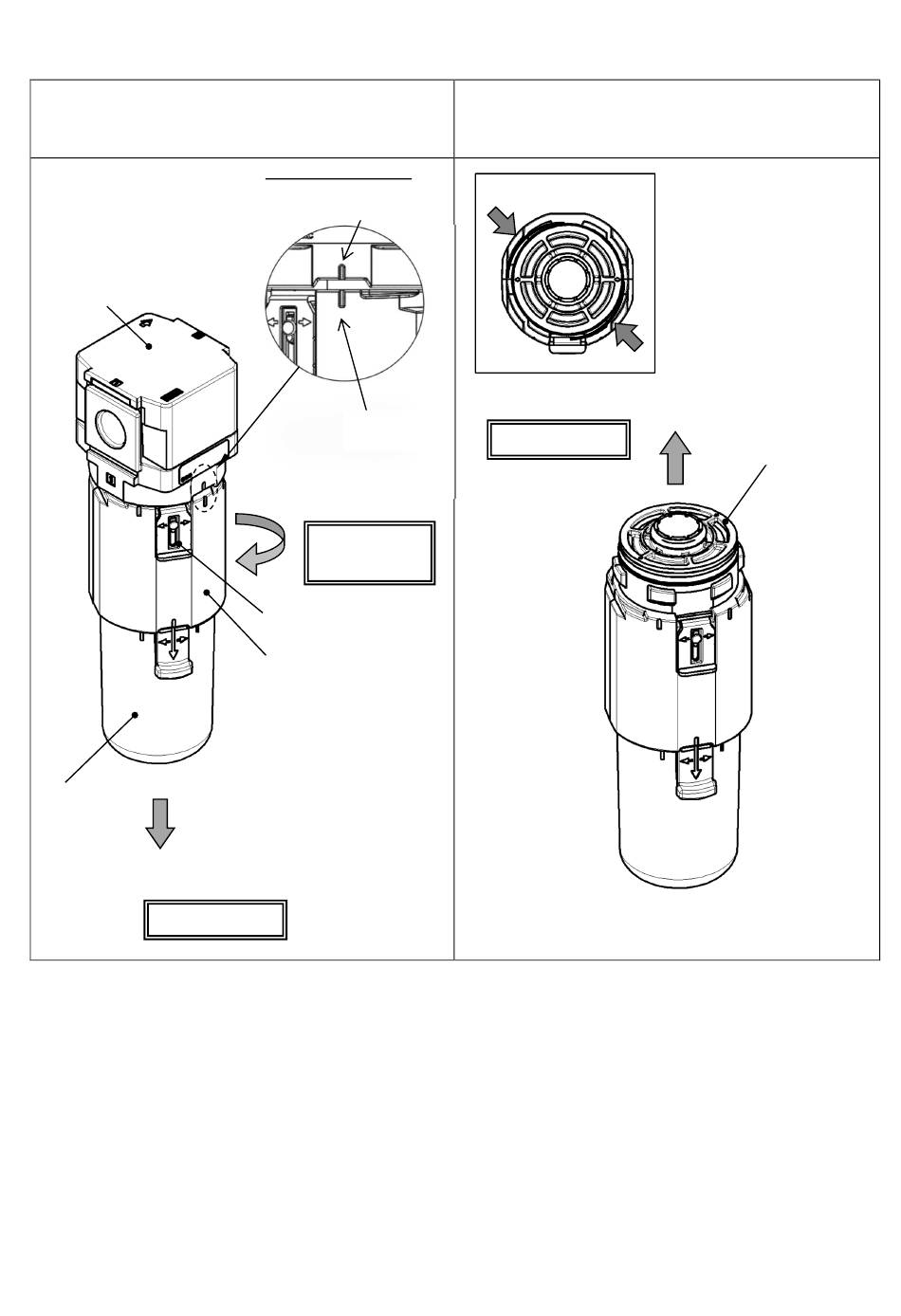

Step 1
To remove the joint from the body, rotate for approx.
30 degrees with the lock button held down. Align the
mating mark of the body and joint and pull down the
bowl assembly to remove it.
Body
④ Bowl
Assembly
[Step 2]
Pull downward
Align the mating mark
Mating mark of the body
Mating mark
of the joint
[Step 1]
Rotate for 30
degrees
Lock button
Joint
-19-
Step 2
Hold the element as shown below and pull upward to
remove the element assembly.
Holds the elements
Pull upward
① Element assembly
