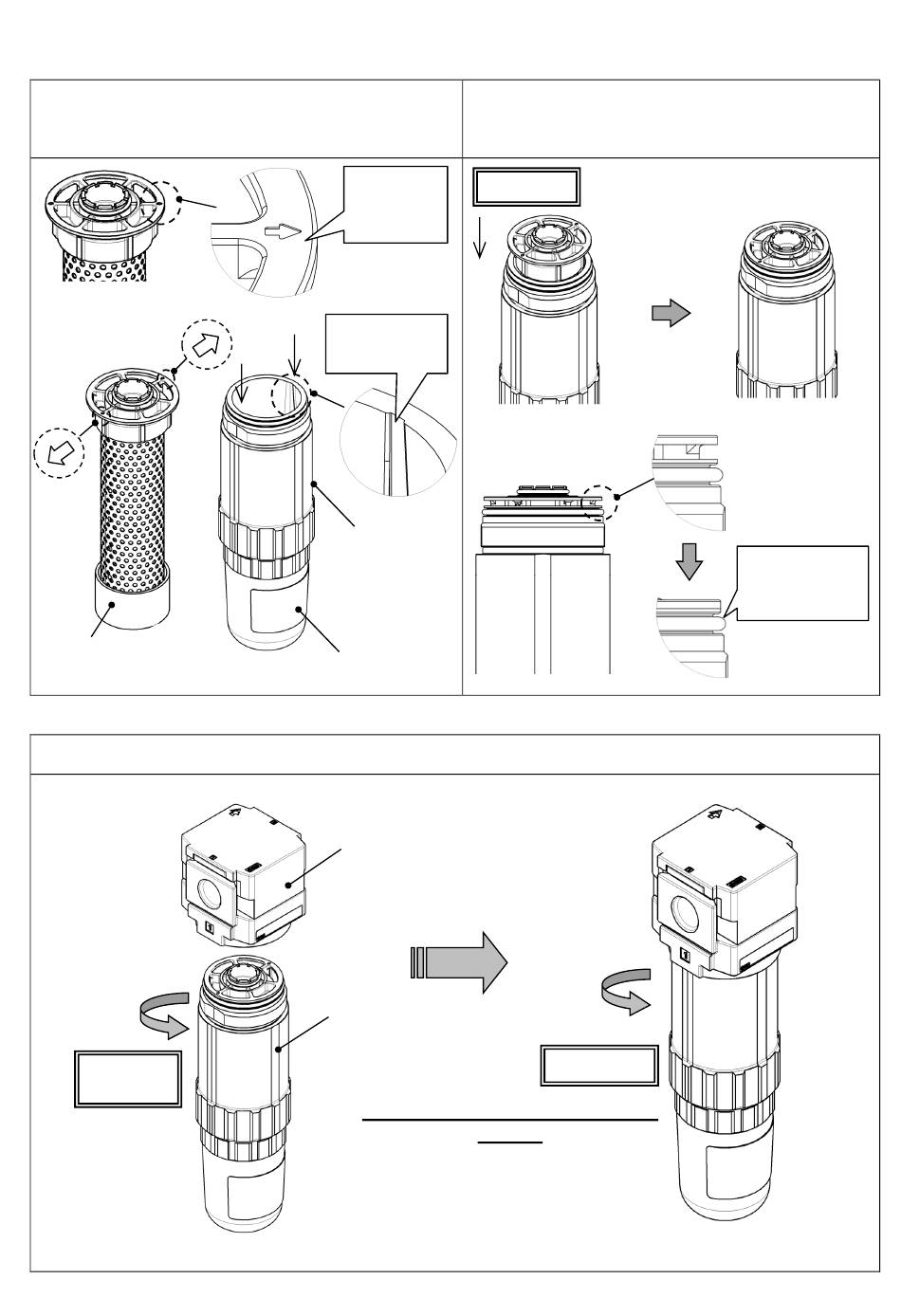

1.2) Element assembly [AMK20]
Step 1
Aligh 2 arrow marks and 2 recessed areas of the joint.
① Element assembly
① Element assembly
Step 3
Screw the bowl assembly into the product.
Tighten it referring to the specified torque below.
Screw
fitting
Step 2
Press the element downward until the element and
joint come into contact with each other completely. If
they are forced to be inserted without aligning, the
element will break.
Arrow mark
Assemble
of the
element
(2 places)
Recessed area
of the joint
(2 places)
Joint
④ Bowl assembly
Body
Joint
Recommended tightening torque:
3.5N・m
-17-
Tightening
Make sure that the
joint and element
contact completely
