7. Assembly of Optional parts

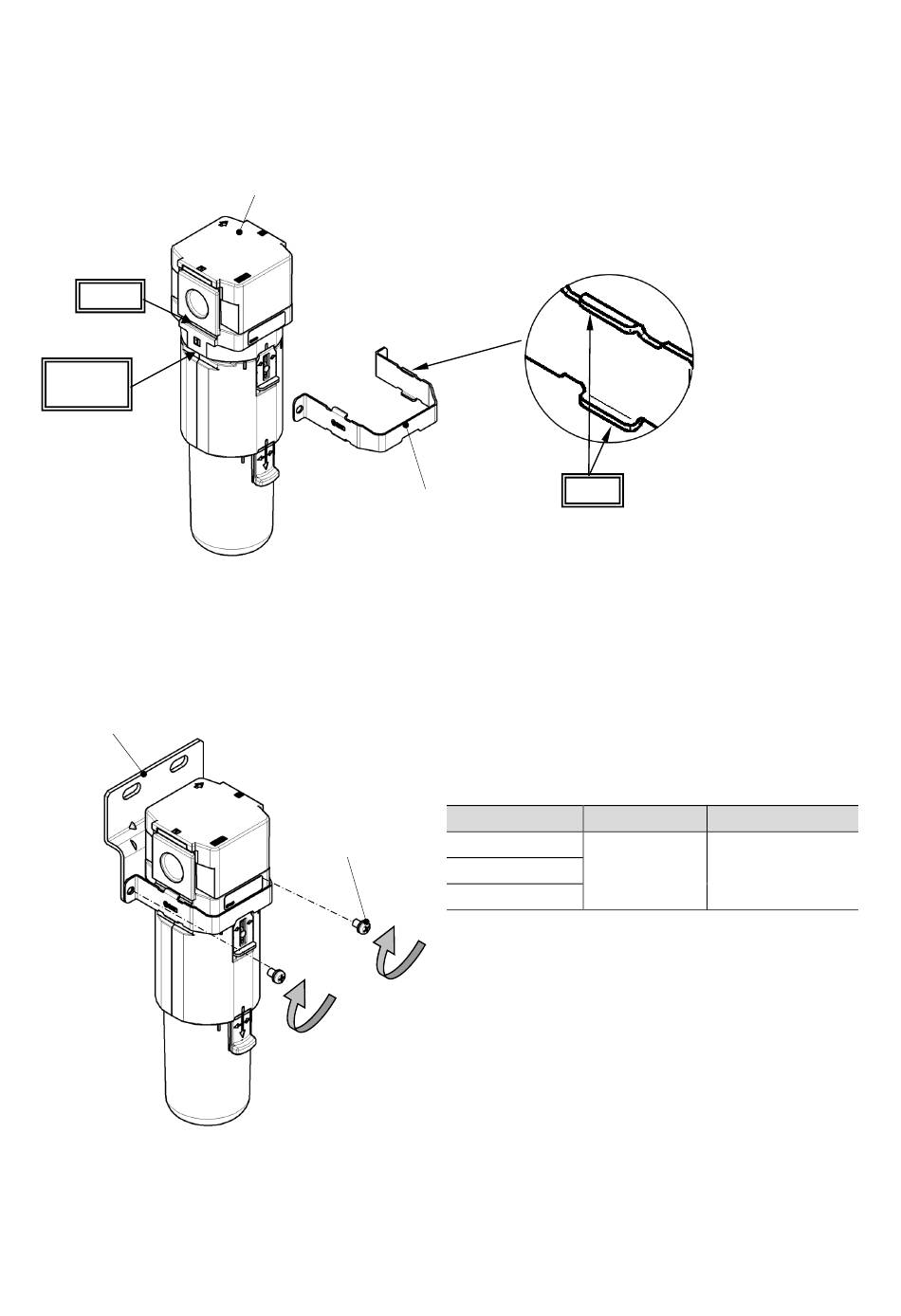

1) Bracket
Groove
Bottom of
the body
Bracket B
Product
Bracket A
Set screw
(2 pcs.)
1) Mounting of bracket A
Insert bracket A from the front side of the product
so that the finger of the bracket A engages with
the groove and the bottom of the body (see
drawing on the left).
Finger
2) Mounting of bracket B
Fix the bracket B with the set screw (2pcs.)
included in the package. Refer to the table
below for the tightening torque.
Line filter
AMK20
AMK30
screwdriver(+)
AMK40
-14-
Tools Tightening torque
Phillips
0. 75+/-0. 2 N・m
