Doc. No. AMX-OMZ0092-B

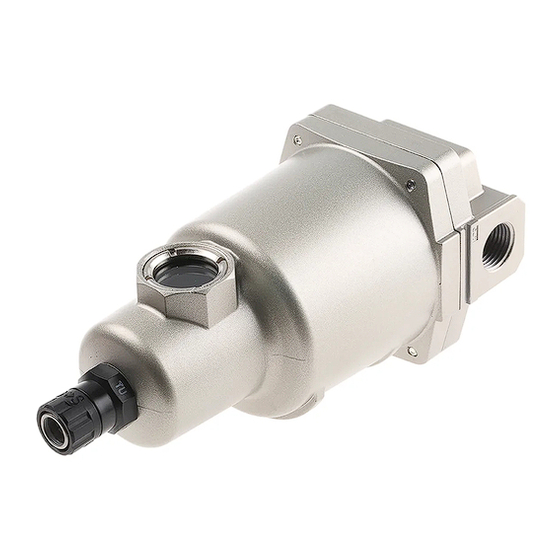

PRODUCT NAME
Line filter
Mist Separator
Micro Mist Separator
MODEL / Series / Product Number
AFF50-(F,N)06～(F,N)10(B,C,D)(-J,L,M,MM,R,W,Z)-D
AFF60-(F,N)10(B,C,D)(-J,L,M,MM,R,W,Z)-D
AM50-(F,N)06～(F,N)10(B,C,D)(-J,L, M,MM,R,W,Z)-D
AM60-(F,N)10(B,C,D)(-J,L, M,MM,R,W,Z)-D
AMD50-(F,N)06～(F,N)10(B,C,D)(-J,L, M,MM,R,W,Z)-D
AMD60-(F,N)10(B,C,D)(-J,L, M,MM,R,W,Z)-D
Advertisement
Table of Contents
Related Manuals for SMC Networks AFF50 Series
Summary of Contents for SMC Networks AFF50 Series
- Page 1 Doc. No. AMX-OMZ0092-B PRODUCT NAME Line filter Mist Separator Micro Mist Separator MODEL / Series / Product Number AFF50-(F,N)06～(F,N)10(B,C,D)(-J,L,M,MM,R,W,Z)-D AFF60-(F,N)10(B,C,D)(-J,L,M,MM,R,W,Z)-D AM50-(F,N)06～(F,N)10(B,C,D)(-J,L, M,MM,R,W,Z)-D AM60-(F,N)10(B,C,D)(-J,L, M,MM,R,W,Z)-D AMD50-(F,N)06～(F,N)10(B,C,D)(-J,L, M,MM,R,W,Z)-D AMD60-(F,N)10(B,C,D)(-J,L, M,MM,R,W,Z)-D...
-
Page 2: Table Of Contents
Contents Page 1. Safety Instructions 2 to 6 2. Application 3. Standard specifications 7 to 9 4. How to Order 5. Construction / Options / Replacement parts 6. Bowl assembly specifications 12 to 13 6-1. Bowl assembly for AFF, AM, AMD50 6-2. -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution We develop, design, and manufacture our products to be used for automatic control equipment, and provide them for peaceful use in manufacturing industries. Use in non-manufacturing industries is not covered. Products we manufacture and sell cannot be used for the purpose of transactions or certification specified in the Measurement Act.
- Page 5 Precautions for Design Warning 1) Carefully consider the application, required specifications, and operating conditions (pressure, flow rate, temperature, environment and power supply) in accordance with the latest catalog (SMC website), making sure not to exceed the specification range. 2) Do not use the product if no leakage is allowed due to the environment, or if the fluid is not air. 3) This product cannot be used in the following environments.
- Page 6 2) Do not install in areas of high humidity or high temperature. Operation outside of the product specification range may cause damage to the product or operation failure, or shorten the product life. 3) Connect the product ensuring the direction of arrow or "1"(IN) and "2"(OUT) ports for air direction or an arrow.
- Page 7 Caution 1) Install the air filter AF series or line filter AFF series as a pre-filter to the inlet of the AM series in order to avoid the clogging of early stage. 2) Install the air filter AFM series or line filter AM series as a pre-filter to the inlet of the AMD series in order to avoid the clogging of early stage.
-
Page 8: Application
2. Application Series Application This product aims at eliminating excess saturated water and solid foreign matter(1μm) in the air line. This product aims at eliminating oil mist and solid foreign matter(0.1μm) in the air line. This product aims at eliminating oil mist and solid foreign matter(0.01μm) in the air line. 3. - Page 9 3-2. Mist Separator (AM Series) Model No. AM50 AM60 Port size 3/4 ， 1 Fluid Compressed air Ambient and operating fluid temperature -5 to 60 C (No freezing) Proof pressure 1.5MPa Max. operating pressure 1.0MPa N.C. 0.15MPa Min. operating pressure of auto drain N.O.
- Page 10 3-3. Micro Mist Separator (AMD Series) Model No. AMD50 AMD60 Port size 3/4 ， 1 Fluid Compressed air Ambient and operating fluid temperature -5 to 60 C (No freezing) Proof pressure 1.5MPa Max. operating pressure 1.0MPa N.C. 0.15MPa Min. operating pressure of auto drain N.O.
-
Page 11: How To Order
4. How to Order ❶ ❷ ❸ ❹ ❺ ❻ ➋ Symbol Description Body size ● ● Line Filter ● ● ❶ Filter type Mist Separator ● ● Micro Mist Separator ● ● ● ● ❸ Thread type ● ● ●... -
Page 12: Construction / Options / Replacement Parts
5. Construction / Options / Replacement parts Construction / Options / Replacement parts AFF,AM,AMD50 / AFF,AM,AMD60 Replacement parts Part No. Parts description AFF54P-060AS AFF64P-060AS ① Element AM54P-060AS AM64P-060AS AMD54P-060AS AMD64P-060AS ② Bowl seal AM54P-160S Bowl assembly Refer to [6. Bowl assembly specifications] ③... -
Page 13: Bowl Assembly Specifications
6. Bowl assembly specifications 6-1. Bowl assembly for AFF,AM,AMD50 － － Option symbol Semi-standard － symbol Semi-standard: "-" Semi-standard: "J" (Standard) Port thread Port thread ③Part No. ③Part No. type type AM54P-120AS-J AM54P-F120AS-J AM54P-120AS AM54P-N120AS-J Appearance Part No. Note1) － Option symbol Semi-standard －... -
Page 14: Bowl Assembly For Aff,Am,Amd60
6-2. Bowl assembly for AFF,AM,AMD60 － － Option symbol Semi-standard － symbol Semi-standard: "-" Semi-standard: "J" (Standard) Port thread Port thread ③Part No. ③Part No. type type AM64P-120AS-J AM64P-F120AS-J AM64P-120AS AM64P-N120AS-J Appearance Part No. Note1) － Option symbol Semi-standard － symbol Semi-standard: "W"... -
Page 15: Assembly Of Optional Parts
7. Assembly of Optional parts Bracket Mounting of bracket A Insert bracket A from the front side of the product so that the finger of the bracket A engages with the groove and the bottom of the body. (see drawing on the left) Groove Product Bottom... -
Page 16: Auto Switch Specifications
8. Auto Switch Specifications D-A93VL Auto switch model Applicable load Relay, PLC Load voltage 24VDC 100VAC 5 to 20mA Load current range and Max load current 5 to 40mA Internal circuit Contact protection circuit None Internal voltage drop 2.7V or less Indicator light Red LED illuminates when turned ON. -
Page 17: Operation And Adjustment
9. Operation and Adjustment 9-1. Discharge from the product with drain cock ・ Pressurize the inside of the line filter when discharging drain. Drain will not be discharged properly if not pressurized. AFF,AM,AMD50 / AFF,AM,AMD60: Drain cock / With barb fitting (push type) ... -
Page 18: Manual Drain Discharge From The Auto Drain
9-2. Manual drain discharge from the auto drain ・ Pressurize the inside of the line filter when discharging drain. Drain will not be discharged properly if not pressurized. ・ To discharge the auto drain manually, follow the procedure below. After discharging the drain, rotate the cock to the opposite direction by hand to close the drain valve. -
Page 19: Troubleshooting
10. Troubleshooting Refer to [11. How to Replace the Components](P19 and 20) and [12. Disassembly Drawing](P21). Problem Page for Possible causes Countermeasure reference Category Failure As pressure drop 1. Clog of the element. Replace the element. is large, fluid does not flow. P19 and Air leaks 1. -
Page 20: How To Replace The Components
11. How to Replace the Components ！ Warning Before replacement, make sure that no pressure remains in the equipment. After replacement, confirm that the product satisfies specific functions and no external leakage occurs before operating it. 11-1. Bowl assembly Replacement Work Model Work step... -
Page 21: Element Replacement
11-2. Element Replacement Work Model Work step classifi Tools Criteria cation 1) Remove the bowl assembly by referring to the section [11- 1. Bowl assembly Replacement] (P19). AFF,AM, AMD50 － － AFF,AM, AMD60 2) Install the replacing element and bowl seal in the bowl assembly. -
Page 22: Disassembly Drawing
12. Disassembly Drawing AFF,AM,AMD50 / AFF,AM,AMD60 Mounting screws (4 pieces) Body ② Bowl seal ① Element ③ Bowl assembly -21-... -
Page 23: Dimensions
13. Dimensions (Port size) Semi-standard: With element service indicator Indicator Semi-standard: With clogging switch Switch Lead wire length: 3m Option specifications With Standard specifications Model Bracket mount auto drain AFF,AM,AMD50 237.7 40.5 52.5 259.2 3/4・1 AFF,AM,AMD60 314.8 40.5 52.5 336.3 Semi-standard specifications SUS bowl Model... - Page 24 Revision history 1st edition: February 2022 Revision: September 2023 Revision: March 2024 Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. ©...
