TCP/IP Panel

The TCP/IP panel connects PCS to a specific device through Ethernet.

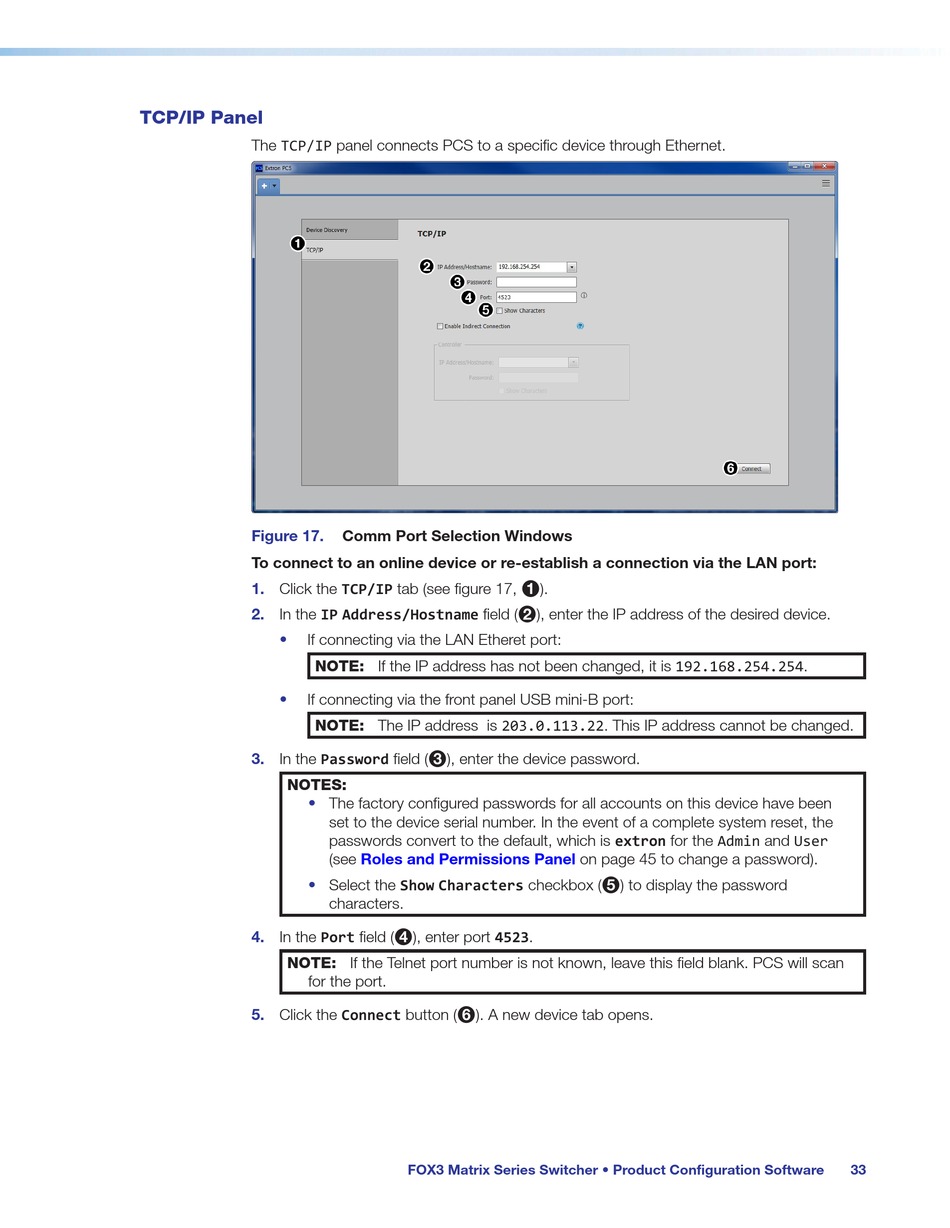

Figure 17.
To connect to an online device or re-establish a connection via the LAN port:
1. Click the TCP/IP tab (see figure 17,
2. In the IP Address/Hostname field (
• If connecting via the LAN Etheret port:
NOTE: If the IP address has not been changed, it is 192.168.254.254.
• If connecting via the front panel USB mini-B port:
NOTE: The IP address is 203.0.113.22. This IP address cannot be changed.
3. In the Password field (
NOTES:
•
•
4. In the Port field (
NOTE: If the Telnet port number is not known, leave this field blank. PCS will scan
for the port.
5. Click the Connect button (
Comm Port Selection Windows
), enter the device password.
3
The factory configured passwords for all accounts on this device have been
set to the device serial number. In the event of a complete system reset, the
passwords convert to the default, which is extron for the Admin and User
Roles and Permissions Panel
(see
Select the Show Characters checkbox (
characters.
), enter port 4523.
4
). A new device tab opens.
6
