Hardware Installation and Reference Guide

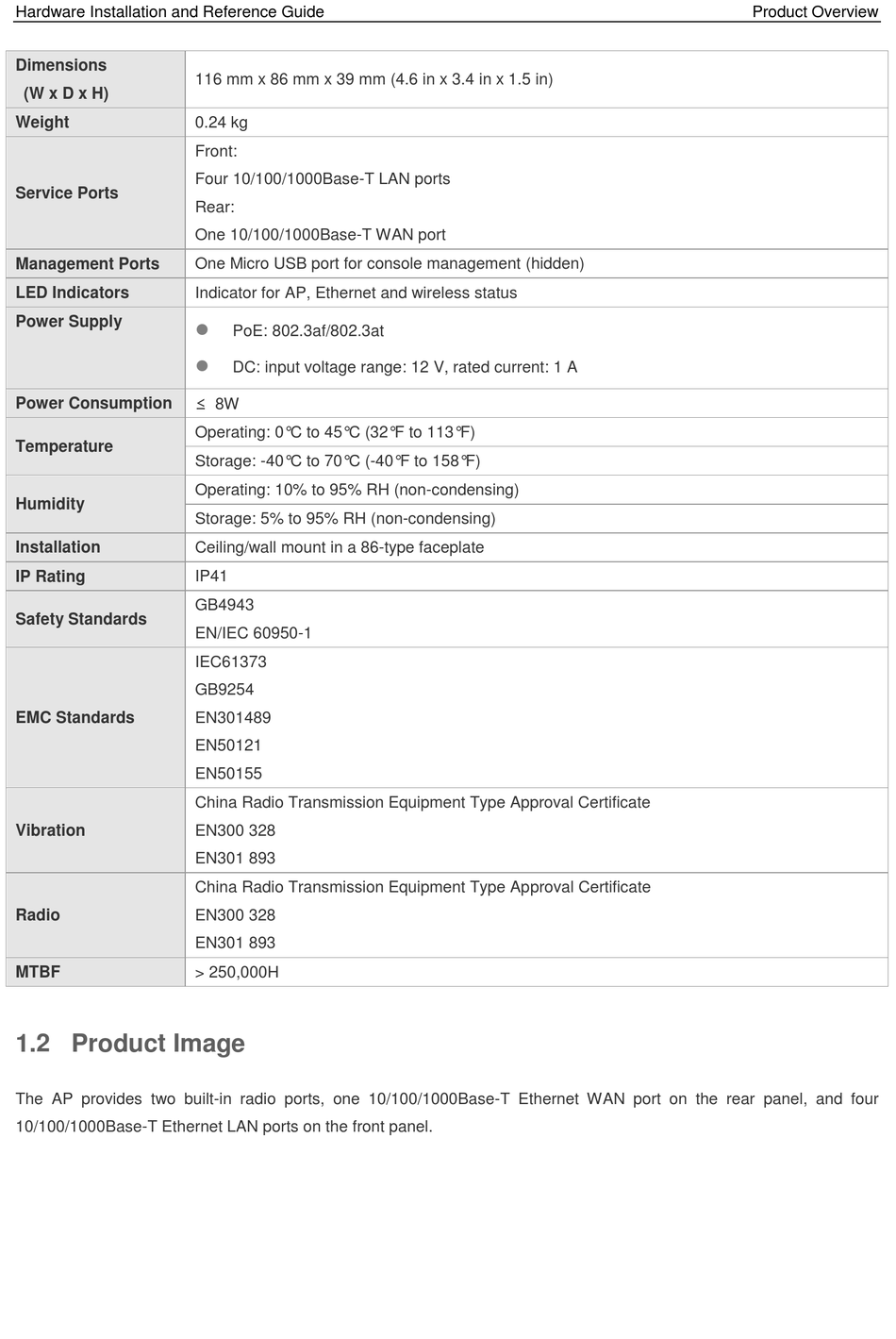

Dimensions
(W x D x H)
Weight
Service Ports
Management Ports
LED Indicators
Power Supply
Power Consumption
Temperature
Humidity
Installation
IP Rating
Safety Standards
EMC Standards
Vibration
Radio
MTBF

1.2 Product Image

The AP provides two built-in radio ports, one 10/100/1000Base-T Ethernet WAN port on the rear panel, and four
10/100/1000Base-T Ethernet LAN ports on the front panel.
116 mm x 86 mm x 39 mm (4.6 in x 3.4 in x 1.5 in)
0.24 kg
Front:
Four 10/100/1000Base-T LAN ports
Rear:
One 10/100/1000Base-T WAN port
One Micro USB port for console management (hidden)
Indicator for AP, Ethernet and wireless status

PoE: 802.3af/802.3at

DC: input voltage range: 12 V, rated current: 1 A
≤ 8W
Operating: 0° C to 45° C (32° F to 113° F)
Storage: -40° C to 70° C (-40° F to 158° F)
Operating: 10% to 95% RH (non-condensing)
Storage: 5% to 95% RH (non-condensing)
Ceiling/wall mount in a 86-type faceplate
IP41
GB4943
EN/IEC 60950-1
IEC61373
GB9254
EN301489
EN50121
EN50155
China Radio Transmission Equipment Type Approval Certificate
EN300 328
EN301 893
China Radio Transmission Equipment Type Approval Certificate
EN300 328
EN301 893
> 250,000H
Product Overview
·
