Hardware Installation and Reference Guide

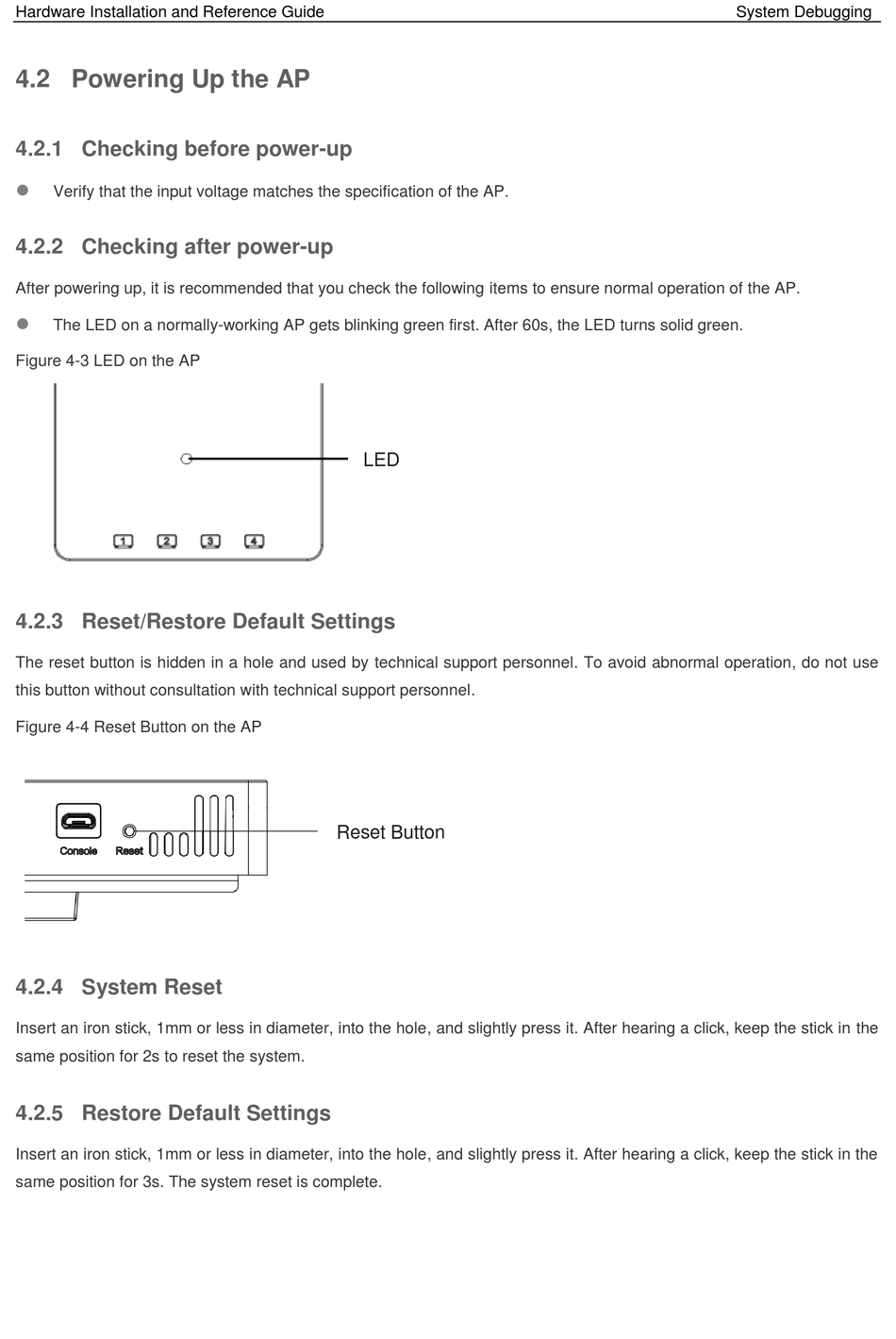

4.2 Powering Up the AP

4.2.1 Checking before power-up

Verify that the input voltage matches the specification of the AP.
4.2.2 Checking after power-up
After powering up, it is recommended that you check the following items to ensure normal operation of the AP.

The LED on a normally-working AP gets blinking green first. After 60s, the LED turns solid green.
Figure 4-3 LED on the AP
4.2.3 Reset/Restore Default Settings
The reset button is hidden in a hole and used by technical support personnel. To avoid abnormal operation, do not use
this button without consultation with technical support personnel.
Figure 4-4 Reset Button on the AP
4.2.4 System Reset
Insert an iron stick, 1mm or less in diameter, into the hole, and slightly press it. After hearing a click, keep the stick in the
same position for 2s to reset the system.
4.2.5 Restore Default Settings
Insert an iron stick, 1mm or less in diameter, into the hole, and slightly press it. After hearing a click, keep the stick in the
same position for 3s. The system reset is complete.
LED
Reset Button
System Debugging
·
