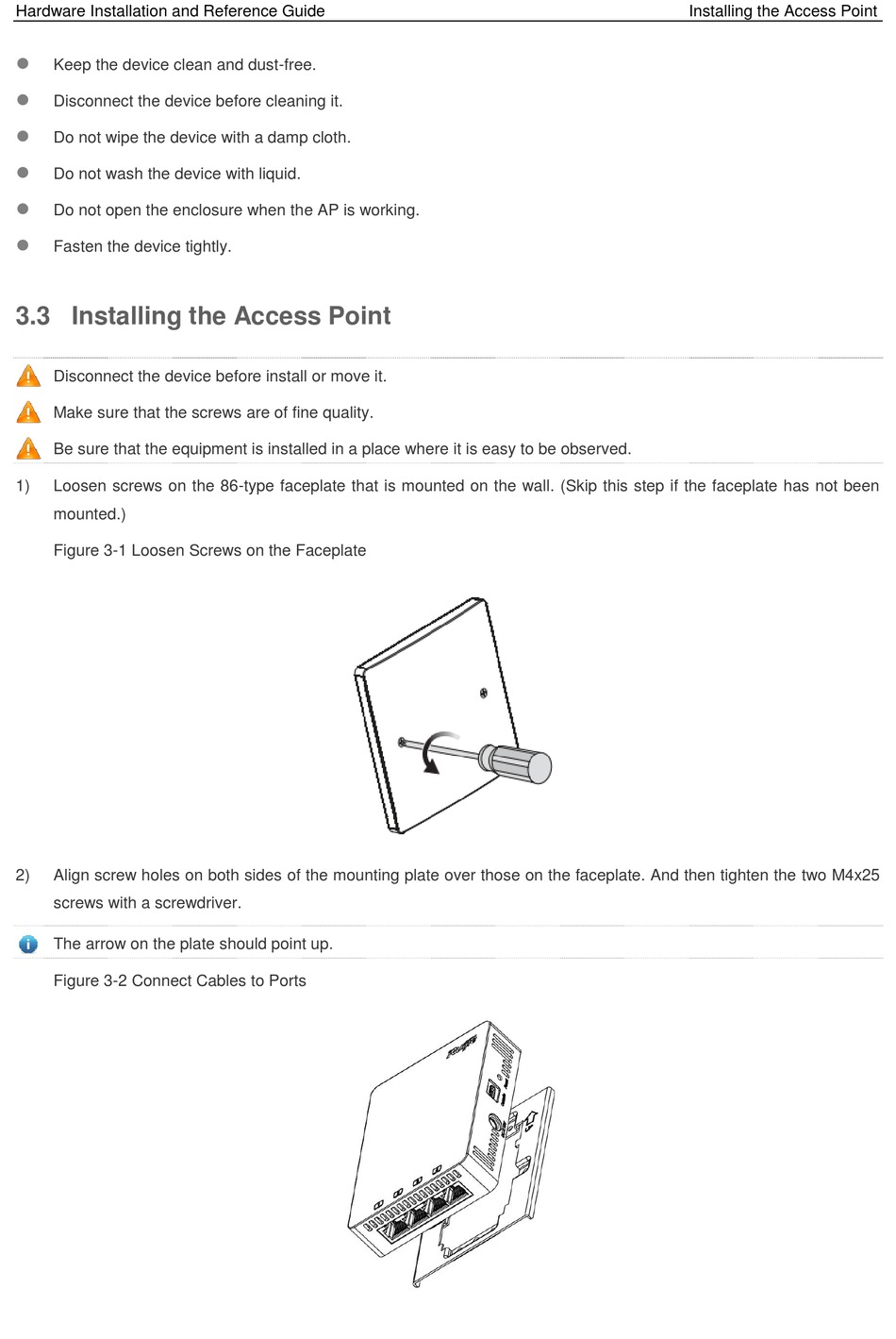

Ruijie RG-AP130(W2) V2 Series Hardware Installation And Reference Manual page 12

Hardware Installation and Reference Guide

Keep the device clean and dust-free.

Disconnect the device before cleaning it.

Do not wipe the device with a damp cloth.

Do not wash the device with liquid.

Do not open the enclosure when the AP is working.

Fasten the device tightly.
3.3 Installing the Access Point
Disconnect the device before install or move it.
Make sure that the screws are of fine quality.
Be sure that the equipment is installed in a place where it is easy to be observed.
1) Loosen screws on the 86-type faceplate that is mounted on the wall. (Skip this step if the faceplate has not been
mounted.)
Figure 3-1 Loosen Screws on the Faceplate
2) Align screw holes on both sides of the mounting plate over those on the faceplate. And then tighten the two M4x25
screws with a screwdriver.
The arrow on the plate should point up.
Figure 3-2 Connect Cables to Ports
Installing the Access Point
·
