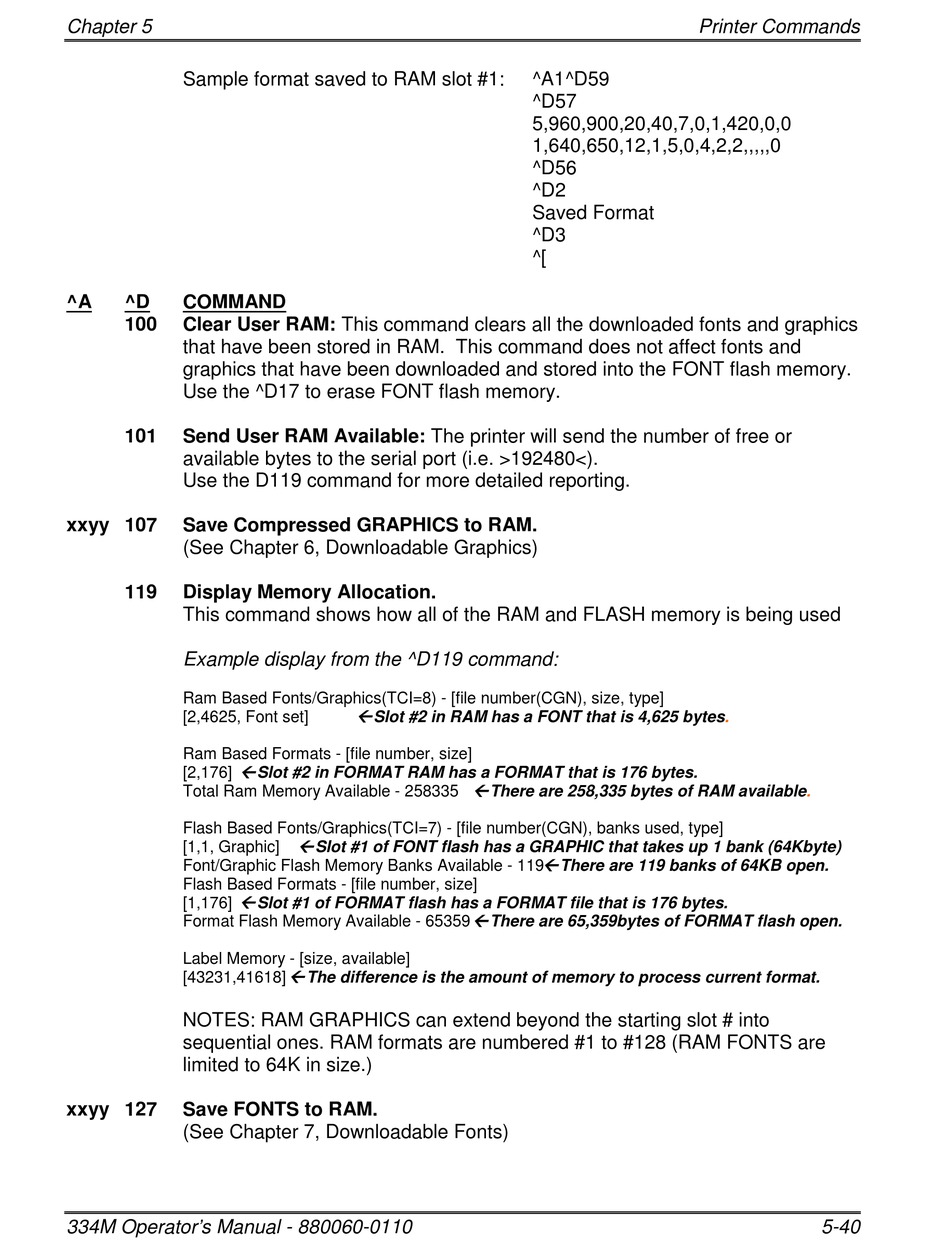

Microcom 334M Operator's Manual page 122

Chapter 5
Sample format saved to RAM slot #1:
^A ^D COMMAND
100 Clear User RAM: This command clears all the downloaded fonts and graphics
that have been stored in RAM. This command does not affect fonts and
graphics that have been downloaded and stored into the FONT flash memory.
Use the ^D17 to erase FONT flash memory.
101 Send User RAM Available: The printer will send the number of free or
available bytes to the serial port (i.e. >192480<).
Use the D119 command for more detailed reporting.
xxyy 107 Save Compressed GRAPHICS to RAM.
(See Chapter 6, Downloadable Graphics)
119 Display Memory Allocation.
This command shows how all of the RAM and FLASH memory is being used
Example display from the ^D119 command:
Ram Based Fonts/Graphics(TCI=8) - [file number(CGN), size, type]
[2,4625, Font set]
Ram Based Formats - [file number, size]
[2,176] ß Slot #2 in FORMAT RAM has a FORMAT that is 176 bytes.
Total Ram Memory Available - 258335 ß There are 258,335 bytes of RAM
Flash Based Fonts/Graphics(TCI=7) - [file number(CGN), banks used, type]
[1,1, Graphic]
Font/Graphic Flash Memory Banks Available - 119 ß There are 119 banks of 64KB open.
Flash Based Formats - [file number, size]
[1,176] ß Slot #1 of FORMAT flash has a FORMAT file that is 176 bytes.
Format Flash Memory Available - 65359 ß There are 65,359bytes of FORMAT flash open.
Label Memory - [size, available]
[43231,41618] ß The difference is the amount of memory to process current format.
NOTES: RAM GRAPHICS can extend beyond the starting slot # into
sequential ones. RAM formats are numbered #1 to #128 (RAM FONTS are
limited to 64K in size.)
xxyy 127 Save FONTS to RAM.
(See Chapter 7, Downloadable Fonts)
334M Operator's Manual - 880060-0110
ß Slot #2 in RAM has a FONT that is 4,625
ß Slot #1 of FONT flash has a GRAPHIC that takes up 1 bank (64Kbyte)
Printer Commands
^A1^D59
^D57
5,960,900,20,40,7,0,1,420,0,0
1,640,650,12,1,5,0,4,2,2,,,,,0
^D56
^D2
Saved Format
^D3
^[
bytes.
available.
5-40
