Microcom 334M Operator's Manual page 97

Printer Commands
Output impedance = 50Kohm
Output low = 0.25VDC Max @ 0.14A Max,
Output impedance = 80ohm minimum
Inductive loads: 12VDC nominal, coil impedance = 80 ohm minimum
P17
INPUTS

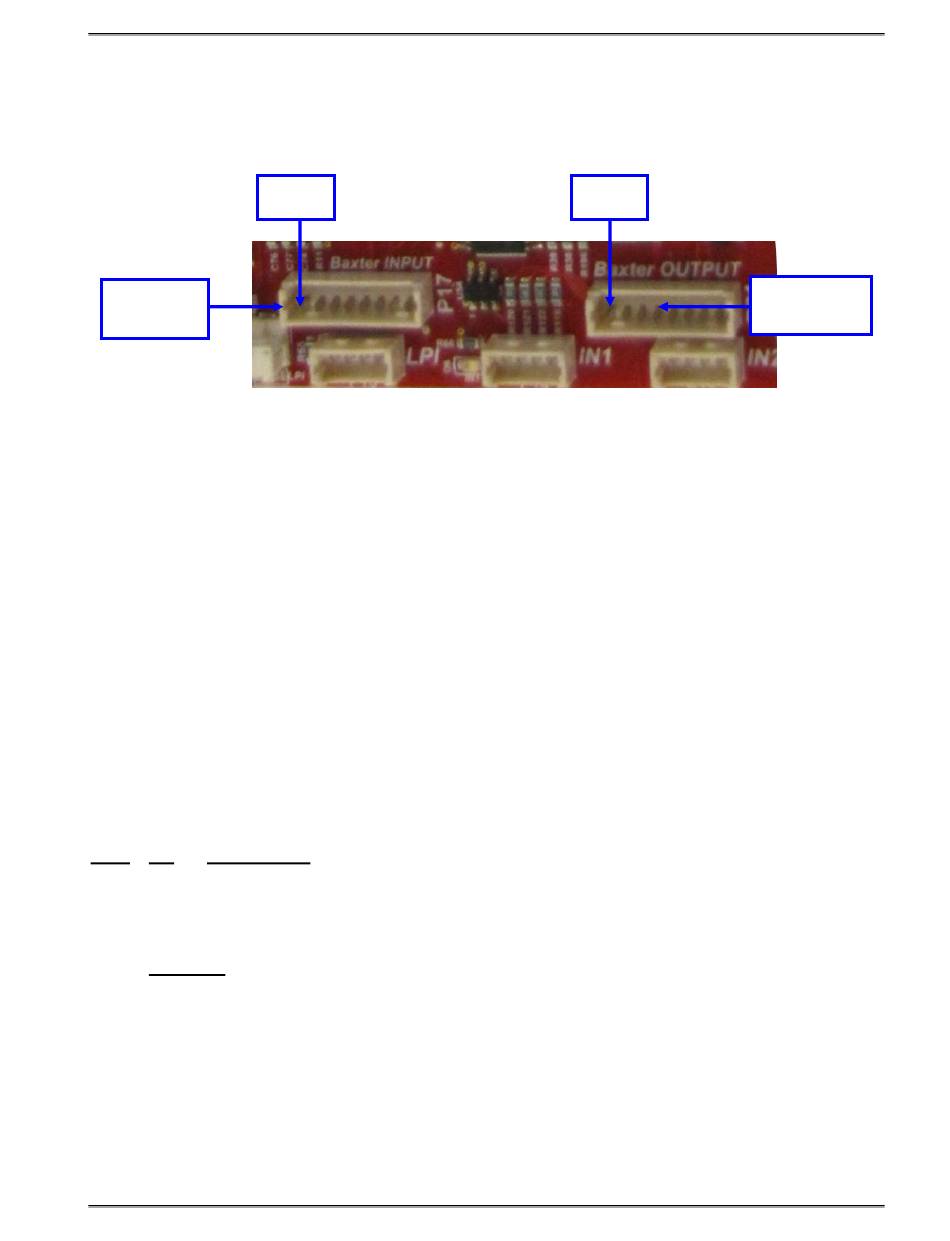

Figure 5-1
7 Select PIC Mode: This command is used to select from the various PIC
modes the printer supports. The PIC code is dedicated to the take-up
motor or the cutter.
0 = Select Cutter PIC mode of operation. When this mode is
selected the printer will power and energize a cutter when the cutter
enable command (^D99 or ^D111) is issued after a print job
1 = Select Take-up PIC mode of operation. When this mode is
selected the printer will energize a DC motor to be used in a rewind or
take up capacity. Unless the printer is properly configured with a take-
up motor and correct take-up motor specific PIC, this mode should not
be enabled because it could potentially damage the cutter.
8 Reserved
5.2.1.7 Software Switch #7
^AB ^D COMMAND
XX 27 Change SW7: Software Switch #7.
^AB12345678 (each bit is represented by a numeric position number)
Position:
123 Reserved
456 Reserved
7 Disable System Parameter Saving: When enabled, the printer will not save
the non-volatile system parameters on power downs. The ^A1^D143 will
continue to save system parameters.
5-15
Pin 1
General Purpose Hardware Inputs and Outputs
1 = Disable system parameter saving
0 = Enable system parameter saving
Pin 1
334M Operator's Manual - 880060-0110
Chapter 5
P17
OUTPUTS
