Sensor Input Ports - Microcom 334M Operator's Manual

Getting Started
LPD Sensor LED
(Flashes red when
label is present)
3.5 Loading Media
The easy- to-release print head makes loading media into the Model 334M printer an easy
process. Follow the instructions below to properly load the media.
1. Feed the media into the paper path, located on the back of the printer, until you feel
resistance.
2. Push and hold the Print Button to feed the media through the printer.
3. Once the media exits the front of the printer, release the Print Button.
The printer is also equipped with an AutoLoad feature. This feature allows the printer to
automatically sense new media as it is inserted into the printer, and automatically feed the
media to provide proper registration of the first label/tag to either the leading edge or a
registration mark. For more details on this feature, please refer to Chapter 5, AutoLoad
Commands.
3-33
LPD Sensor Port Input 1
Input 1 Sensor LED
(Flashes amber when
label is present)

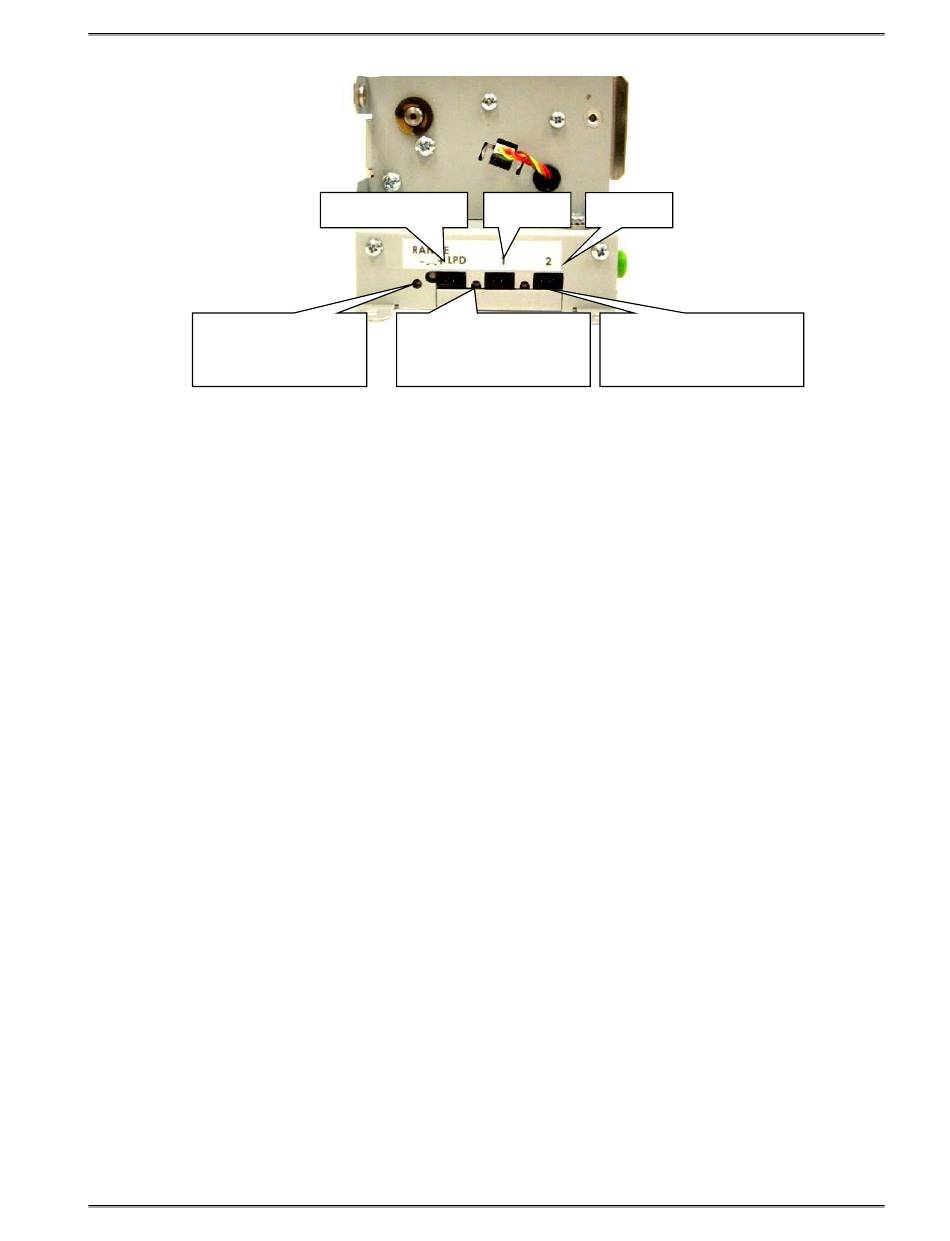

Figure 3-4

Sensor Input Ports

Input 2
Input 2 Sensor LED
(Flashes green when
label is present)
