Chapter 8
TCI VALUE
3
17
22
23
28
29
32
33
51
Table 8-15
The Text/Extended Bar TCI's generate the human readable text and extended bars that are
aligned with the original bar code to create the complete bar code, see Figure 19.
The TCI 32 text/extended symbol, shown in Figure 27, is positioned with the TCI 12 code so
that there is no space between the two. This creates one bar code. TCI's (17, 22, 23, 32,
and 33) that add the extended bars should default the CGN parameter or enter a value of
"1". The fields may then be multiplied using the CMX and CMY parameters to generate the
proper size to match the bar code that the human readable code is intended. The data
used to generate the human readable code should be the same data used to generate the
bar code.
TCI's (3, 28, and 29) that only add the human readable portion may select any CGN for the
font size and multiply it normally. The main purpose of these codes is to add the
automatically calculated check digit character to the human readable code. The data used
to generate the human readable code should be the same data used to generate the bar
code.
334M Operator's Manual - 880060-0110
TCI DESCRIPTION
Text with UPC-A/UPC-E Checksum Digit added.
Text with UPC-E Checksum and Extended Bars added
Text with EAN-13 Checksum and Extended Bars added
Text with EAN-8 Checksum and Extended Bars added
Text with MSI 1 Checksum added
Text with MSI 2 Checksum added
Text with UPC-A Checksum and Extended Bars added
Text with UPC-A with Extended Bars added
Human Readable/Extended Bars TCI's

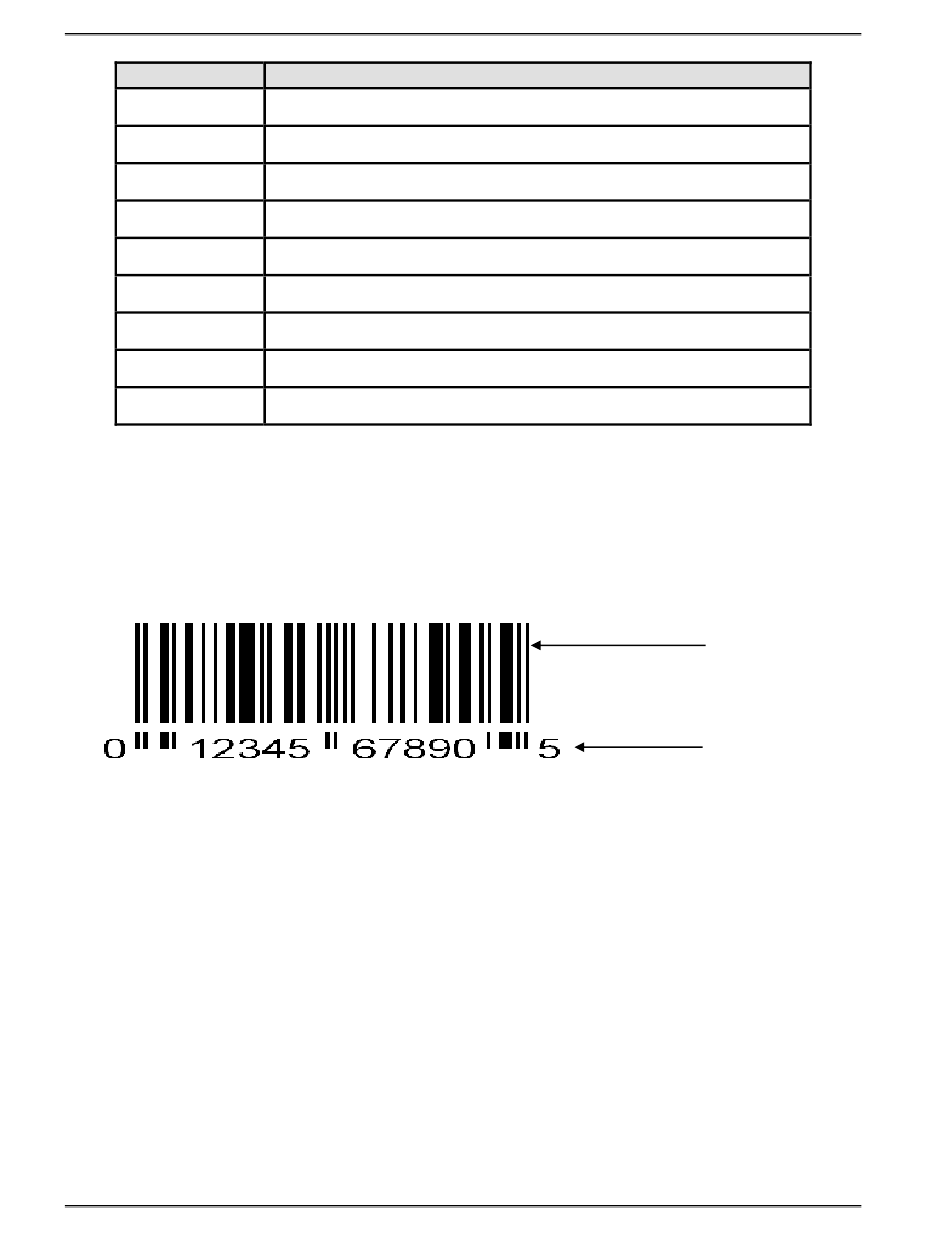

Figure 8-13 UPC-A Text/Extended Bars
EAN128
with Checksum added
Bar Codes
UPC-A
(TCI 12)
UPC-A
(TCI 32)
Text & Extended Bars
8-30
