Getting Started

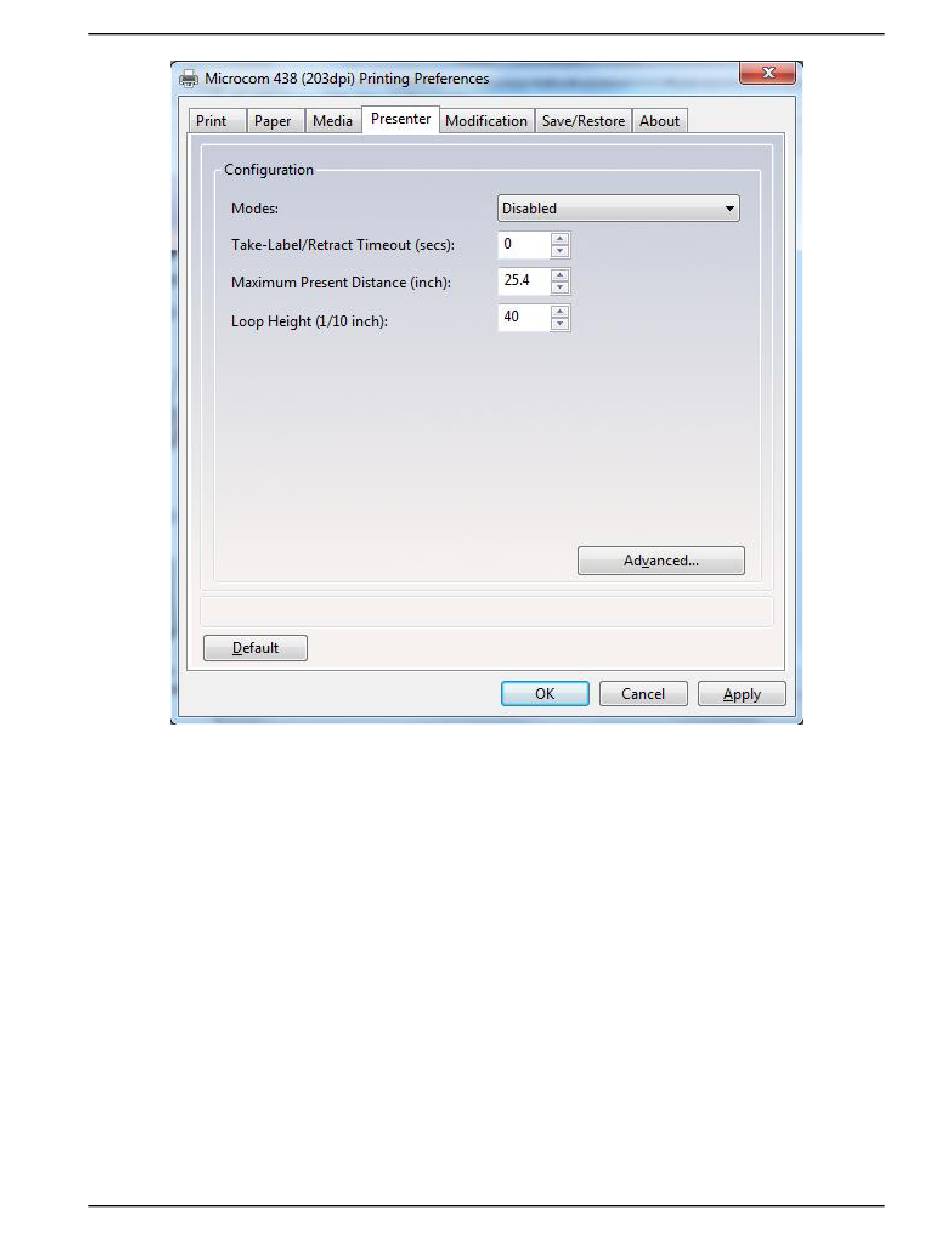

3.4.12.1 Presenter tab - Configuration
The fields listed under the Configuration section control the Presenter operation on printer
model that are compatible with the presenter.
3.4.12.2 Configuration - Modes
This is used to select the mode of the presenter. The valid modes are enabled,
passthrough, and disabled. When selecting Enabled, the printer with presenter would
present the media using the other fields for operation while selecting Passthrough mode will
simply cause the presenter to run while the printer is printing.
3.4.12.2.1 Configuration - Take-Label/Retract Timeout (secs)
This field controls the time that the presenter will present the paper before retracting into the
waste bin.
3.4.12.2.2 Configuration - Maximum Present Distance (inch)
This is the maximum size that the printer will present when using the enabled mode. This
value is in inches.
