III. ASSEMBLY INSTRUCTIONS

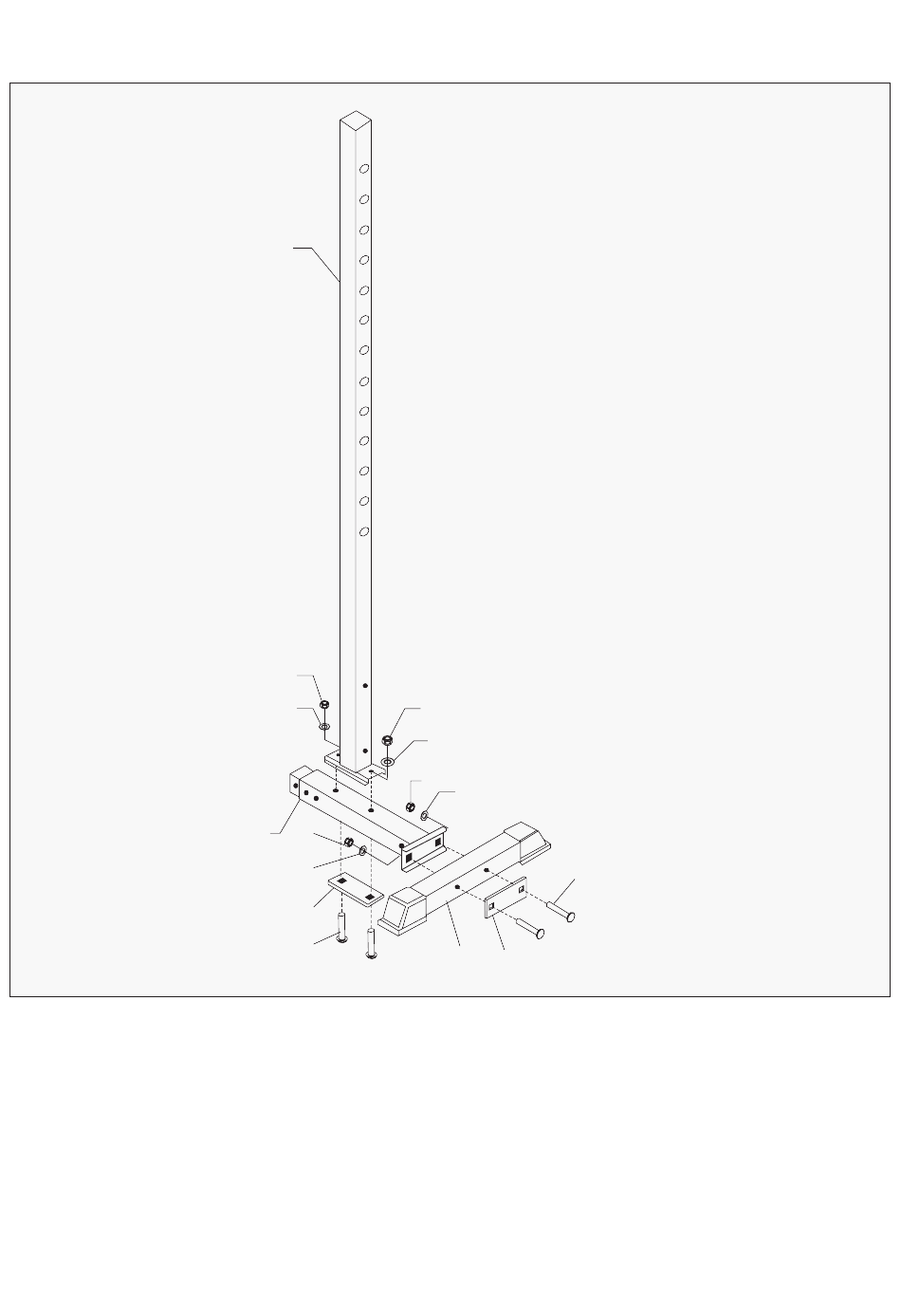

STEP 1
1. Secure the tube (#3) to the tube (#4) with one connector (#15), two carriage bolts M10x70 (#11),
two washers Φ10 (#12) and two M10 nuts (#16).
2. Attach the tube (#13) to the tube (#3), using carriage bolt M10x70 (#11), washer Φ10 (#12)
and nut M10 (#16).
13
16
12
16
3
12
15
11
16
12
16
12
11
4
15
