STEP 2
11
11
1
6
13 12
16
5
5
11
16
12
3
12
16

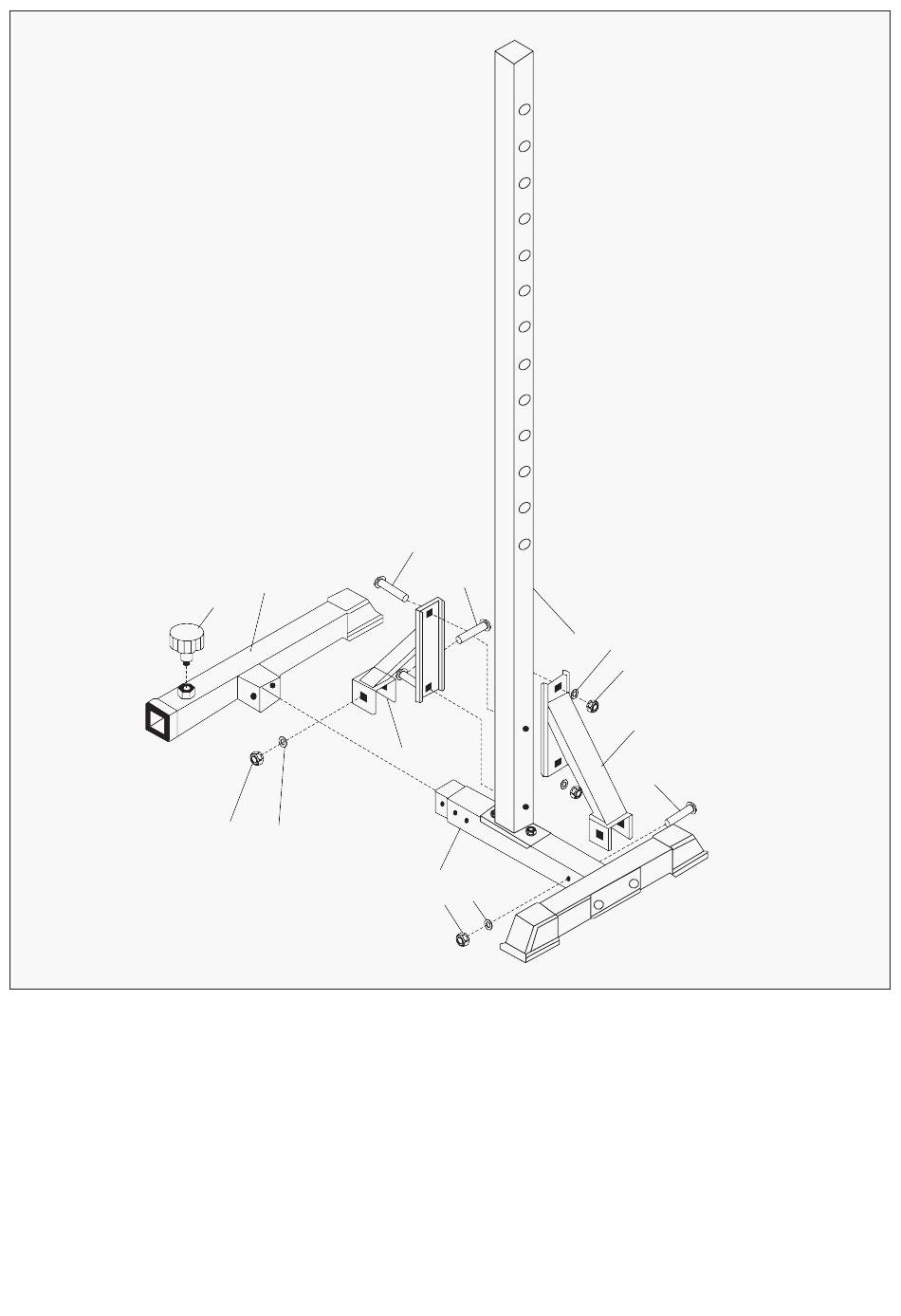

1. Attach tube A (#1) to tube (#3), and connect the two incline tubes (#5) to tubes (#1), (#3) and (#13).
2. Secure with carriage bolt M10x70 (#11), Φ10washer (#12) and M10 nut (#16).
8
