REFERENCE OD4.1-4-S10-BRZ-T KIT

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

Connect the Speaker Cable

1. Pull the 2-conductor speaker cable (not included) to the furthest

speaker location, leaving it connected to the spool near the amplifier.

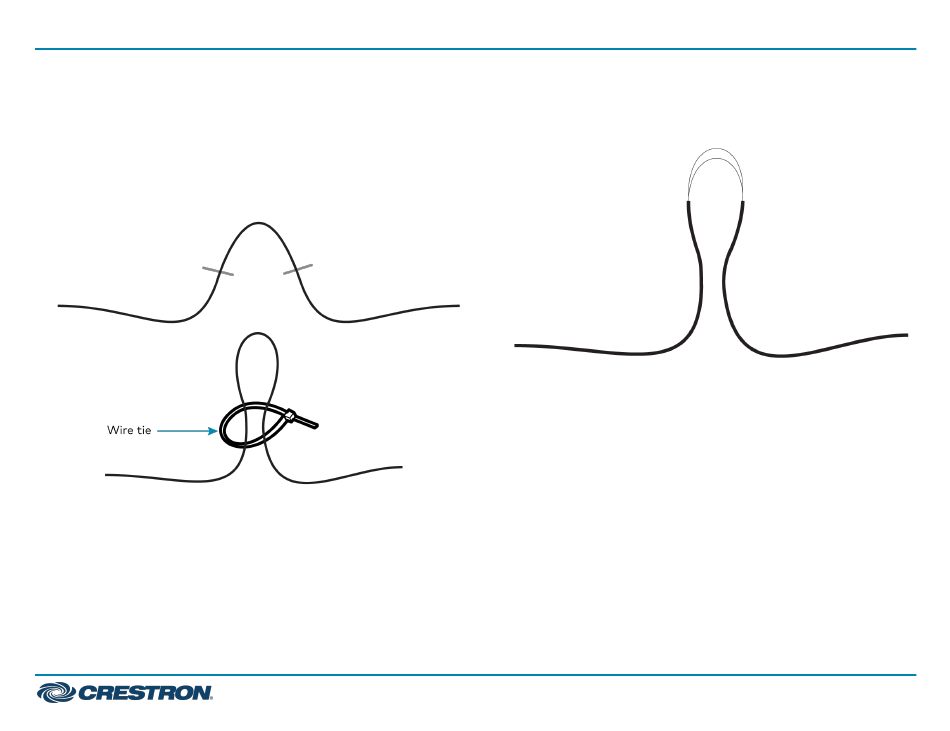

2. Starting at the first speaker and every speaker that follows, create a

loop of cable approximately 6 in. (152 mm) in length and secure the

loop with the wire tie (not included) as shown in figure D.

Figure D

3. Cut the cable at the last speaker location in the daisy chain closest to

the amplifier.

4. Take the spool back to the starting point and pull a second 2-

conductor wire to the furthest speaker location and repeat steps 1

and 2.

5. Use a round cable stripper (not included) to strip the insulation

approximately 0.75 in. (19 mm) of copper as shown in figure E.

Figure E
