REFERENCE OD4.1-4-S10-BRZ-T KIT

Reference 4.1 Landscape Solution, Bronze Textured, Four 4 in. Satellites, One 10 in. Subwoofer

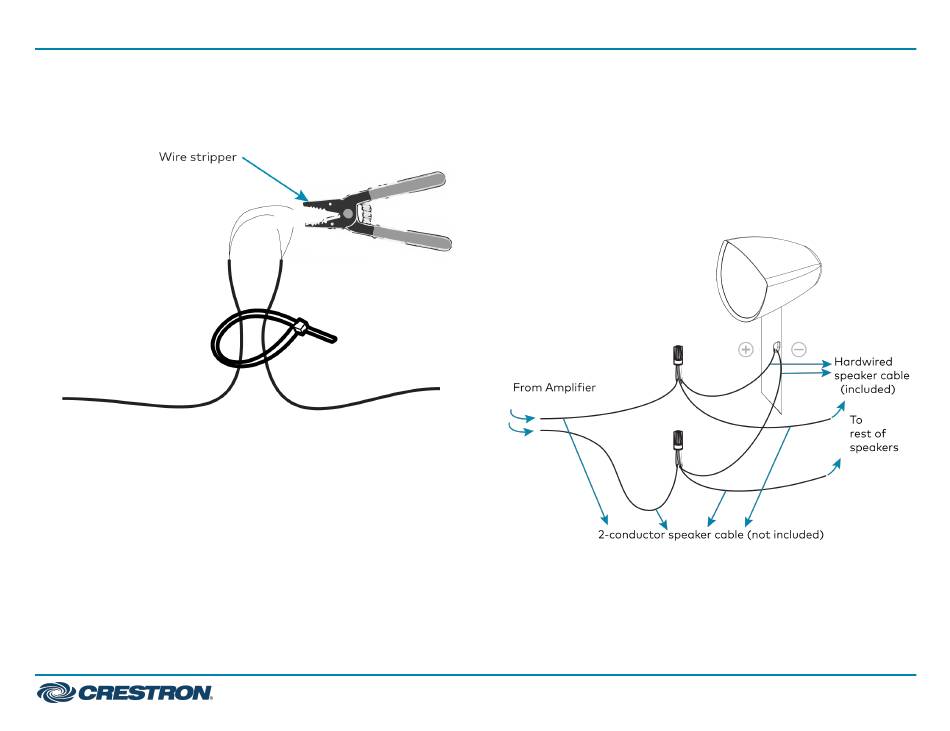

6. Starting with the first speaker, cut the cable loop as shown in figure

Figure F

7. Combine and twist all left channel positive (+) cables together in a

clockwise motion. Next, repeat this step for all the negative (-)

cables.

8. Secure the three positive (+) cables together (cable from the

amplifier, hardwired speaker cable from the first speaker, and cable

to the rest of the speakers) using the wire nuts, ensuring that no

copper is exposed (see figure G). Repeat this step for all the negative

(-) cables.

Figure G
