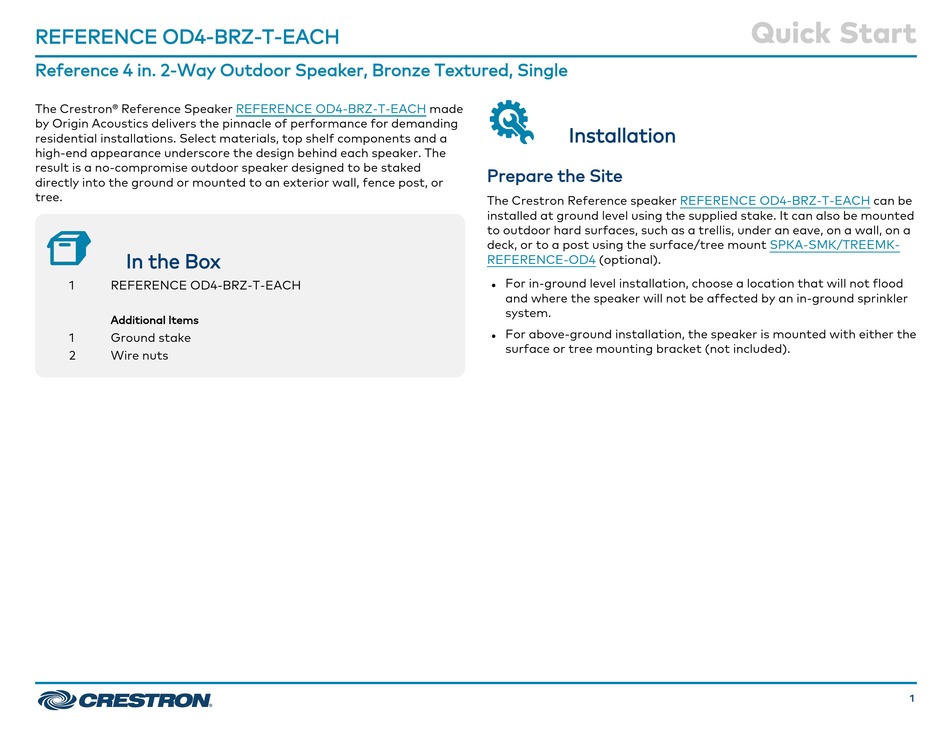

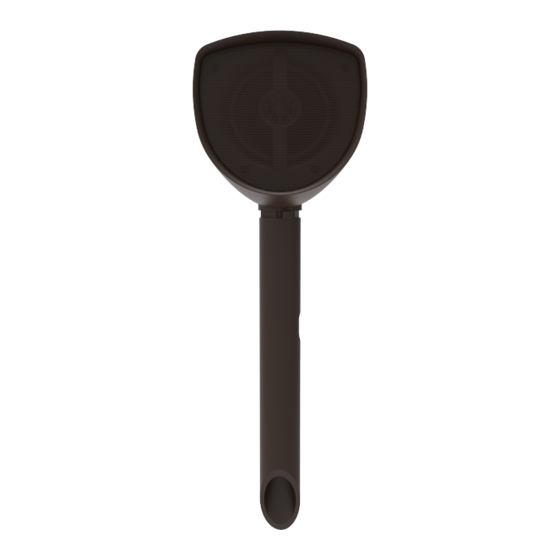

Reference 4 in. 2-Way Outdoor Speaker, Bronze Textured, Single
The Crestron® Reference Speaker
by Origin Acoustics delivers the pinnacle of performance for demanding
residential installations. Select materials, top shelf components and a
high-end appearance underscore the design behind each speaker. The
result is a no-compromise outdoor speaker designed to be staked
directly into the ground or mounted to an exterior wall, fence post, or
tree.
In the Box
1
REFERENCE OD4-BRZ-T-EACH



Additional Items
1
Ground stake
2
Wire nuts
REFERENCE OD4-BRZ-T-EACH
made
Installation
Prepare the Site
The Crestron Reference speaker
installed at ground level using the supplied stake. It can also be mounted
to outdoor hard surfaces, such as a trellis, under an eave, on a wall, on a
deck, or to a post using the surface/tree mount
REFERENCE-OD4
(optional).

For in-ground level installation, choose a location that will not flood
l
and where the speaker will not be affected by an in-ground sprinkler
system.

For above-ground installation, the speaker is mounted with either the
l
surface or tree mounting bracket (not included).
Quick Start
REFERENCE OD4-BRZ-T-EACH
SPKA-SMK/TREEMK-
can be
1
