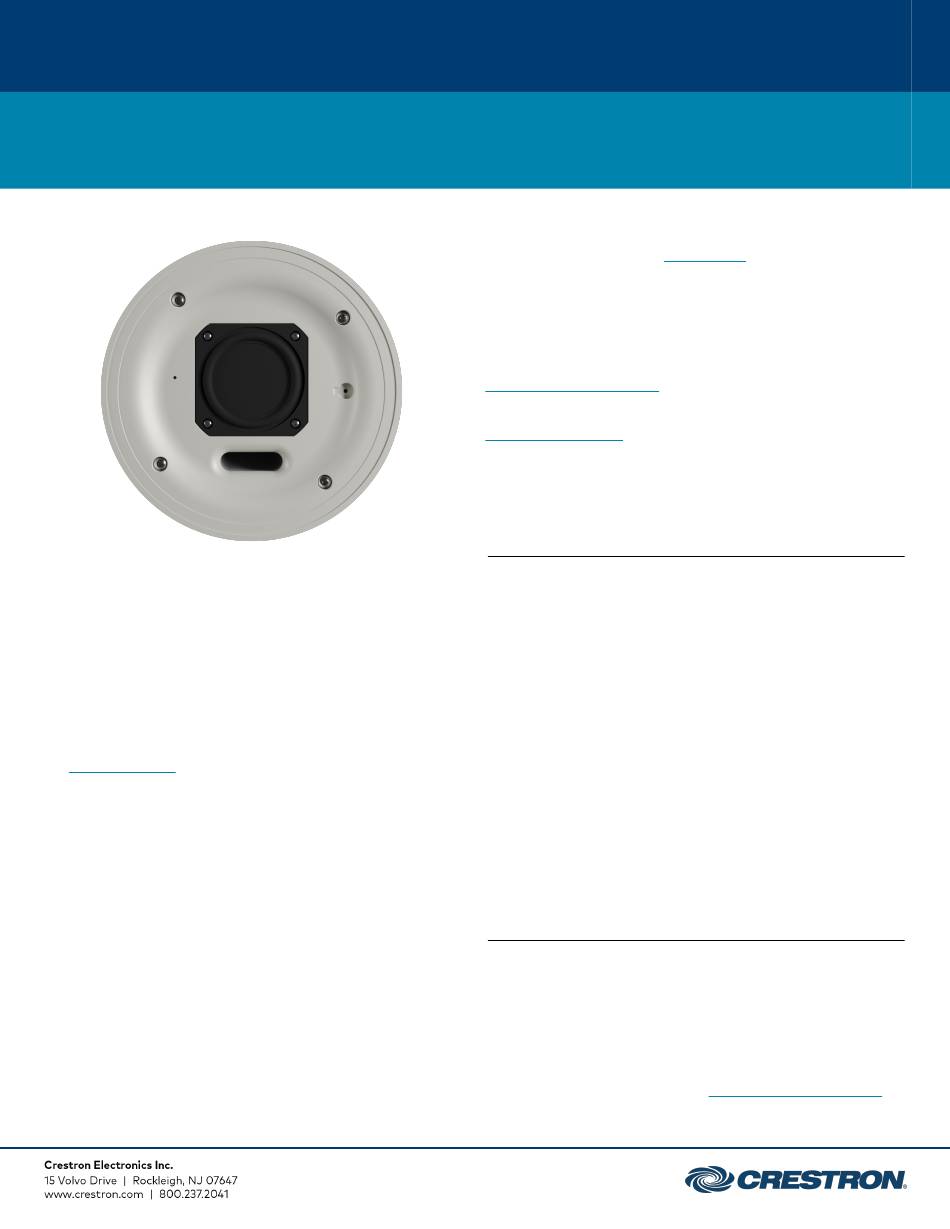

SAROS IC4P-W

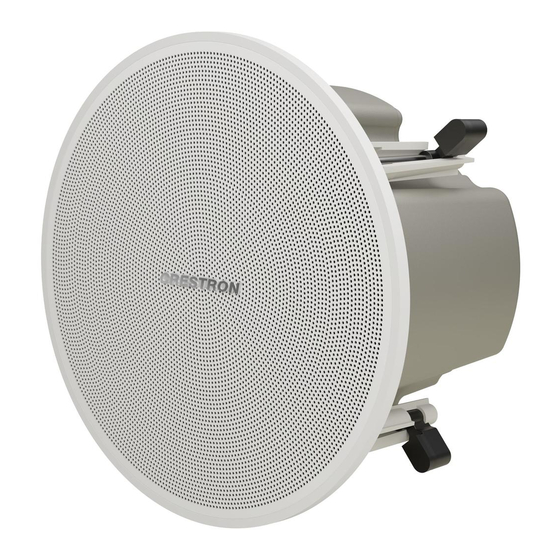

Saros® 3 in. Passive Full-Range In-Ceiling Speaker, White,
Textured
Balanced Mode Radiator (BMR) transducer offers enhanced
l
clarity and wider dispersion than a typical conical driver
Clean, contemporary grille design
l
Two-step toggle clamps for quick and easy installation
l
Includes tile bridge for installation in a drop-tile ceiling
l
90 Hz to 30 kHz frequency response
l
170° coverage for speech content, 140° coverage for music
l
The SAROS IC4P-W in-ceiling speaker with a Balanced Mode
Radiator (BMR) transducer offers broad coverage angles and
simple installation. A single 2.83 in. (72 mm) BMR transducer
drives the entire 90 Hz to 30 kHz frequency range, with
coverage angles exceeding the capabilities of a traditional
conical, pistonic woofer and concentric tweeter.
Simple and Clean Installation
The SAROS IC4P-W is designed for quick and easy installation
and years of reliable performance. Its unobtrustive and
contemporary grille achieves an appearance well-suited for
use in restaurants, retail spaces, houses of worship,
universities, and office buildings. Installing the grille requires
no hardware or tools, utilizing powerful magnets to hold it in
place.
Mounting the speaker is facilitated using swiveling mounting
dogs integrated into the enclosure. The mounting dogs
feature two positions to accommodate standard and extra
thick surfaces up to 2.4 in. (61 mm). A tile bridge is included to
provide proper support when installed in a typical drop-tile
ceiling. The tile bridge is adjustable to enable off-center
speaker positioning, and can be folded to fit through the
speaker cutout. A rigging point is also provided on the speaker
enclosure for securing to the building structure using an
optional safety tether kit (SPKA-ST-15, sold separately).
Plenum Rated
The speaker is housed in an integral metal back can, which
meets the requirements of UL® 2043 for installation in a
plenum space. The wiring connections are accessible behind a
rear cover panel. Two mutually exclusive inputs are available,
an RJ-45 connector to receive signal from the outputs of a
SAROS DM-NAX-IC4A-W (sold separately) and a two pin
terminal block connector to receive signal from an external
audio amplifier. For a plenum rated patch cable, use
CBL-ZUMLINK-P-25 (sold separately) or a third-party CAT5
cable 32 ft. (10 m) or shorter.
Specifications
Features & Performance
Transducer 2.83 in. (72 mm) Balanced Mode Radiator
(BMR)
Frequency 90 Hz to 30 kHz (±3 dB)
Response
Sensitivity 86 dB @ 1 W/1 m
Coverage 170° conical (speech, up to 4 kHz);
140° conical (music, up to 8 kHz)
BMR Power 25 W
Handling
25 W, connected to an external amplifier
BMR Max Power
via 2-pin audio input;
Output
10 W, connected to the SPEAKER-LEVEL
OUTPUT of a SAROS DM-NAX-IC4-A;
6.5 W, connected to the SPEAKER-LEVEL
OUTPUT of a SAROS DM-NAX-IC4-A
with one other SAROS IC4-P connected;
4.5 W, connected to the SPEAKER-LEVEL
OUTPUT of a SAROS DM-NAX-IC4-A
with two other SAROS IC4-P connected
Connectors
(1) 2-pin 5 mm detachable terminal block;
2-Pin Audio Input
Speaker input (alternate);
For use with an external amplifier;
Impedance: 8 Ohms (7.4 Ohms nominal);
Maximum Wire Size: 12 AWG;
Do not connect both inputs
simultaneously
(1) 8-pin RJ-45 connector, female;
RJ-45 Audio
For use with
Input
only
SAROS DM-NAX-IC4A-W
