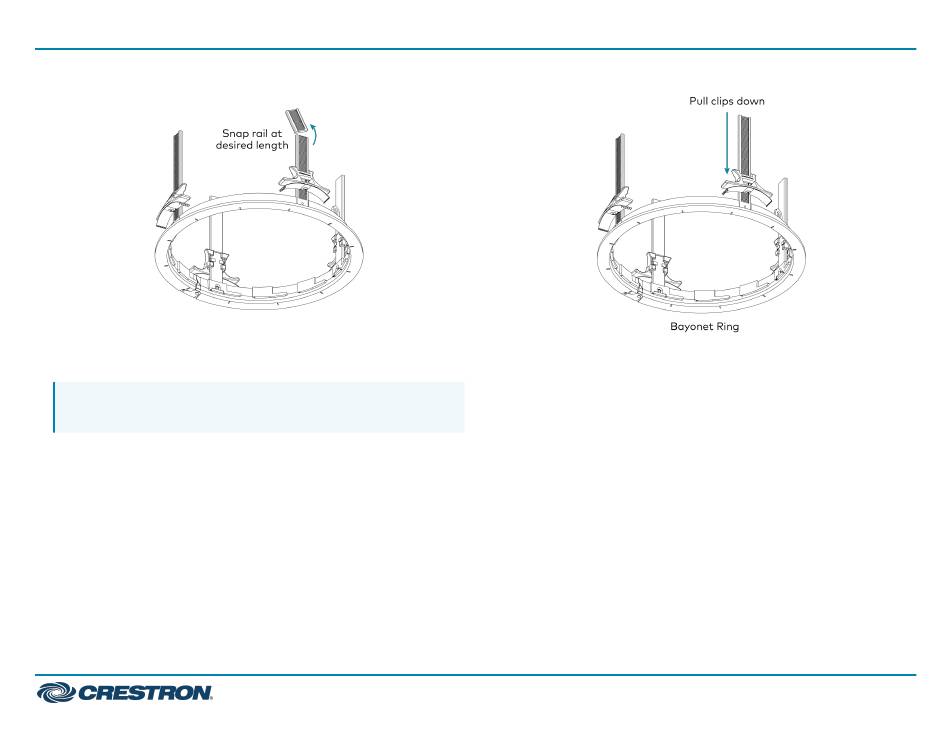

3. Insert the bayonet ring into the hole in the ceiling by bending the rails
inward.
NOTE: Bend the bayonet ring rails gently while inserting the ring
to avoid damage.
4. Reach inside the bayonet ring and pull the clips down to the ceiling
surface so that the bayonet ring is firmly in place, but not too tight. If
the bayonet ring needs to be removed, reach inside and push the
release tabs in to reset the clips and the bayonet ring can now be
taken out.
Install the Speaker Cable
Run the speaker cable (not included) from the audio source to the
speaker location, observing all appropriate local codes. Strip the ends of
the speaker cable approximately 0.25 in. to 0.50 in. (~6 mm to ~12 mm)
and twist the strands.

Connect the Speaker Cable

Connect the speaker cable to the terminal block (if the speaker sort
name includes "-AW") or spring terminals (if the sort name does not
include "-AW"). Make sure that the positive lead is inserted into the
terminal block connection marked + or the red spring terminal, and the
negative lead is inserted into the terminal block connection marked - or
the black spring terminal.
